XTC/3 Operating Manual
Entering a film number between 1 and 32 next to a layer number, followed by the
ENTER key, will place the desired film in that layer. If a film number was previously
entered, it will be replaced. Entering a 0 will delete the specified film and shift all
following films up. It is possible to insert a film into an existing film sequence by
cursoring to the desired layer and selecting the right arrow key. This action will shift
the layer list down to accommodate the added layer. Using the keyboard, input the
film number to be inserted followed by ENTER. Pressing the CLEAR button will
cancel the layer insertion. If the film is named, the film name will appear in the list,
otherwise the film number will appear.
4.4 General Parameters

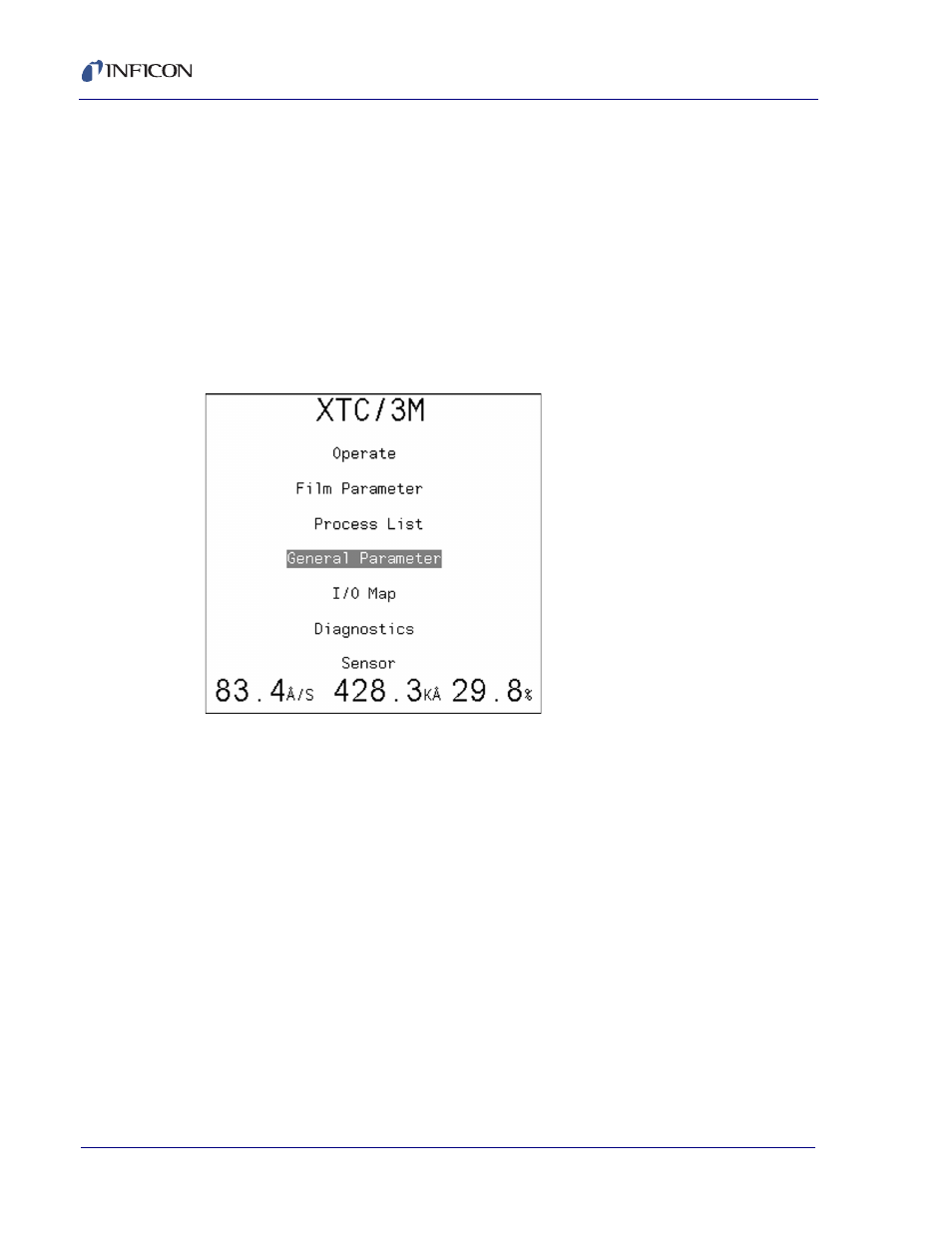

Figure 4-12 Main Menu screen XTC/3M
NOTE: The Process List line is not present in XTC/3S.
The General Parameter display appears after pressing the MENU key, then
cursoring down to General Parameters and pressing MENU.
The General Parameter screen is subdivided into the following screens:
 Process
 Hardware
 Comm(unications) Info
The ▲ or ▼ arrow keys are used to move from parameter to parameter.
The ◄ or ► keys are used to move from selection panel to parameter panel
and back. In most cases, the value can be updated using the TOGL key to toggle
between a series of choices. For a few parameters, the numeric keypad and
ENTER key are used.
If the parameters are locked, the L Lock or R Lock message will be displayed
in the upper right corner. The parameter values will be displayed, but cannot
be changed.
