XTC/3 Operating Manual

4.5.2 XTC/3M Inputs

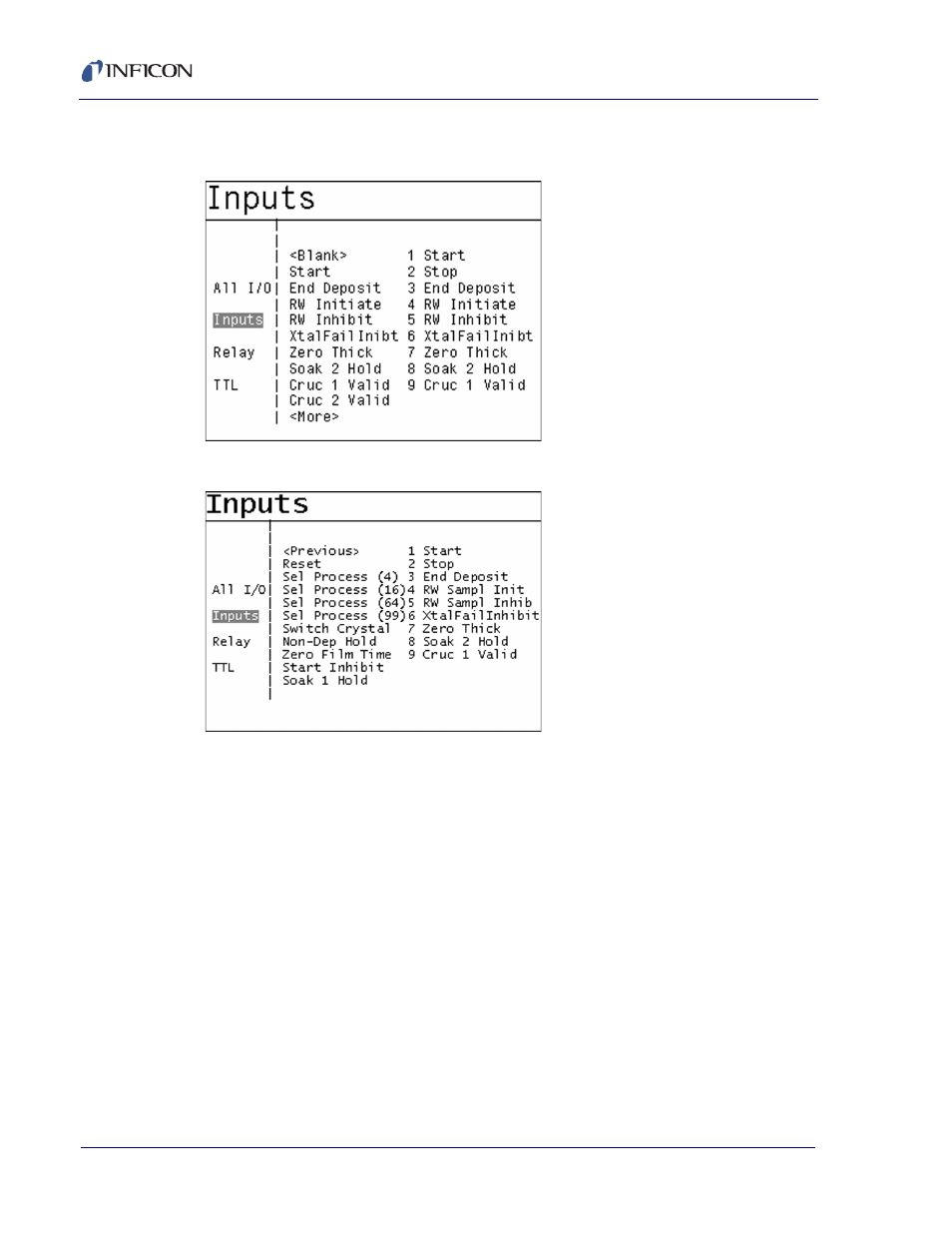

Figure 4-22 Inputs screen 1 (XTC/3M only)

Figure 4-23 Inputs screen 2 (XTC/3M only)

In XTC/3M, this screen allows modification of the 9 inputs. On the right side of the
parameter panel will be a column of the inputs as they are currently programmed.
There will be blanks if the input is not defined. For the complete list of input
functions available for XTC/3M, see Table 3-3 on page 3-21.
The scrollable list of allowed input functions will be displayed on the left side of the
parameter panel. The

▲▼◄►

keys will cursor through this list. Entering a

number (1-9), followed by the ENTER key, will assign the selected input function to
that input number. Any number of inputs may be assigned to the same function,
except Sel Process (XX) which is limited to a single instance.
The

◄►

arrow keys will go back and forth between the Inputs choices and the

selection panel. The process selected via inputs will become active during
Idle End of Process and Ready.
NOTE: If an input is used to select an empty process, the selection will be ignored.

Process to Run will become the active process. If a layer or layers are
subsequently inserted into this previously empty process, its selection by
digital input will not be accepted until a Reset is done.
