XTC/3 Operating Manual
LOCK CODE . . . . . . . . . 1 to 9999
The L Lock lock code is set by moving to the Lock Code XXXX and entering the
desired code of up to 4 digits. If no lock code is desired, no entry needs to be made.
Entering a 0 will clear a previously set lock code and allow open access to all
parameters. (Note, if there was previously a lock code programmed, the code must
first be entered on the Menu screen, with the cursor positioned on Lock Code.)
The lock code can also be cleared by depressing the CLEAR key on power-up,
however, if no lock code has been programmed, this will reset all parameters to
their default values.
4.4.2 Hardware Parameters

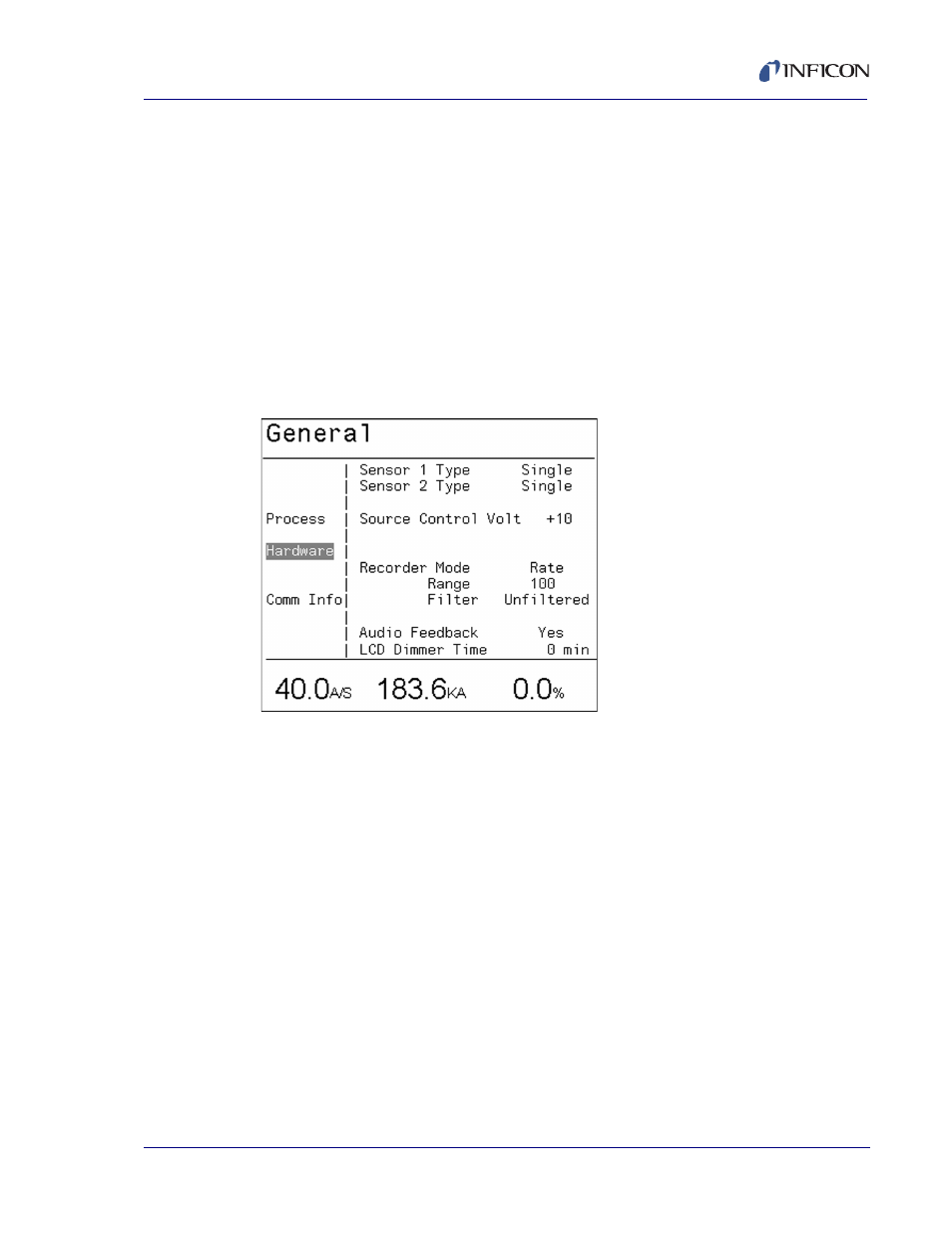

Figure 4-15 XTC3/M Hardware screen
SENSOR 1 TYPE. . . . . . Single, CrystalTwo, CrystalSix, Crystal12, Rotary,
Dual Head. Press the TOGL key to move through the
choices. Default is Single.
SENSOR 2 TYPE. . . . . . Single, CrystalTwo, CrystalSix, Crystal12, Rotary.
Press the TOGL key to move through the choices.
Default is Single.
NOTE: When a multi-position sensor type has been chosen, an output must be
selected for the Xtal Switch 1 or Xtal Switch 2 function to enable
switching to the next position. For XTC/3S, see
section 3.6.8.6, XTC/3S
Sensor Shutter / CrystalSwitch Output, on page 3-30 . For XTC/3M, see
section 4.5.3, XTC/3M Outputs, on page 4-29 .
SOURCE CONTROL VOLT . . . . . . . 0 to +10, 0 to -10, 0 to +5,
0 to -5, 0 to +2.5, 0 to -2.5
Press the TOGL key to move through the
choices. Default is 0 to -10.
