XTC/3 Operating Manual
3.3.3 Film Name Display

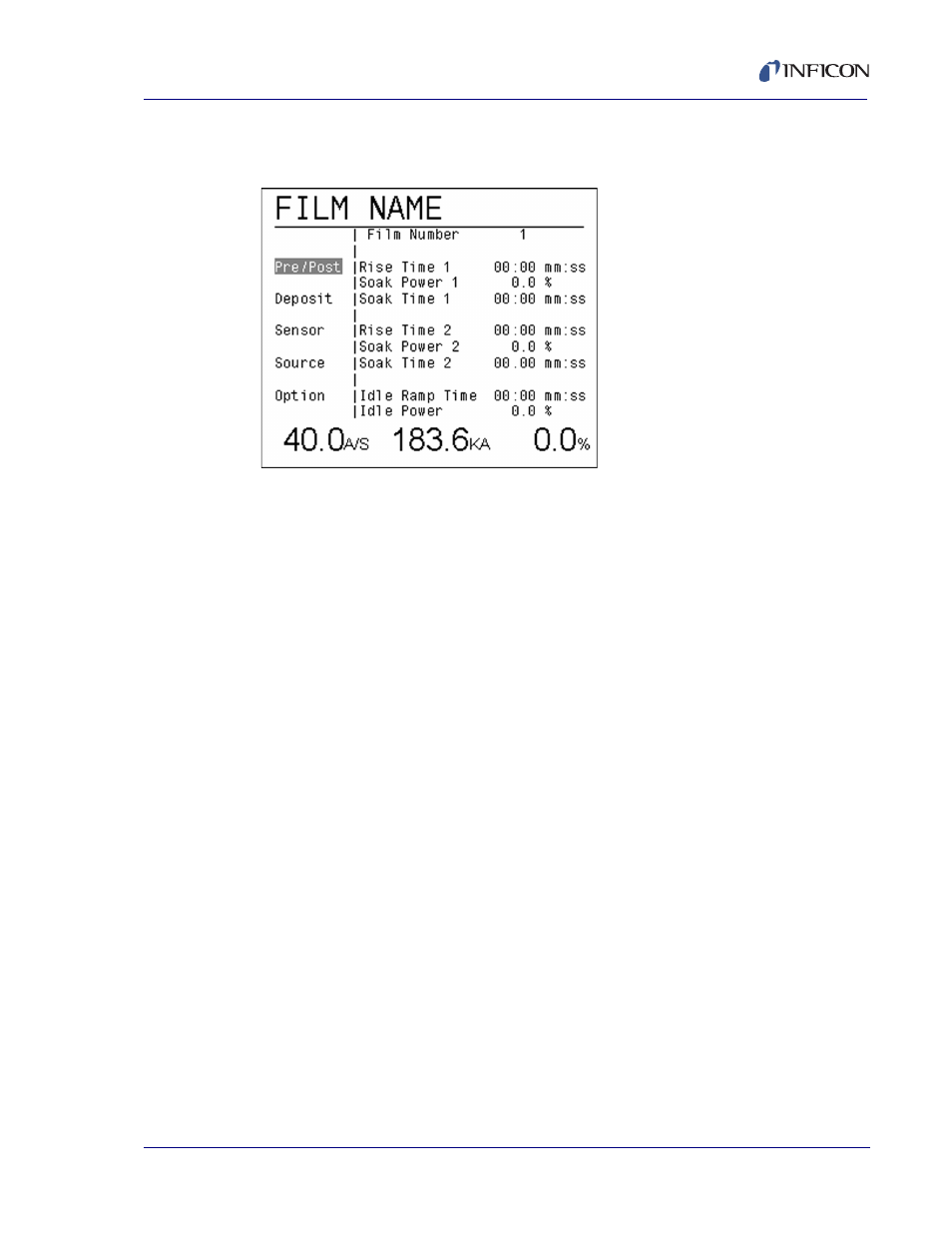

Figure 3-6 Film Name display
The Film Name display shows the film parameters and their values. Thirty-two films
may be programmed in XTC/3M; nine in XTC/3S. Pre/Post Deposit, Deposit,
Sensor, Source and Option screens are accessed from the Film Name screen.
If the parameters are locked, the L Lock or R Lock message will be displayed in
the upper right corner. With the parameters locked, the film number may still be
changed to allow viewing of other films.
See section 4.2 on page 4-3 for programming details.
