PAPER FACTS
XEROX DOCUPRINT 180 LPS OPERATOR GUIDE 3-13
Remember the following:
• Remove any damaged sheets.
• Load the paper with the package wrapper seam side up.
•
For trays 3, 4, 5 and 6 only, load paper with curl side up if paper
curl is detected. If no paper curl is detected, load paper with the
wrapper seam side down.
• If using tab stock, remove any deformed, bent, or damaged
stock.
•
If using predrilled paper, fan thoroughly and remove any loose
paper plugs
• Ensure the paper is loaded into the front, right corner of the
tray, as indicated by the green arrow on the bottom of the tray
and by the arrows on the instruction label (see figure 3-5).

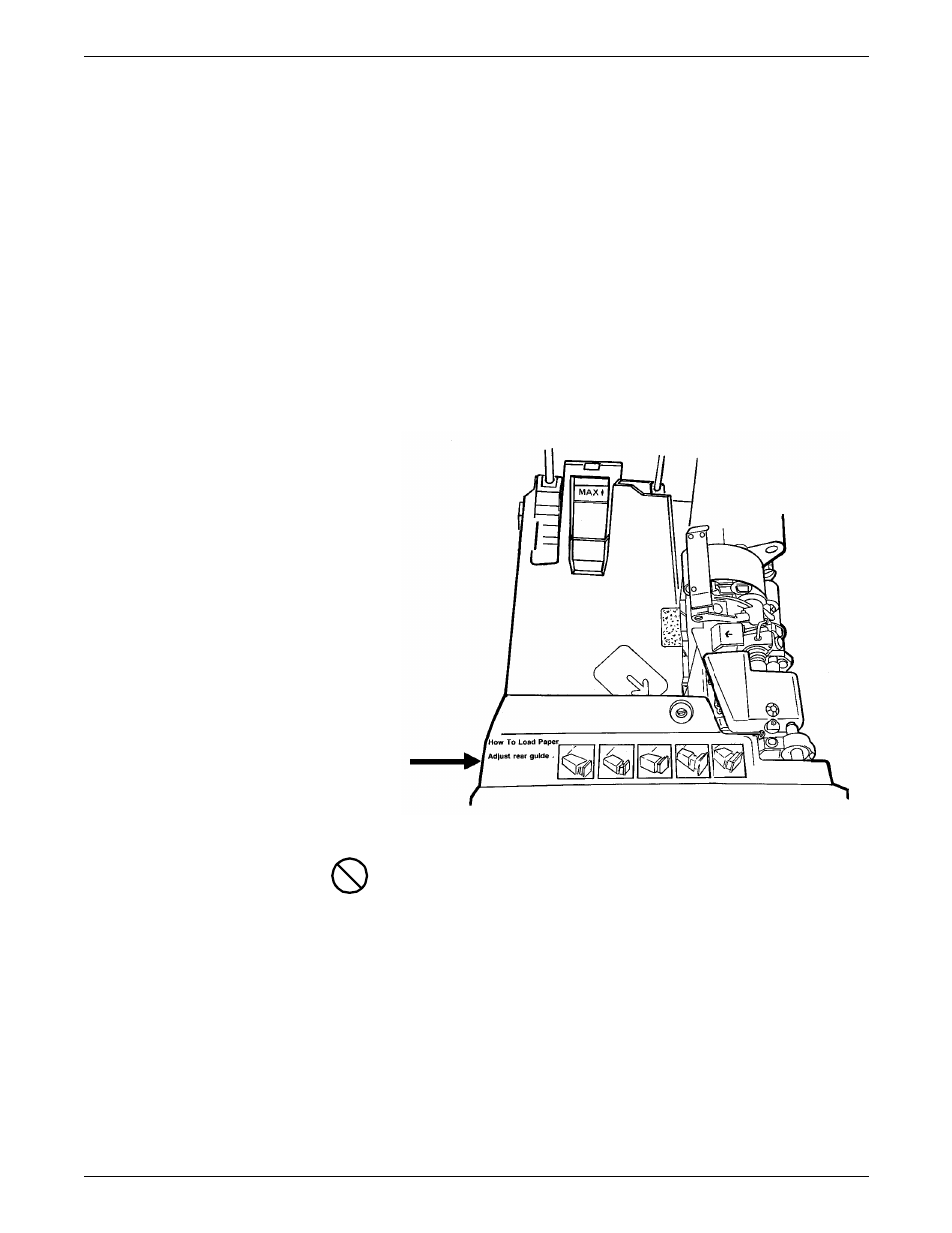

Figure 3-5. Arrows on the bottom of the tray and the
instruction label
Caution: Do not load above the MAX line shown on the paper
guide (see figure 3-6).
