SYSTEM CONTROL TASKS
4-18 XEROX DOCUPRINT 180 LPS OPERATOR GUIDE
Console log
Use this task to display, print, save, or empty the current console log
or to display, delete, or print a saved console log from the PC UI hard
disk. This task also allows you to convert the console log to another
file format, such as ASCII. The console log allows you to review
system information that can help you determine the reason and any
actions to take when the DocuPrint180 LPS appears to have a
problem. The following items are contained in the console log:
• All commands sent to the system controller
• All messages received from the system controller
•
PC UI internal messages
• Dialog messages
• Debug information.
Console Log task through windows Perform the following steps:
Step 1. Select “Console Log” from the System Control menu to open the
Console Log window (see figure 4-14).

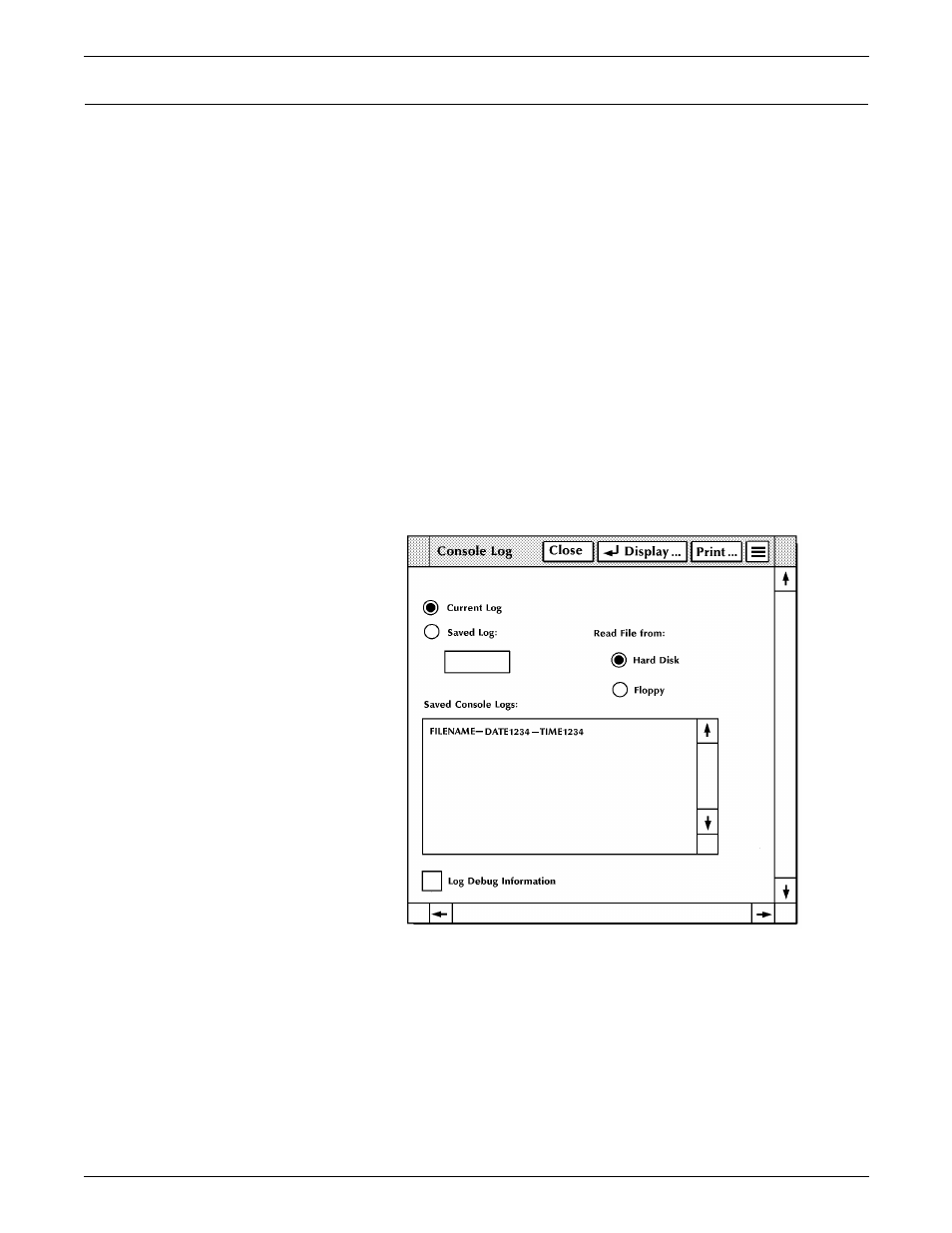

Figure 4-14. Console Log window
