SYSTEM OVERVIEW OF THE XEROX DOCUPRINT 180 LPS

XEROX DOCUPRINT 180 LPS OPERATOR GUIDE

1-5

1/4 inch cartridge tape drive

The 1/4 inch cartridge tape drive, also referred to as QIC (quarter
inch cartridge), is used for performing sysgen, disk save and restore
(DSR), and file loading/backup for online system configuration.
(Refer to the “1/4 inch cartridge tape drive procedures” section of the
“Offline printing tasks” chapter for instructions on loading and
unloading cartridge tapes.)

Printer components

The printer is the part of the LPS that processes the electronic

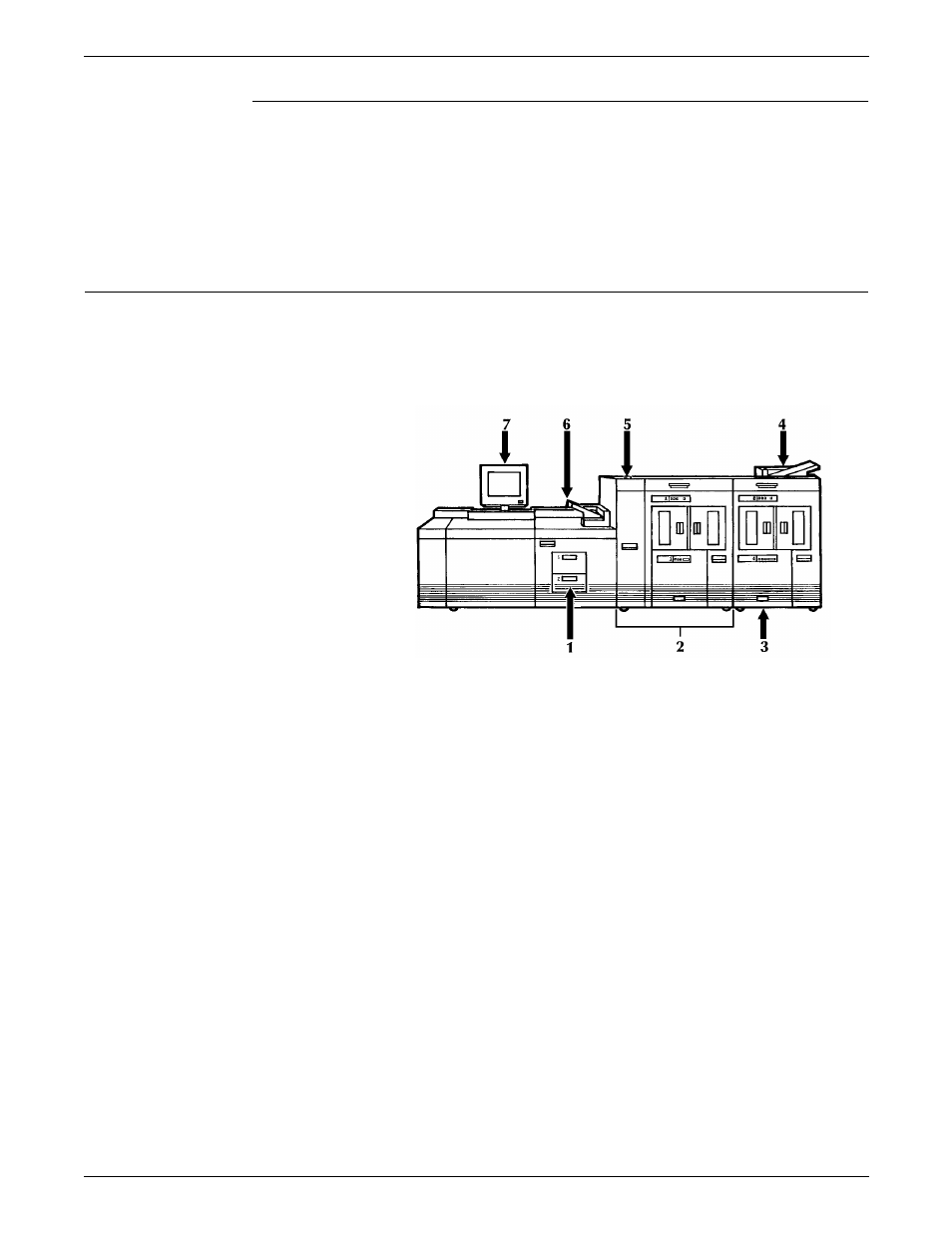

images and produces the printed report. Figure 1-5 shows the printer
and its various components.

Figure 1-5.

Xerox DocuPrint 180 printer

1

Processor feeder trays

2

Inverter feeder/stacker module (containing inverter, high-
capacity feeder, and high-capacity stacker)

3

Feeder/stacker module (containing additional high-
capacity feeders and high-capacity stackers)

4 Purge

tray

5

Attention light

6

Sample tray

7

Printer control console
