SYSTEM OVERVIEW OF THE XEROX DOCUPRINT 180 LPS
1-4 XEROX DOCUPRINT 180 LPS OPERATOR GUIDE
System user interface
The system user interface consists of a PC containing a screen, a
keyboard, a mouse, a mouse pad, and an optional mouse tray.
Figure 1-3 shows the PC User Interface (UI).

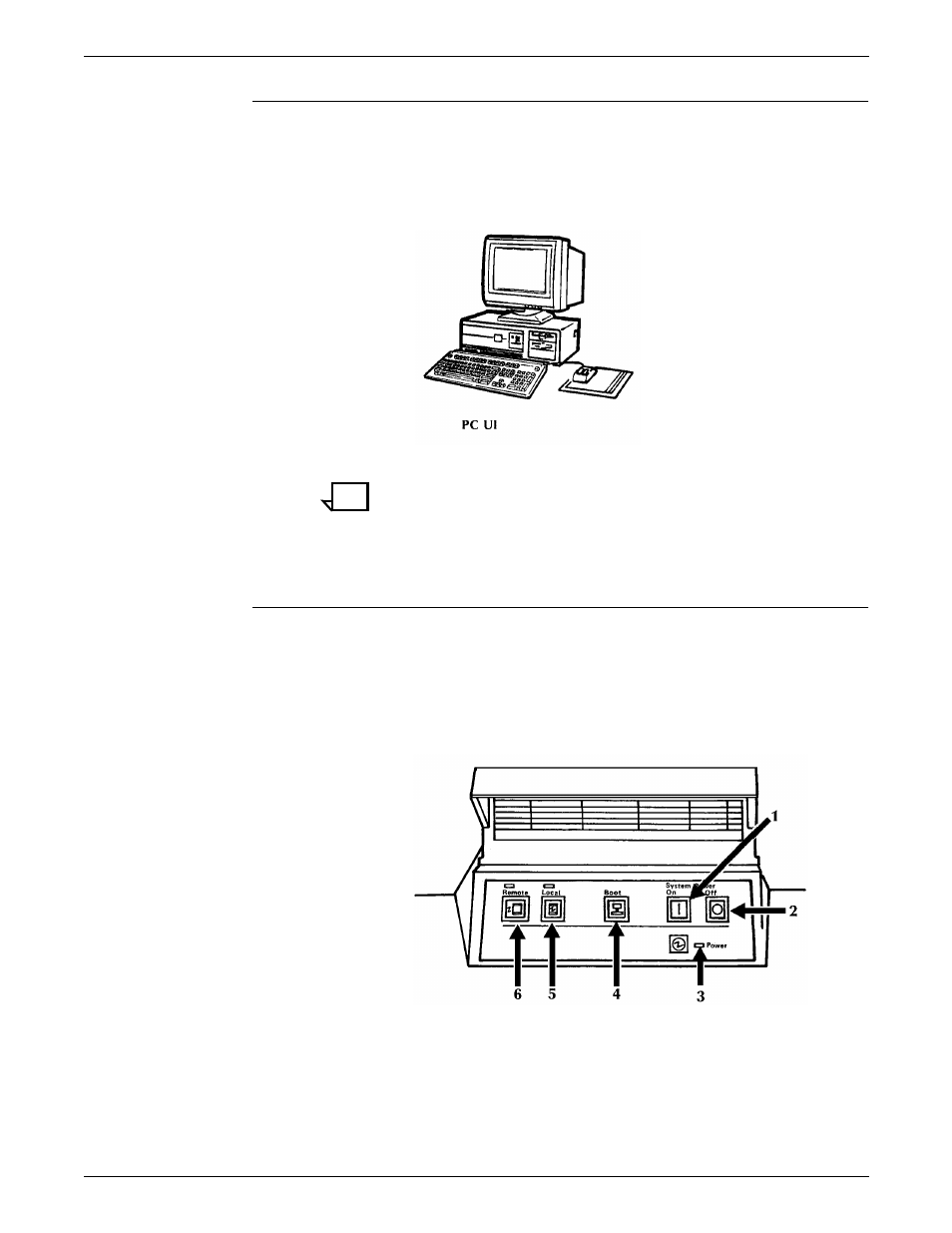

Figure 1-3. PC UI
Note: Several PC UI types are available. Your PC UI may look
different from the one illustrated in figure 1-3.
For detailed information on the system user interface, refer to the
“Using the PC UI” chapter.
Operator control panel
The operator control panel allows you to power the printer on and off,
boot the operating system software, and switch the LPS between
remote and local operation. Figure 1-4 shows the operator control
panel.
Figure 1-4. Operator control panel
1 Power On switch
2 Power Off switch
3 Power On indicator
4 Boot switch
5 Local switch and indicator
6 Remote switch and indicator
