Page 300

PROBLEM SOLVING TASKS

12-20

XEROX DOCUPRINT 180 LPS OPERATOR GUIDE

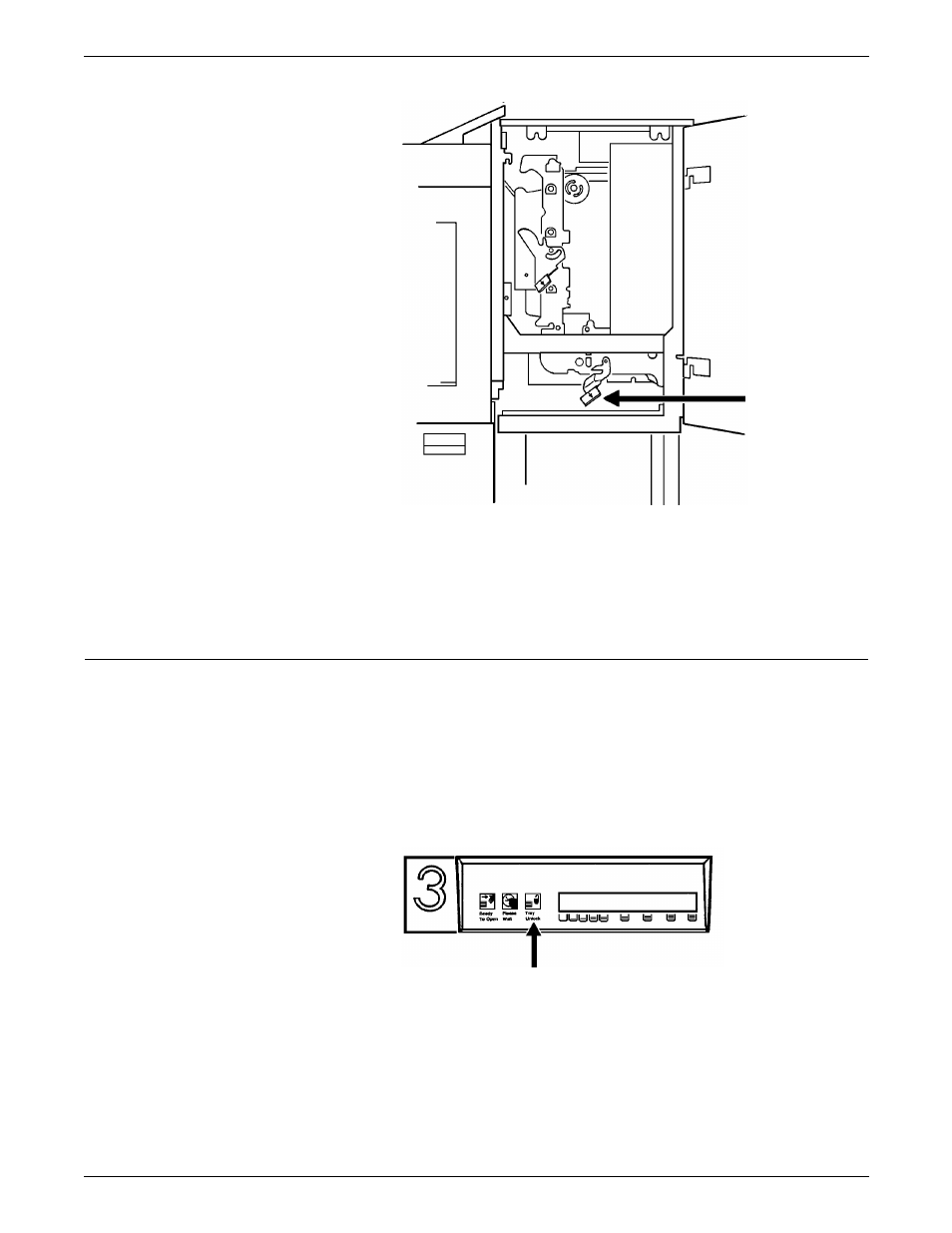

Figure 12-27.Area 20

Step 6.

Remove any paper in the exposed area.

Step 7.

Press the green lever down and to the left until the latch catches.

Step 8.

Close the Bypass Transport Module door.

Clearing a misfeed (feeder tray fault)

To clear a misfeed:

Step 1.

Go to the feeder tray indicated by the message and display on the
printer control console.

Step 2.

If the Ready to Open indicator is not lit, press the Tray Unlock button
located on the feeder tray control panel (see figure 12-28).

Figure 12-28.Tray Unlock button

Step 3.

When the Ready to Open indicator lights, open the feeder tray. Pull
the tray all the way out for best results.

Step 4.

For the processor feeder trays, press the green lever to unlatch the
paper feeder assembly (see figure 12-29).
