OFFLINE PRINTING TASKS
XEROX DOCUPRINT 180 LPS OPERATOR GUIDE 7-25
Load a 1/4 inch cartridge tape
To load a 1/4 inch cartridge tape:
Step 1. Press the Release button. The door opens partially.
Step 2. Manually open the door completely. Insert the cartridge into the feed
slot with the label facing to the left.
Step 3. Close the door. The tape is automatically loaded and positioned at
BOT.
The LED indicator is green when the tape is operating properly. If the
indicator is flashing red, call for service.

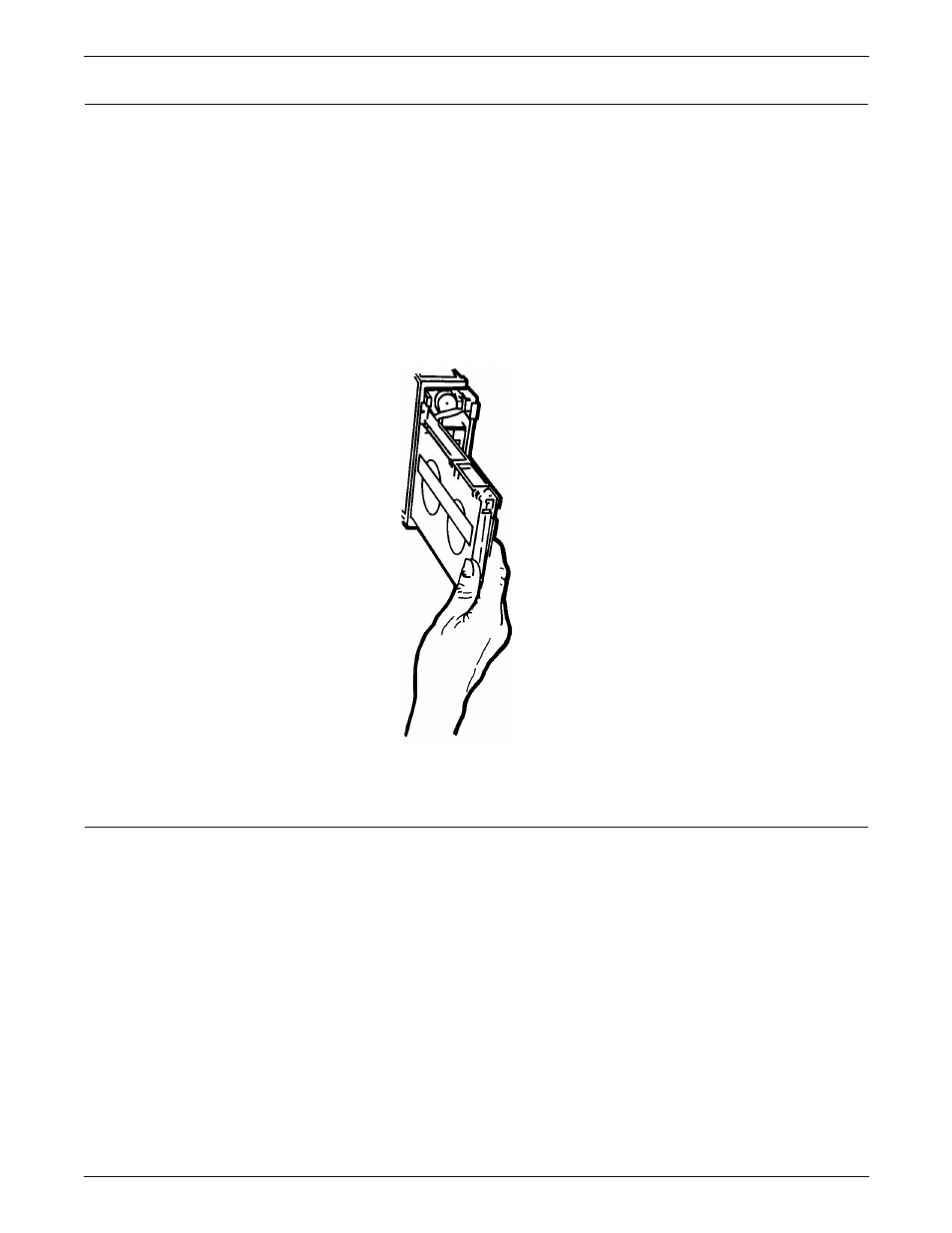

Figure 7-34. Inserting a cartridge
Unload a 1/4 inch cartridge tape
To unload a 1/4 inch cartridge tape:
Step 1. Use the Rewind Tape task to rewind the tape. (Refer to the “Rewind/
unload tape” section of this chapter.)
Step 2. Press the Release button to open the door. Lower the door manually.
Step 3. Carefully remove the cartridge.
Step 4. Close the door to prevent dust accumulation.
