USING THE PC UI
2-8 XEROX DOCUPRINT 180 LPS OPERATOR GUIDE
PC UI desktop
The PC UI desktop is the basic display screen. The desktop is shown
in figure 2-5.

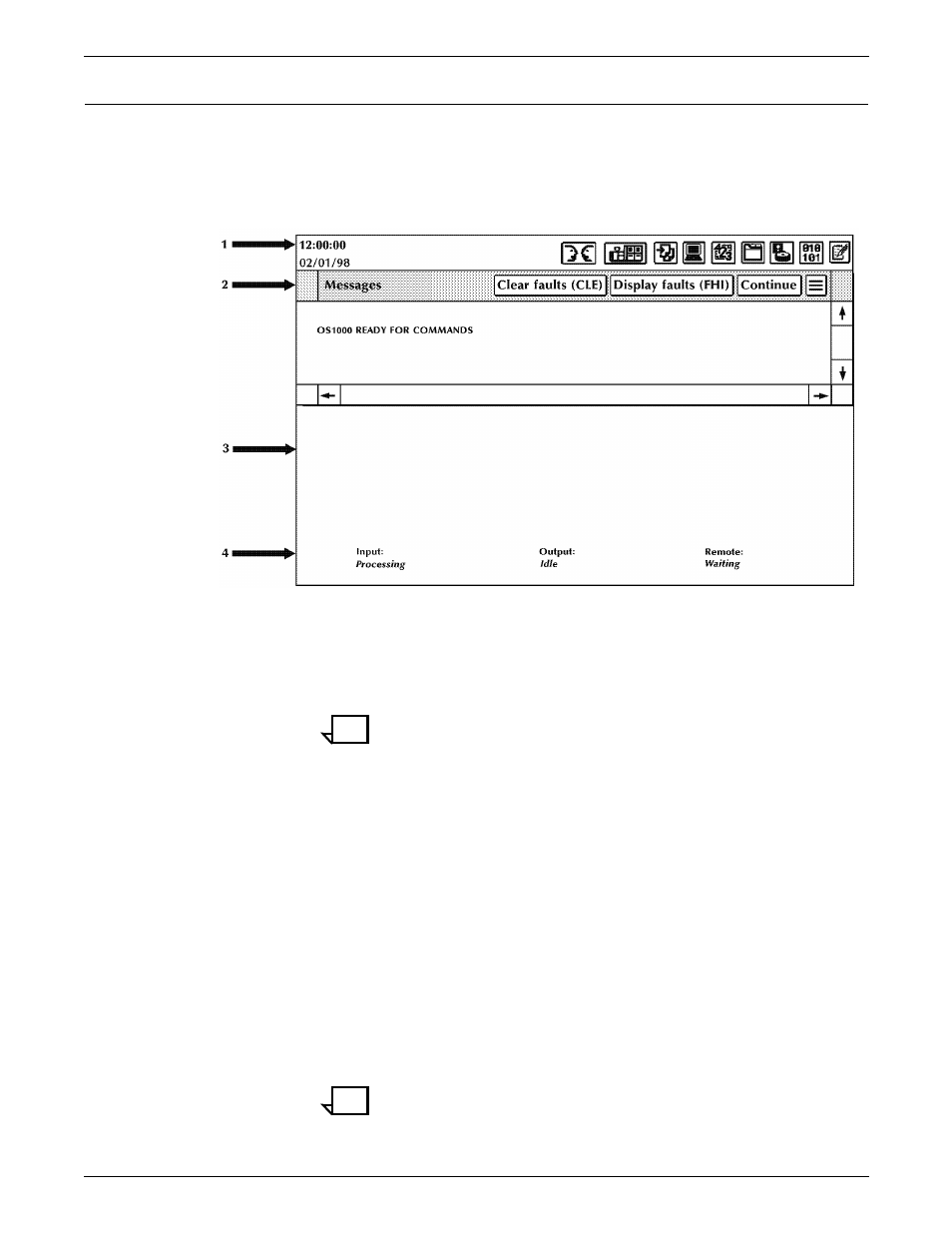

Figure 2-5. PC UI desktop
1 Status area
2 Messages window
3 Work area
4 System status and source display
Note: The icons you see depend on the level to which you are
signed on. Certain tasks are restricted to certain log-on levels. You
need a special password to access those tasks. The tasks covered
in this manual are all tasks an operator needs to perform. For
information on additional icons and options not covered in this guide,
refer to the
180 LPS PC User Interface Reference.
The messages window displays system messages and allows you to
enter commands for performing LPS tasks. You can scroll through
the messages in this window (refer to the “Using the scrollbars”
section later in this chapter), and the window can be resized or
moved (refer to the “Moving and resizing the window” section later in
this chapter for instructions). This window cannot be closed. The
Messages window contains three header buttons and three header
options:
•
Clear Faults. Select this button to clear printer software faults
(when directed by a message in the Messages window or on
the printer control console). Selecting this button also causes
any outstanding printer faults to be displayed in the window.
Note: Entering CLEAR has the same effect as selecting the
Clear Faults button or the function key .
