Xerox 180 User Manual
Page 267
MAINTENANCE TASKS
XEROX DOCUPRINT 180 LPS OPERATOR GUIDE
11-11
Cleaning the Q850 sensor
Follow this procedure when directed by the Xerox Customer Support
Center personnel.
Step 1.
Open the printer right and left doors and locate area 4.
Step 2.
Raise the area 4 green handle until it locks into place (see figure 11-
14).

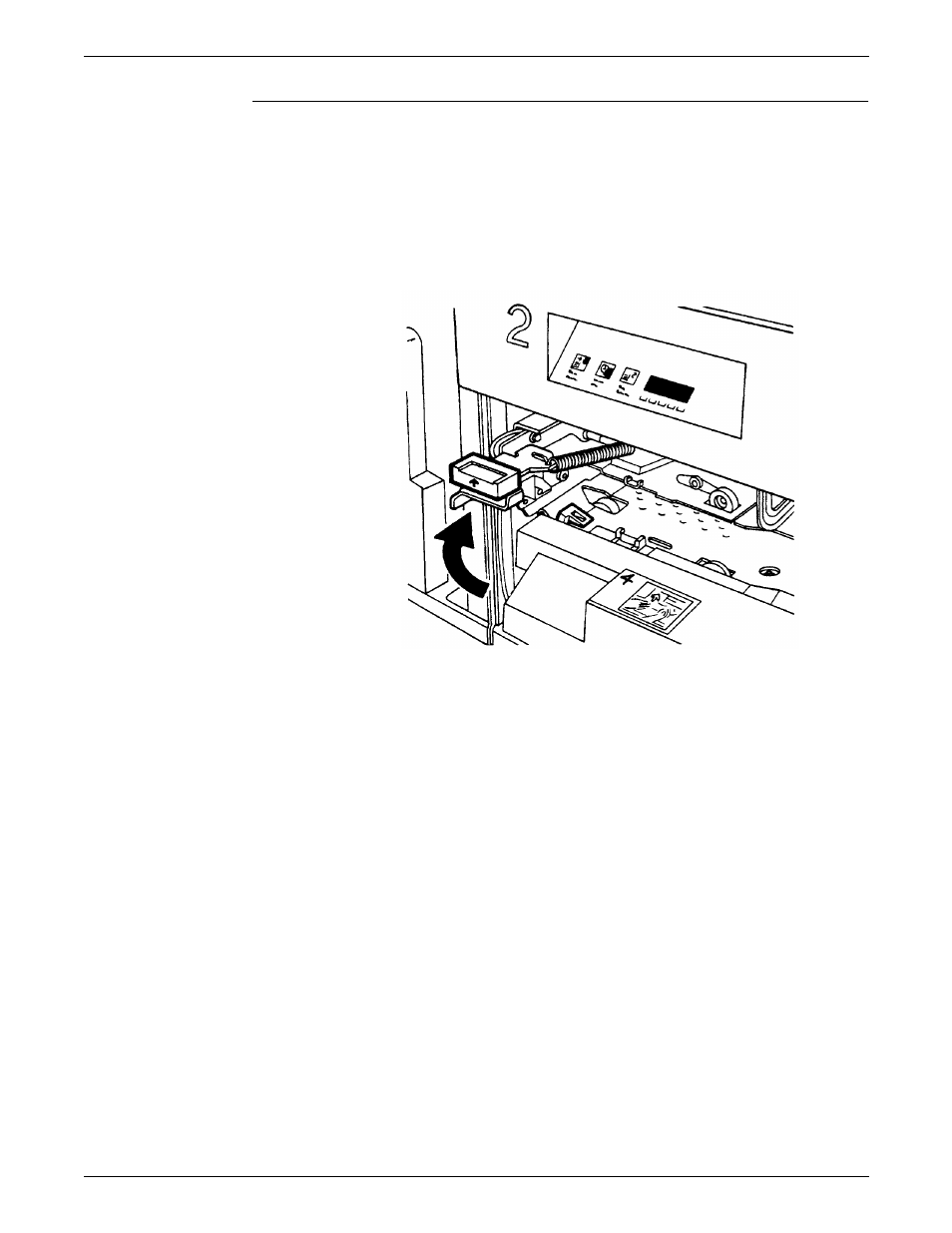

Figure 11-14.Raising the Area 4 green handle
Step 3.
Locate the Q850 sensor (see figure 11-15).
