Toshiba Tosvert VF-AS1 User Manual
Page 51
E6581301
B-11
2
SW

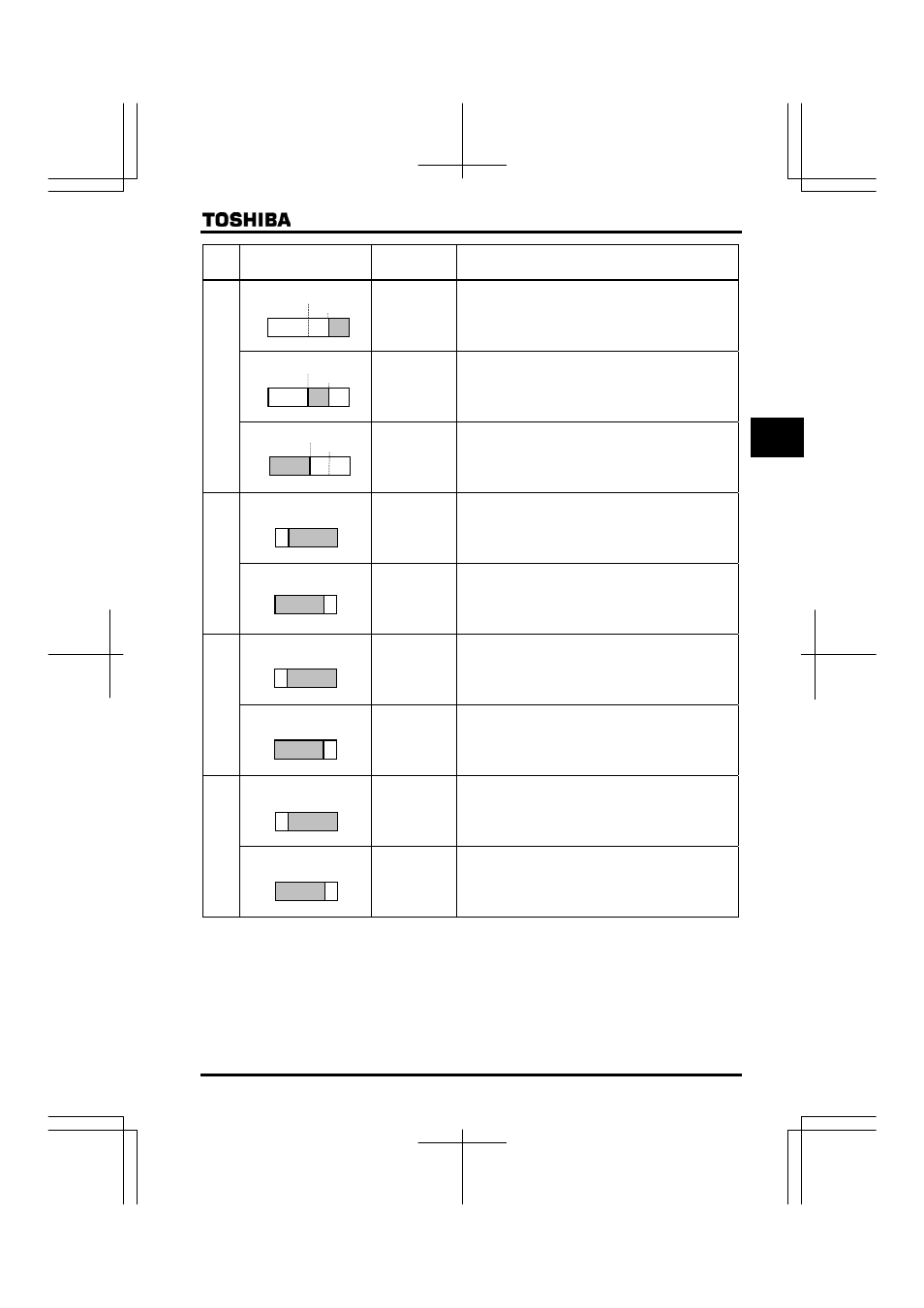

SW settings
Default setting
(Settings marked
with
)
Function
Setting for using the inverter’s internal power supply in sink logic
mode
Setting for using the inverter’s external power supply in sink logic
mode
SW1
Setting for operating the inverter in source logic mode
Setting for using the analog output terminal FM to output current
of 0-1mA
SW2
Setting for using the analog output terminal FM to output current
of 0-10V or 0-20mA (4-20mA)
0-10V (H=) or 0-20mA (H=) can be selected by
changing parameter settings.
Setting for using the input terminal RR/S4 as an analog input
terminal (0-10Vdc)
SW3
Setting for using the input terminal RR/S4 as a contact input
terminal
Setting for using the output terminal OUT1 as a logic output
terminal
When turning the switch to this position, always set the parameter
H
to (logic output).
SW4
Setting for using the output terminal OUT1 as a pulse output
terminal
When turning the switch to this position, always set the parameter
H
to (pulse output).
SOURCE
SINK
PLC
INT/PLC
INT
SOURCE
SINK
PLC
INT/PLC
INT
SOURCE
SINK
PLC
INT/PLC
INT
0-10V
0-20mA
0-1mA
FM
0-10V
0-20mA
0-1mA
FM
S4
RR/S4
RR
S4
RR/S4
RR
PULS
Lo
OUT1
