E6581301
F-10
6

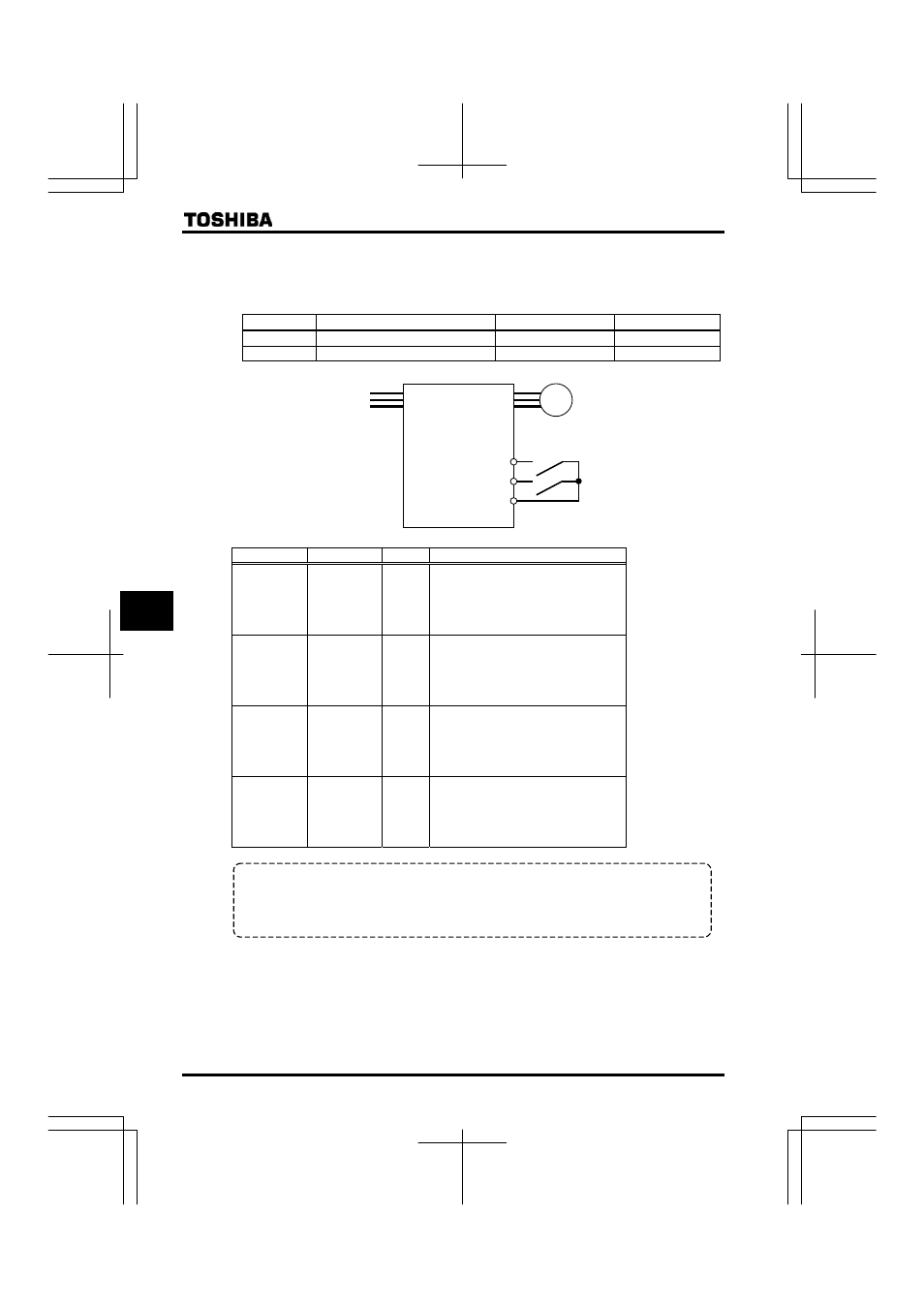

■ Setting of switching terminals
The V/f1, V/f2, V/f3 and V/f4 switching function is not yet assigned to any terminal. Therefore, it is necessary to
assign them to unused terminals.
Ex.) Assigning the V/f switching 1 function to S1 and the V/f switching 2 function to S2.
Title Function Adjustment range Example of setting
H Input terminal function selection 5 (S1) ~ (V/f switching 1)
H Input terminal function selection 6 (S2) ~ (V/f switching 2)
S1: V/f switching 1
S2: V/f switching 2
CC
S1-CC S2-CC V/f Parameters selected
OFF OFF
Base frequency 1 : XN
Base frequency
voltage 1
: XNX
Manual torque boost 1 : XD
Thermal protection 1 : VJT
ON OFF
Base frequency 2 : H
Base frequency
voltage 2
: H
Manual torque boost 2 : H
Thermal protection 2 : H
OFF ON
Base frequency 3 : H
Base frequency
voltage 3
: H
Manual torque boost 3 : H
Thermal protection 3 : H
ON ON
Base frequency 4 : H
Base frequency
voltage 4
: H
Manual torque boost 4 : H
Thermal protection 4 : H
+Select V/f1 when using the vector control and the V/f-5 point setting.
Selecting V/f2,.V/f3, or V/f4 disables vector control but enables the V/f constant control.
+ By using “My function,” torque limits and acceleration/deceleration modes can be switched along with V/f
switching.
Note:With the operation panel or communication, the acceleration/deceleration switching (H) can be set.
* This function is active only in operation panel operation mode.
