Toshiba Tosvert VF-AS1 User Manual
Page 21
E6581301
A-5
1
M5 screw
Shorting-bar
Grounding capacitor
switching switch
Grounding terminal
(M5 screw)
Screw hole for EMC plate
M6 screw
Shorting-bar
Grounding capacitor
switching switch
Grounding terminal
(M5 screw)
Screw hole for EMC plate
M8 screw
Shorting-bar
Grounding capacitor switching switch
Grounding terminal
(M5 screw)
Screw hole for EMC plate
Grounding capacitor switching switch
(400V model)

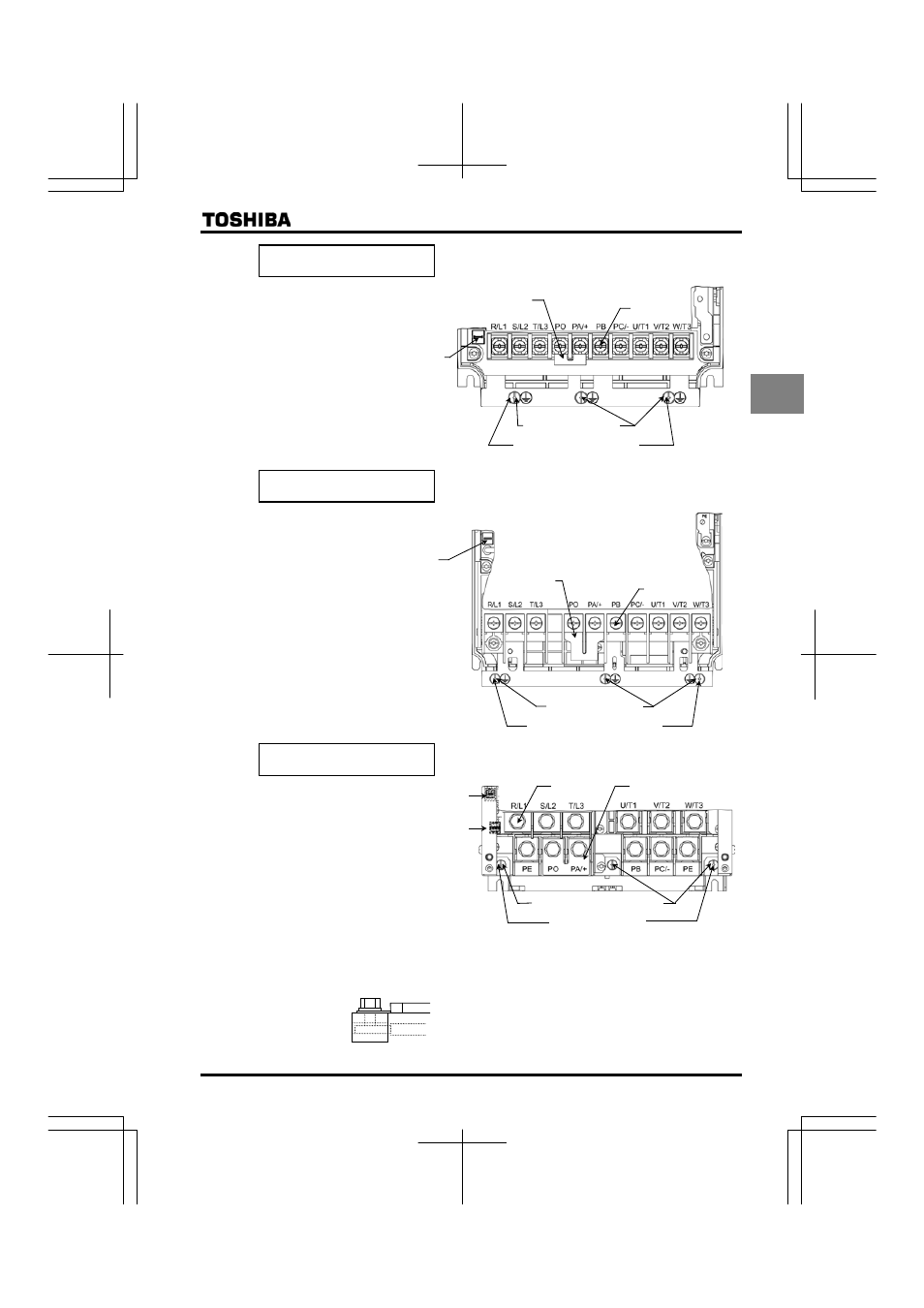

Each main circuit terminal has the structure
shown in the figure below.
Connect a cable to part A if it has a ring
terminal, or to part B if it has no terminal
(bare wire).
Parts A and B accommodate different sizes
of cables, so consult the cable size list for
the size of cable connectable to each part.
VFAS1-2075PL
VFAS1-4110PL
VFAS1-2110PM, 2150PM
VFAS1-4150PL, 4185PL
VFAS1-2185PM, 2220PM
VFAS1-4220PL
