E6581301
A-6
1
M8 screw Shorting-bar
Grounding capacitor switching switch
Grounding terminal
(M5 screw)
Screw hole for EMC plate

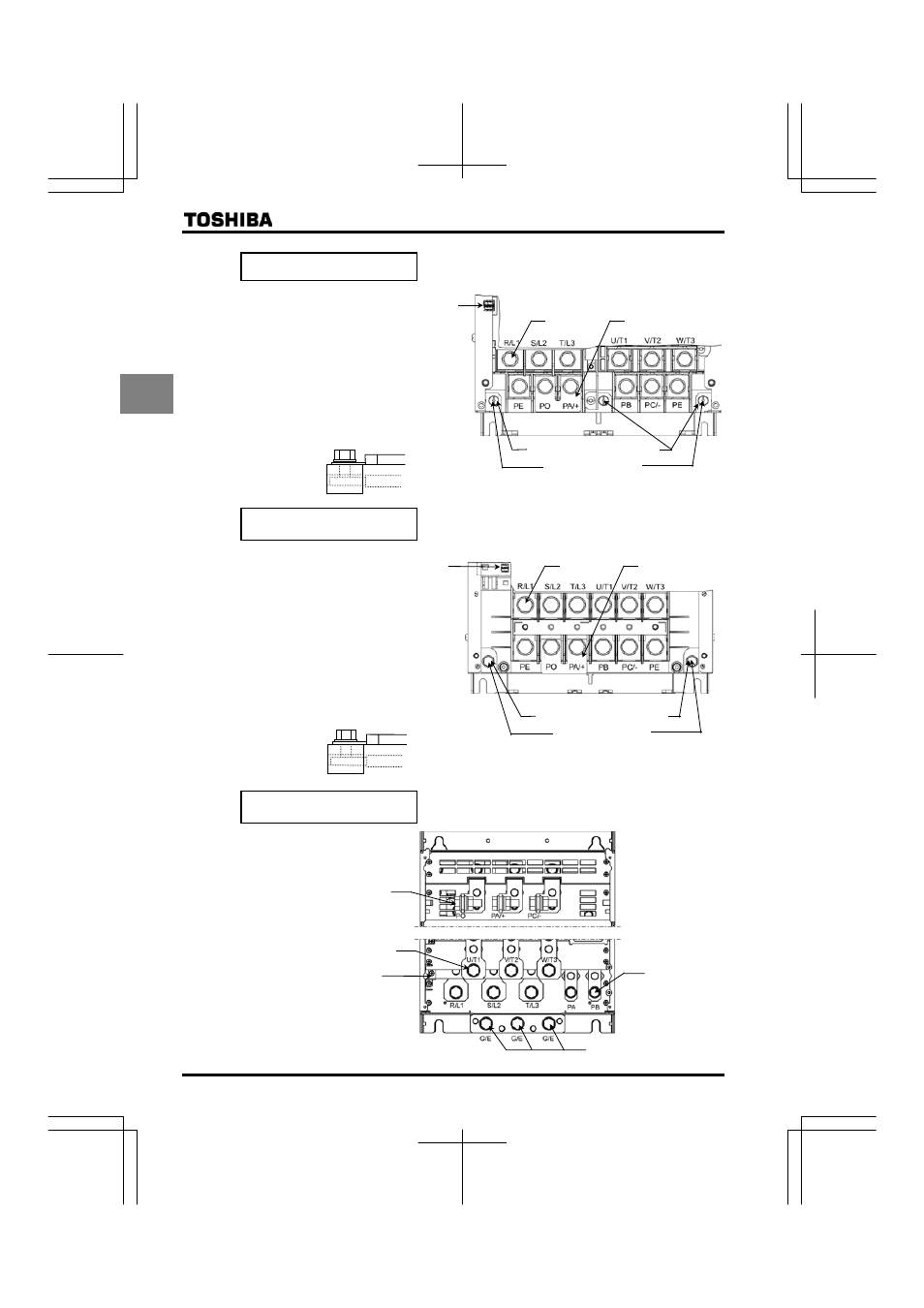

Each main circuit terminal has the structure
shown in the figure below.
Connect a cable to part A if it has a ring
terminal, or to part B if it has no terminal
(bare wire).
Parts A and B accommodate different sizes
of cables, so consult the cable size list for
the size of cable connectable to each part.
M12 screw Shorting-bar Grounding capacitor switching switch
Grounding terminal
(M8 screw)
Screw hole for EMC plate
Each main circuit terminal has the structure
shown in the figure below.
Connect a cable to part A if it has a ring
terminal, or to part B if it has no terminal
(bare wire).
Parts A and B accommodate different sizes
of cables, so consult the cable size list for
the size of cable connectable to each part.
Grounding terminal(M10 screw)
M12 screw
Grounding capacitor
switching bar
M10 screw
M8 screw
VFAS1-4300PL 4370PL
VFAS1-2550P
VFAS1-4900PC
VFAS1-2300PM~2450PM
VFAS1-4450PL~4750PL
