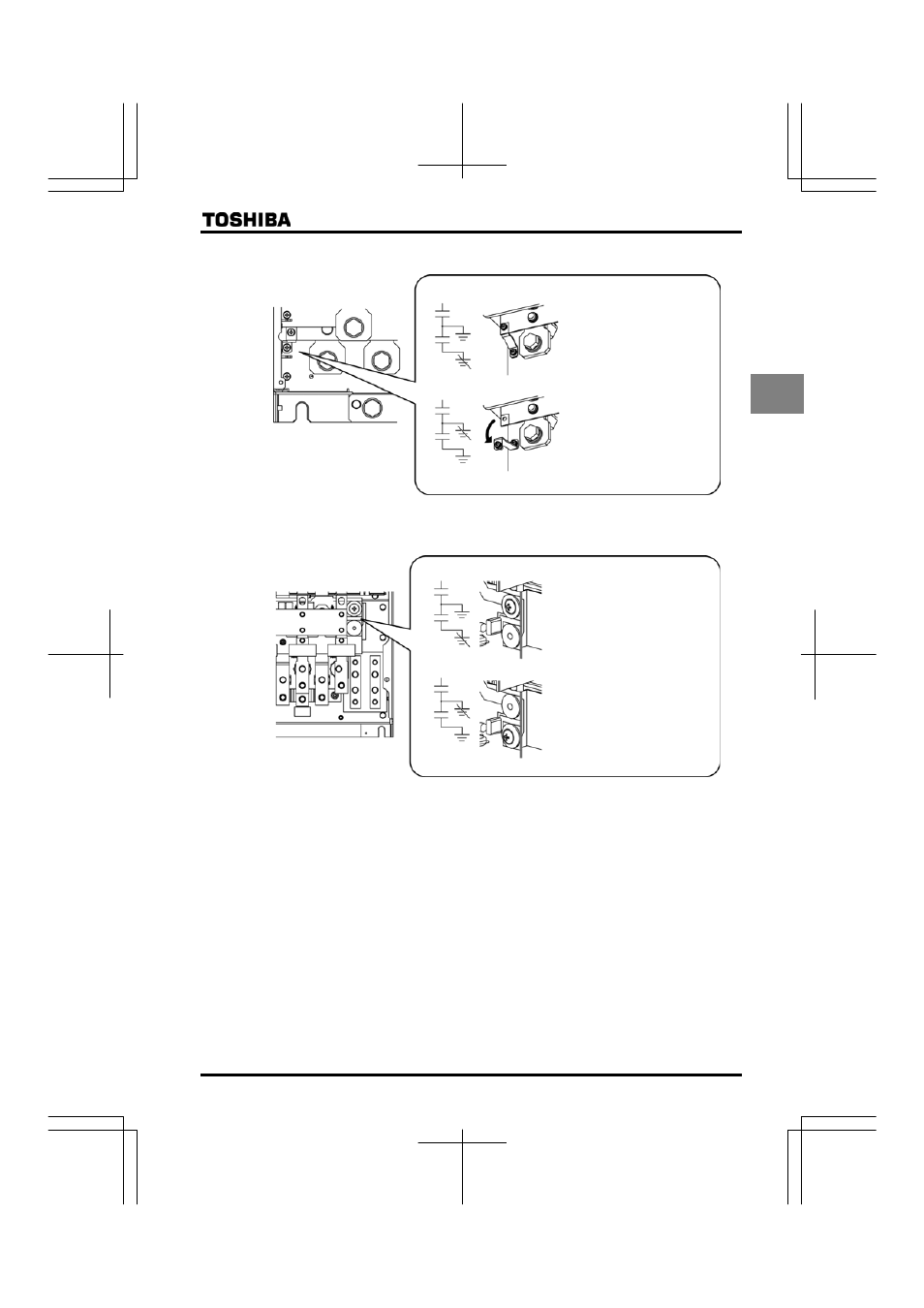

■ 200V/55kW models and larger 400V/90kW, 110kW models: Grounding capacitor switching bar
To change the capacitance from
Small to Large, secure the upper
end of the grounding capacitor
switching bar to the inverter
chassis, with a screw.
To change the capacitance from
Large to Small, remove the screw
that fixes the upper end of the
grounding capacitor switching bar
and turn the switching bar, as
shown in the figure on the left.
(Factory default position)
Large
Small
Large
Small
■ 400V/132kW models and larger: Grounding capacitor switching screw
To change the capacitance from
Small to Large, fix to part A shown
in the figure on the left with the
grounding capacitor switching
screw.
To change the capacitance from
Large to Small, fix to part B shown
in the figure on the left with the
grounding capacitor switching
screw.
(Factory default position)
A
B
A
B
Large
Small
Large
Small
