Trinix NXT — Installation and Service Manual 93
Duplication and Expansion

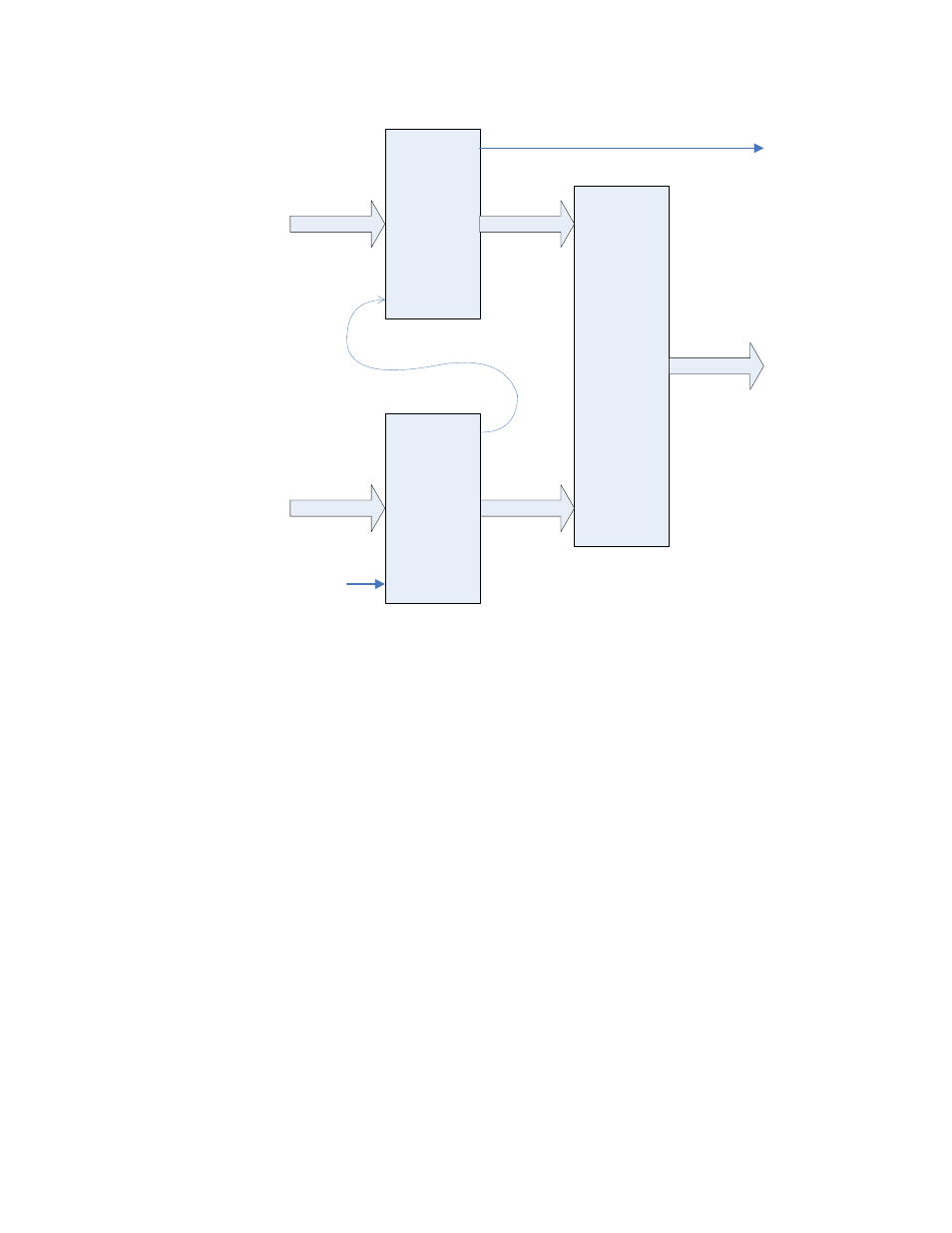

Figure 52. Expansion of two 512x1024 Frames with Output Monitoring.
Trinix
NXT
512x1024
Switcher
Frame 0
16 ea.
16x2:2
COMBINERS
Outputs 1-1024
Outputs 1-1024
Outputs 1-1024 Inputs 1-512
Inputs 513-1024
Trinix
NXT
512x1024
Switcher
Frame 1
CAS ins (4) X 2
MON outs (4)
MON outs (4)
CAS ins (4) X 2
No Connect
Or Test Signal
Note: The order of the
frames for the monitor
cascade does not matter.
4 75 ohm coaxial cables
MON outs (4)
System Outs
(Outputs 513-516)
071827609_expansion_2_frame-512x1024^2_woutput-mon
Legend:
CAS = Cascade
MON =
Monitor
Ins = Inputs
Outs = Outputs
