Trinix NXT — Installation and Service Manual 91
Duplication and Expansion

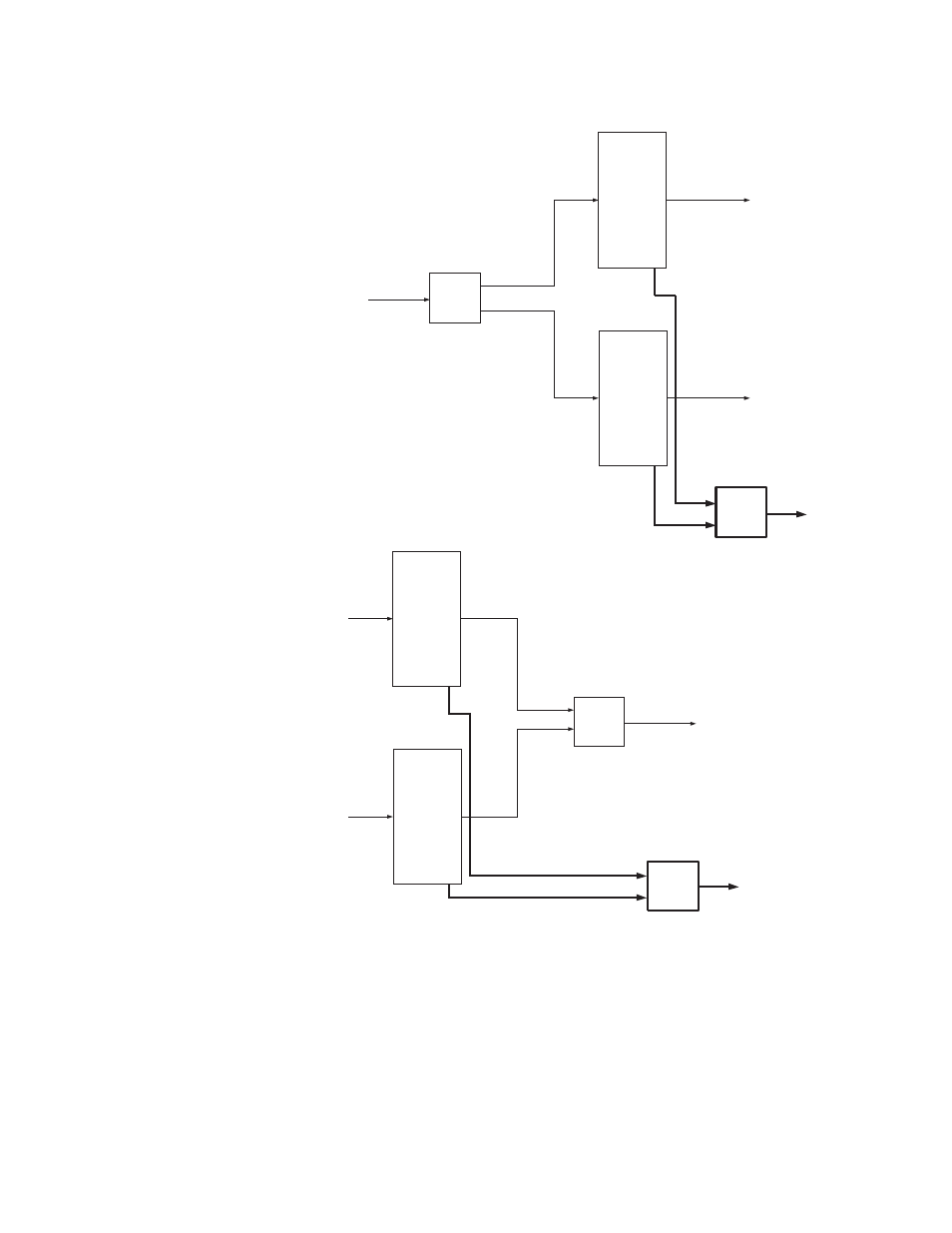

Figure 50. Monitoring With Output-expanded System.
Asymmetrical Frames
Output monitor signals are cascaded from the expansion frame to the main
frame (frame 0) via the TRX-SR Sync/OPM board.
Trinix
Frame 0
256 x 256
1 - 256
1 - 256
257 - 512 1 - 256
1 - 256
PE-33016s
used as
splitters
PE-33016
used as
combiner
Output monitor video
Output monitor video
QC station
Trinix
Frame 2
256 x 256
Trinix
Frame 0
256 x 256
1 - 256
1 - 256
257 - 512
257-512
1 - 256
PE-33016s
32
used as
combiners
PE-33016
used as
combiner
Dual outputs
Output monitor video QC station
Trinix
Frame 1
256 x 256
