360 Trinix NXT — Installation and Service Manual
Section 9 — Protected Paths
Broadlinx Protective Paths Web Page
The Protective Paths web page is part of the Signals: Monitor page. All Pro-
tected paths can be changed together by checking either the
Primary or Sec-
ondary check box and selecting the Enter button.

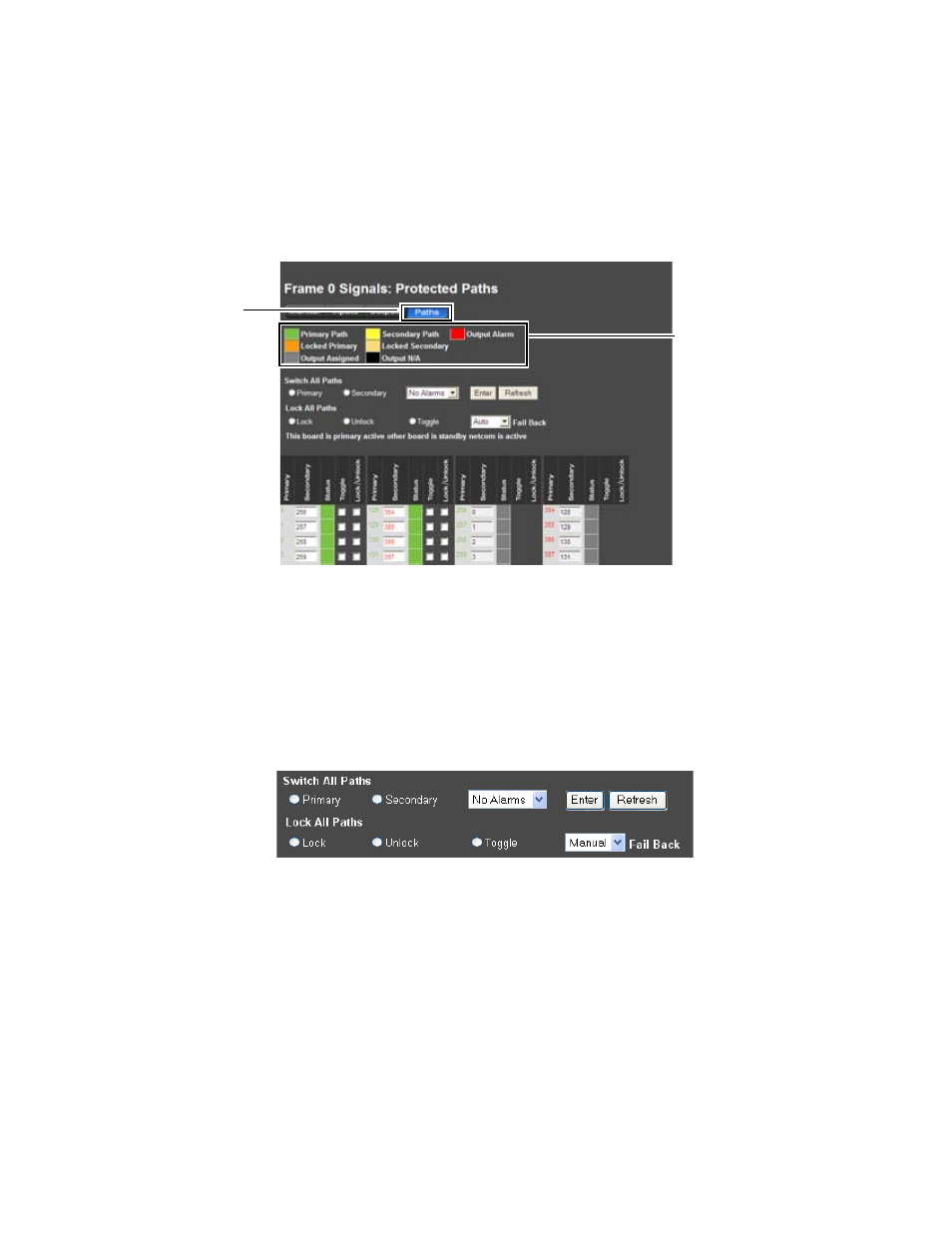

Figure 252. Broadlinx Web Page for Protected Path Configuration (Example)
Command Section
The Command section on the Protected Paths page is where the commands
for switching paths, setting the alarm level, locking or unlocking the paths,
toggling all paths, setting the type of “fail back,” the
Enter button, and the
Refresh button.
Figure 253. The Command Section
Each of these commands is explained in detail below. The commands are
from left to right and from top to bottom.
Switch All Paths
Primary radio button : Selecting the Primary radio button and then clicking
the Enter button will switch to the Primary path.
Secondary radio button : Selecting the Secondary radio button and then
clicking the Enter button will switch to the Secondary path.
The Paths Tab
The Status Color Map
