158 Trinix NXT — Installation and Service Manual
Section 3 — Hardware Installation

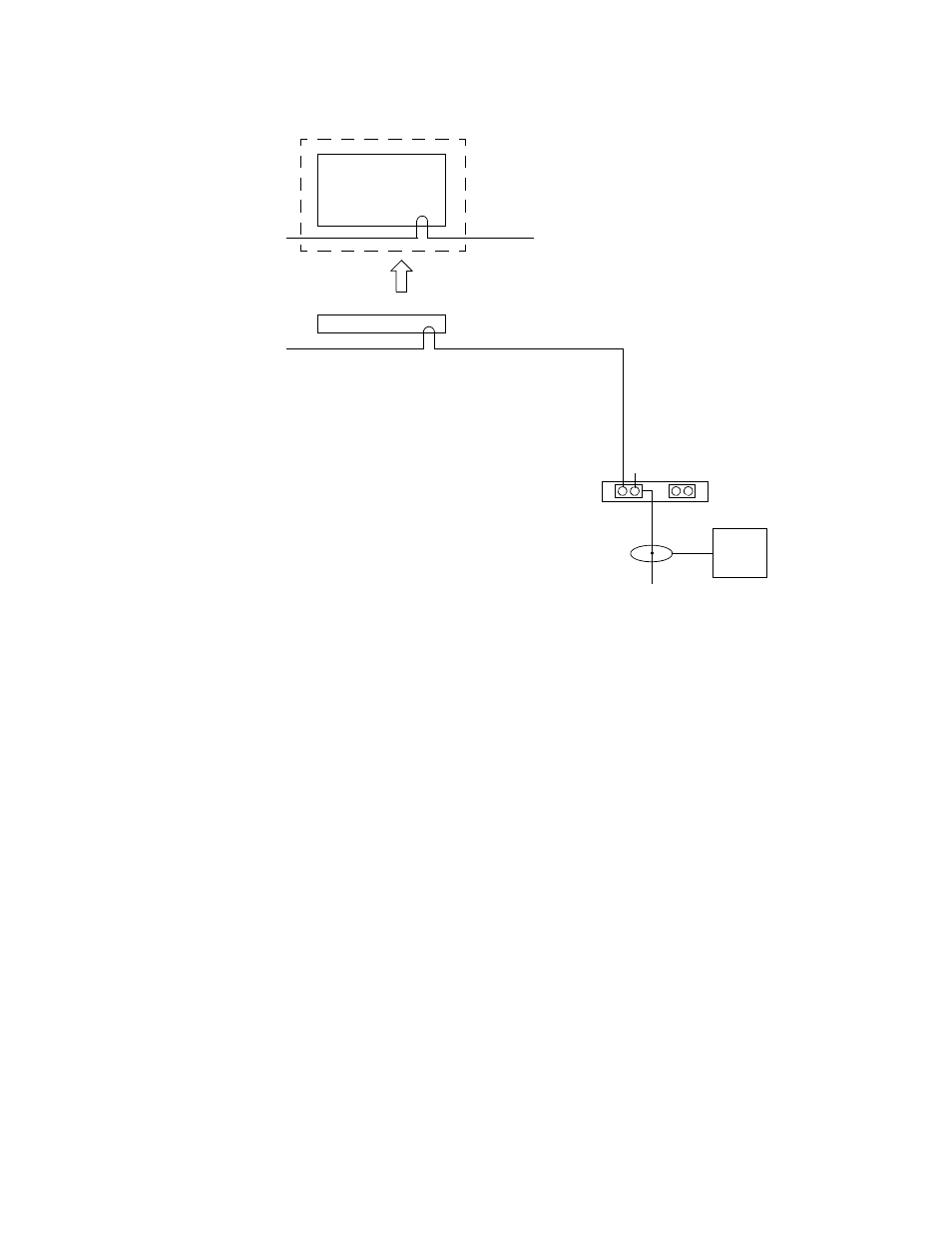

Figure 79. Single Sync Reference Options
Frames with Dual-Sync References
In the example shown in Figure 80 on page 159 , the Dual-Sync reference is
sent to the Encore and Jupiter control system and to two connections on the
Trinix router. For example, TRX-NXT-128x128, TRX-NXT-256x256, TRX-
NXT-128x256, TRX-NXT-256x512, and TRX-NXT-512x1024.
The sync redundant switch is located between the OP Expand and INT XPT
switches on the rear of the Router chassis.
Jupiter
Sync 1
All output
Sync Line
SMS MCPU
Sync 1
or
Encore SCB
OR
*Sync Redundant switch = Off
Sync
1
2 1 Primary NR-33000
T
boards
