50 Trinix NXT — Installation and Service Manual
Section 2 — Planning Guide

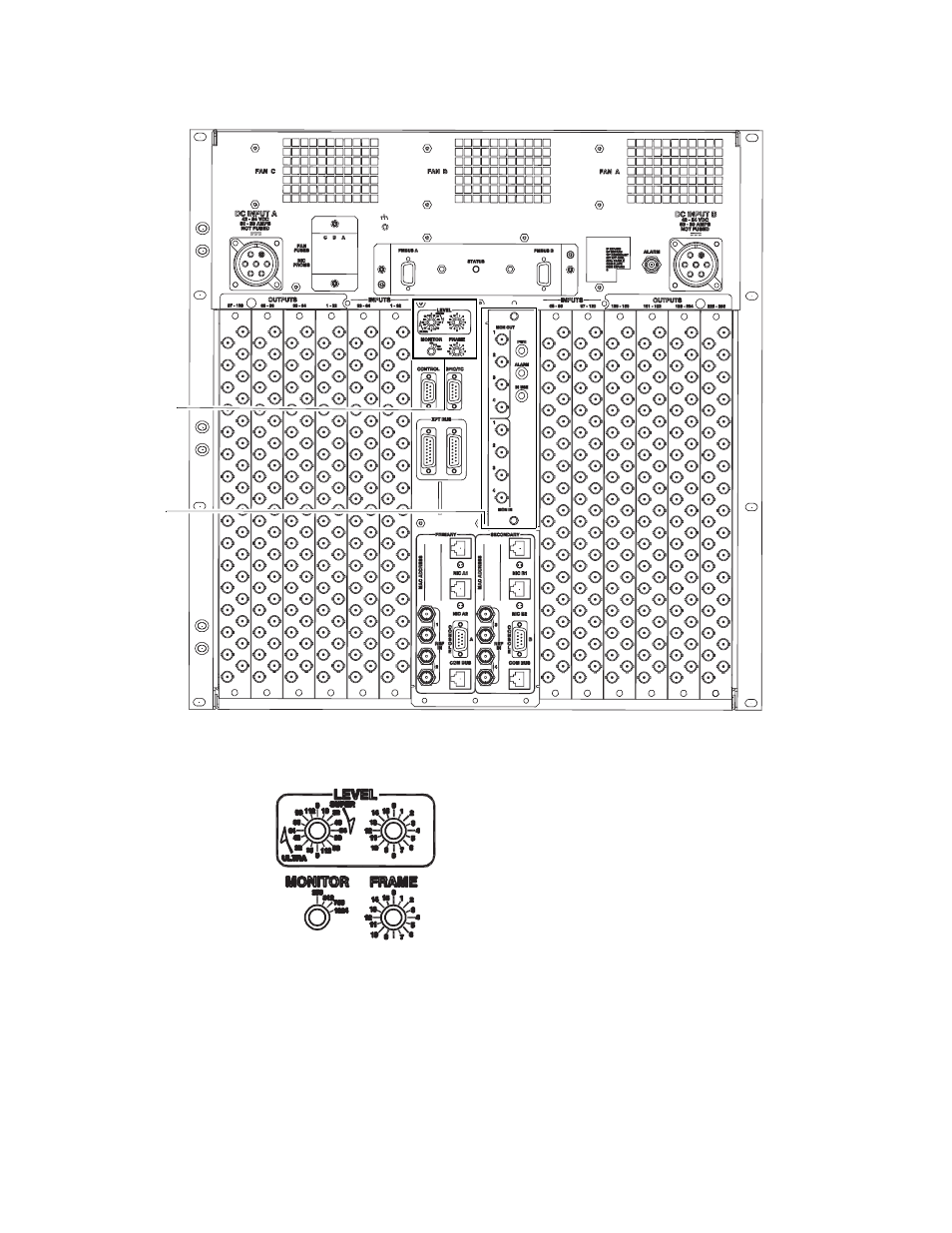

Figure 12. TRX-NXT-128x256 Asymmetric Frame-Back
Figure 13. The Level, Monitor, and Frame Switch For the 128x256 Routing Switcher
Fan modules and Exhaust
vents
DC Power inputs
Input and Output boards
The outer four slots are
Output boards
The inner eight slots are
Input boards
Matrix boards
SR module
071827610
_128x256_
rear
See
Figure 13
for detail
OPM
Board
27612_LEVEL_MONITOR_128x256
