Trinix NXT — Installation and Service Manual 83
Duplication and Expansion
The 512x1024 Routing Switcher
The 512x1024 Routing switcher can be duplicated to form the following
frames:
• 1024x1024
• 512x2048
• 1024x2048
• 2048x2048
Note The 2048x2048 frame can only process SD or HD signals do to the port
expander that must be used (TRX-PE-33008).
Examples of each of these frames can be found on the pages that follow.
The 1024x1024 Frame
This configuration can process SD,HD and 3Gb/s signals.

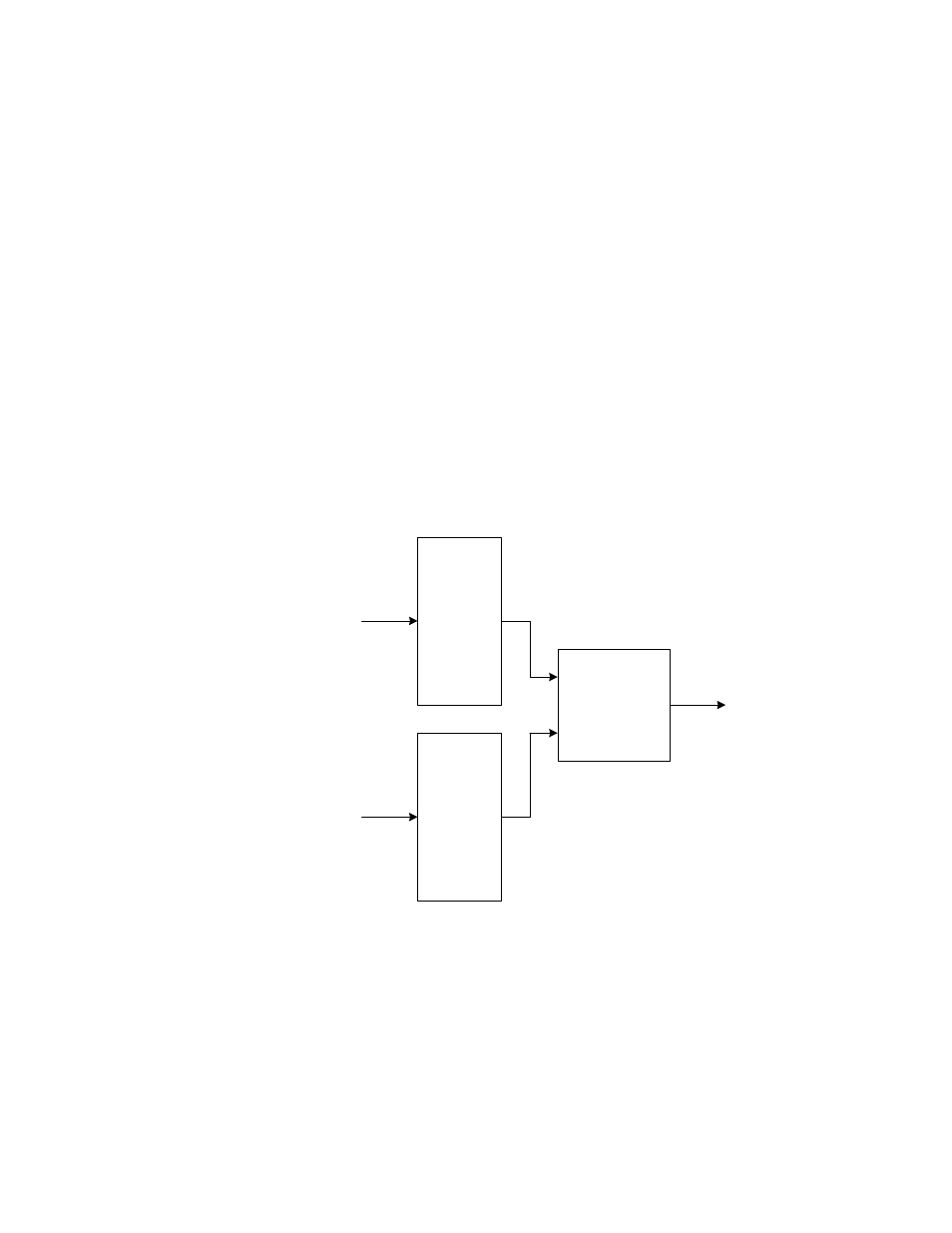

Figure 41. Example of the 1024x1024 Frame
Frame 0
Trinix
512 x1024
Frame 2
Trinix
512 x1024
64
TRX-PE-2x2-3G
used as
Combiners
1-1024
513-1024
1-512
071827612_1024x1024 System_512x1024
