408 Trinix NXT — Installation and Service Manual
Section 12 — Troubleshooting

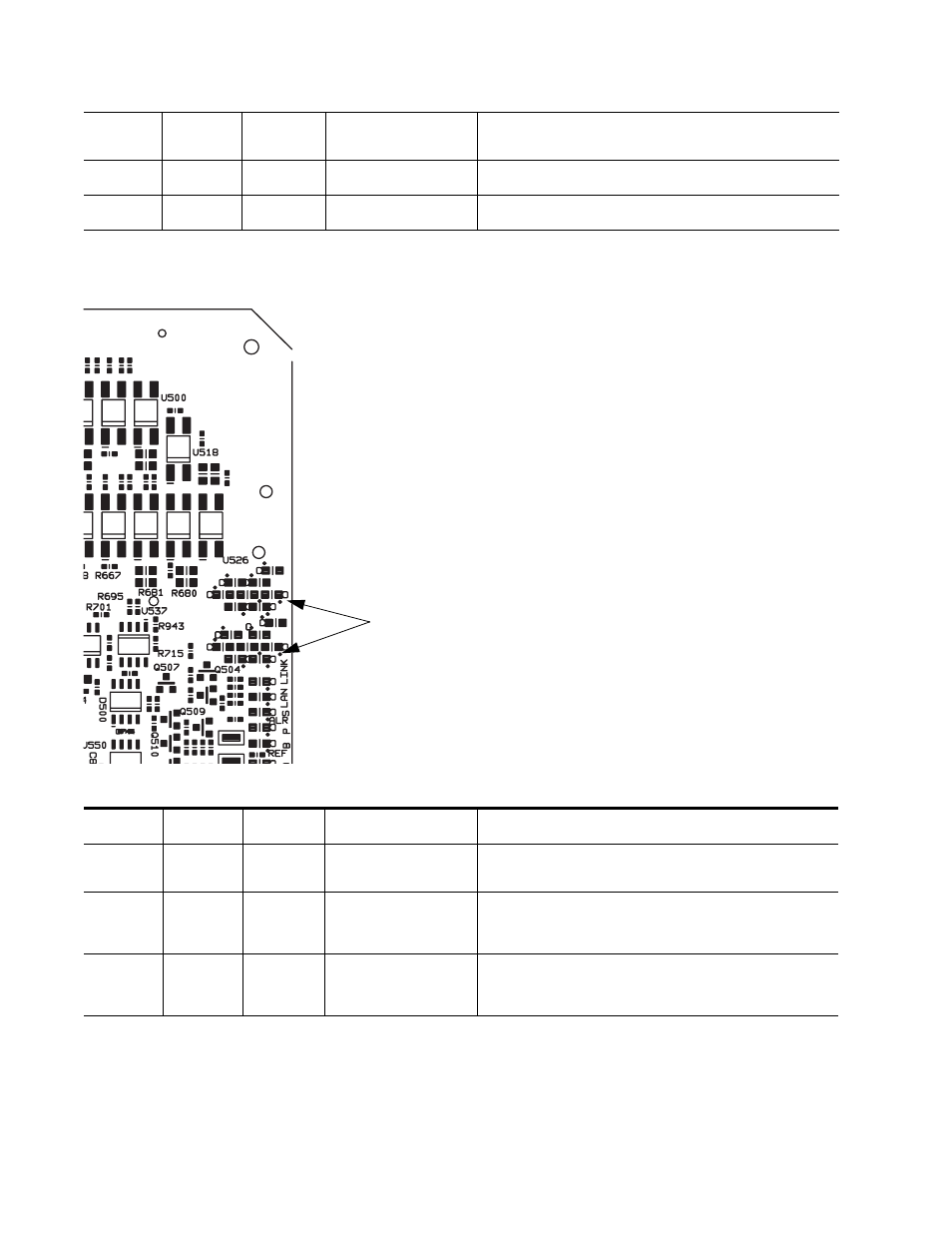

Dual 7-segment LEDs
12 - Dual 7-segment LEDs
See NR-33000 dual 7-segment LED CPU codes on page 409 .
9 SALR
Red
single fan failure
10 LAN Flashing green LAN activity
11 LINK Green LAN link OK
Number Ref Display Meaning
12
Dual 7-seg-
ment LEDs
Numeric pattern CPU codes. See below
Dual 7-seg-
ment LEDs
Flashing decimal points
Broadlinx code is loading (faster flashing indicates increase in interrupt
rate)
Dual 7-seg-
ment LEDs
Spinning pattern
CPU running with Broadlinx code loaded (faster spinning indicates
increase in interrupt rate)
