Trinix NXT — Installation and Service Manual 293
Configuration

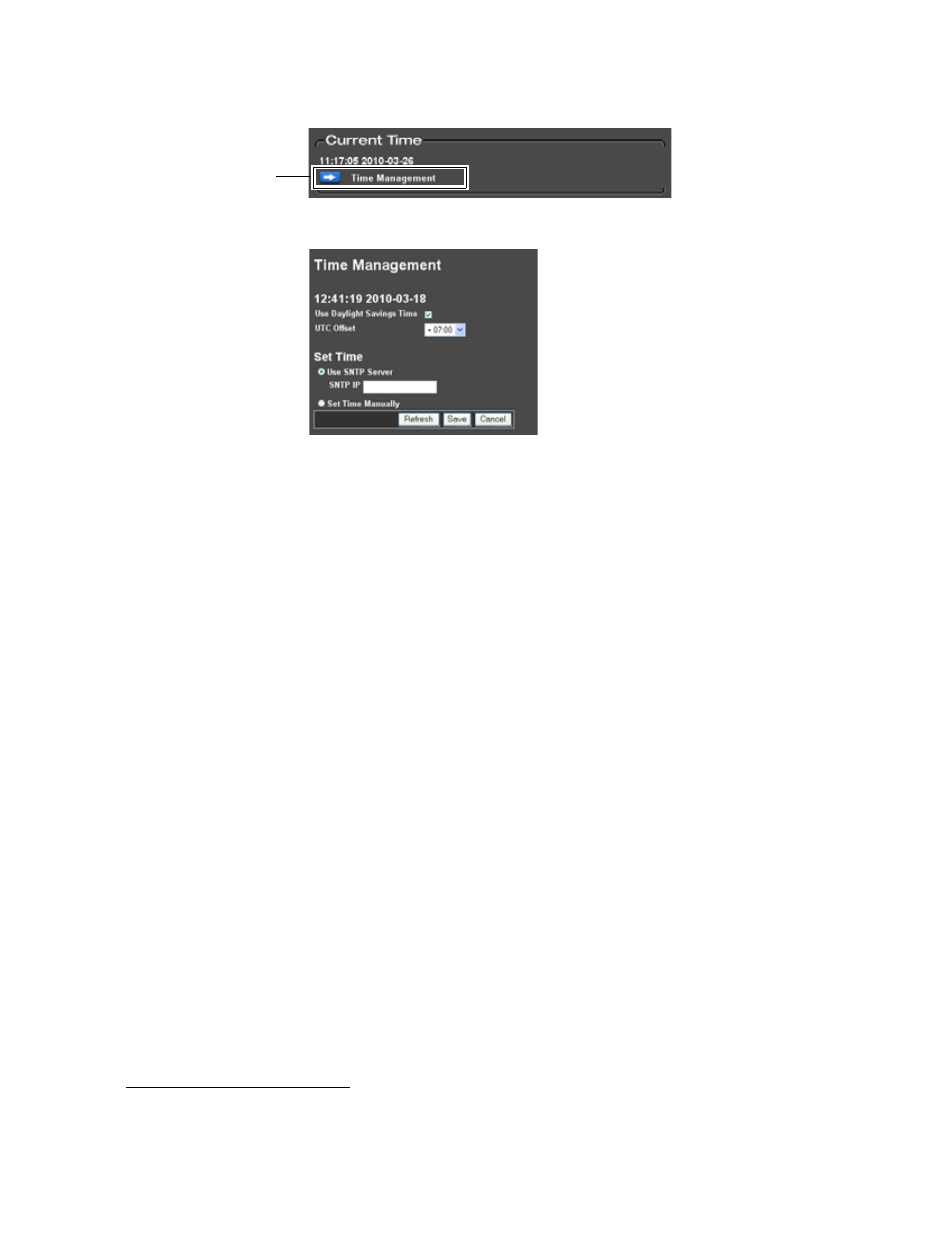

Figure 201. The Current Time section of the Configuration Page
Figure 202. The Time Management
The clock displayed on the page will synchronize automatically to a VITC
signal on line 14
1
of the sync reference input.
Follow these steps to set the time setting:
1. Click the Use Daylight Savings Time check box. The Daylight Savings Time
box MUST be checked or unchecked manually at the appropriate time
of year.
2. Select the UTC offset from the UTC offset drop-down list. The UTC
Offset is the number of hours that the standard time at the customer
location is ahead or behind Universal Time Coordinated (Greenwich
Mean Time). For example, for the U.S. Mountain time zone the entry
would always be “-7:00”, which is shown in the figure above.
3. Click the SNTP radio button and enter the IP address of the server if a
SNTP (Simple Network Time Protocol) server will be used as a time
source.
The SNTP address can also be changed on the Configure Net Interface
menu. If the SNTP server is on another network you may need to enter
the IP address of the gateway to that network.
Setting the Time Manually
The clock will run in stand-alone mode if no external reference is available.
1. per SMPTE RP 164-1996.
Click the Time Man-
agement arrow
