Trinix NXT — Installation and Service Manual
Section 3 — Hardware Installation

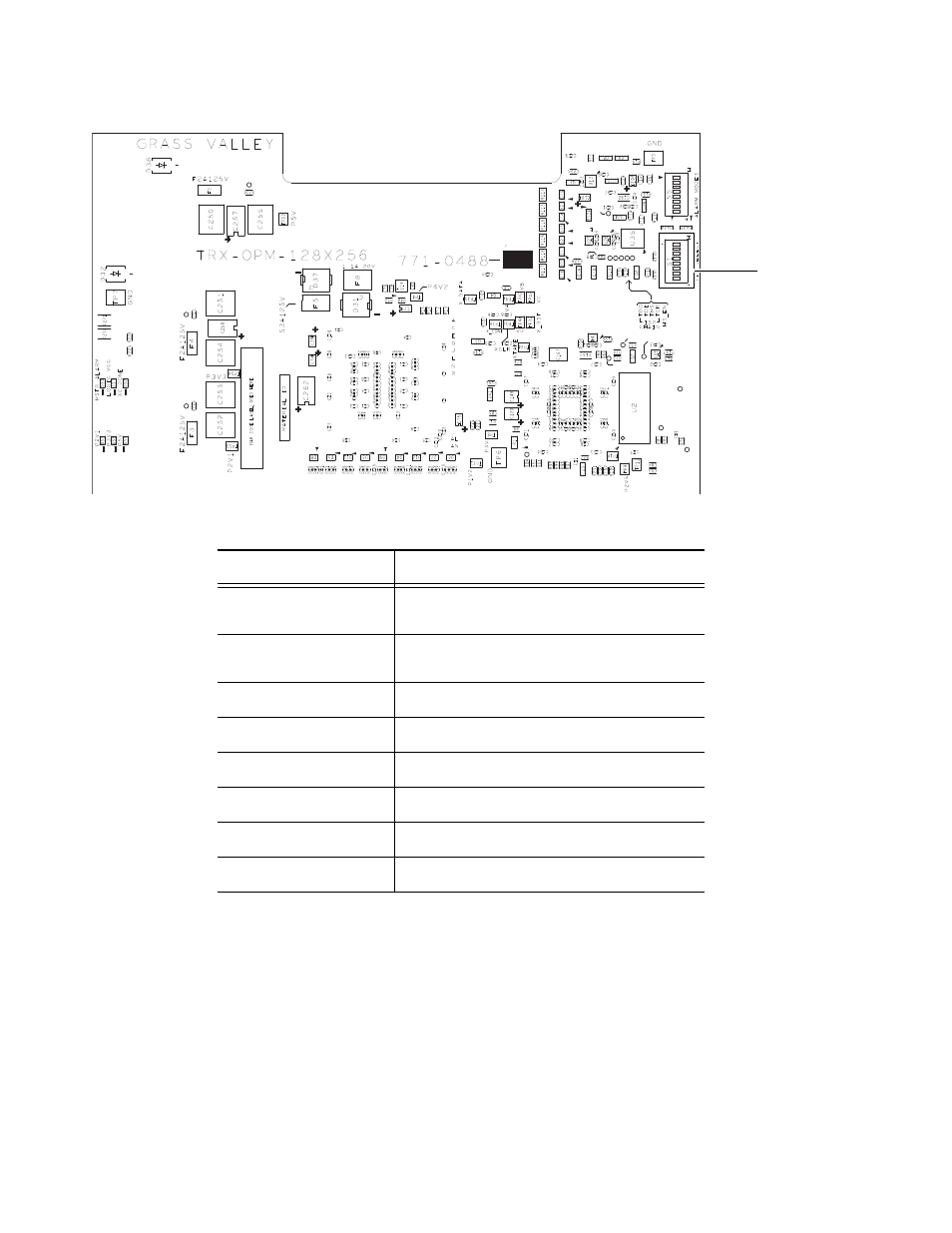

Figure 93. TRX-OPM Switch
Table 35. TRX-OPM: S1 DIP- Switch Settings
DIP Switch
Description
S1-1
Least Significant Bit (LSB) of reference source used for Moni-
tor Output 1
S1-2
Most Significant Bit (MSB) of reference source used for Moni-
tor Output 1
S1-3
LSB of reference source used for Monitor Output 2
S1-4
MSB of reference source used for Monitor Output 2
S1-5
LSB of reference source used for Monitor Output 3
S1-6
MSB of reference source used for Monitor Output 3
S1-7
LSB of reference source used for Monitor Output 4
S1-8
MSB of reference source used for Monitor Output 4
071827612_TRX-OPM_r1
DIP Switche
S1
Used for sync
selection con-
figuration
monitor on the
128x256 and
512x1024
frames only
