Trinix NXT — Installation and Service Manual
Section 9 — Protected Paths

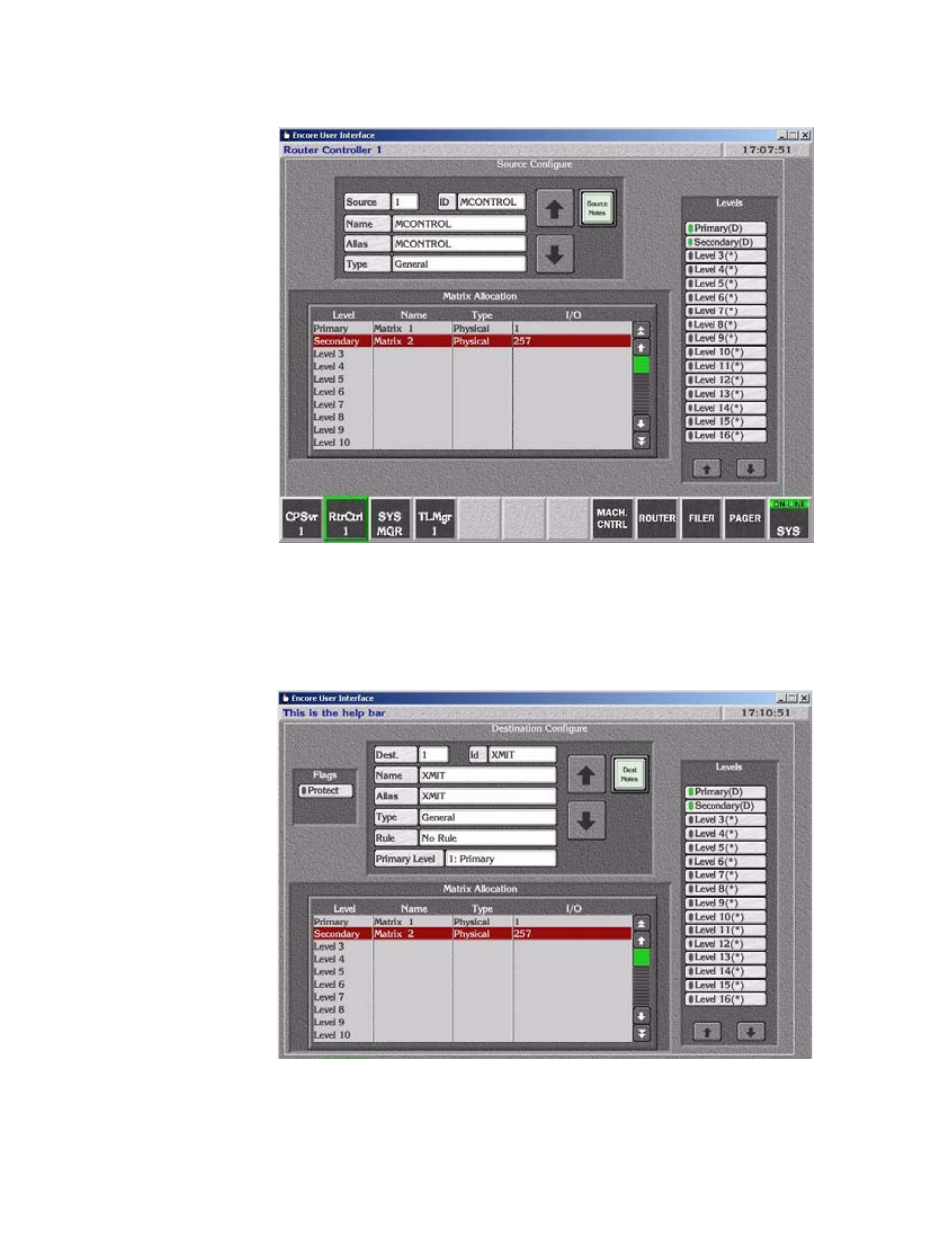

Figure 261. The Source Configuration Screen
9.
Using the Destination Configure screen, select the desired destination
and enter the logical matrix names and connector numbers for the
primary and secondary levels on the selected destination:
Figure 262. The Destination Configure Screen
