Trinix NXT — Installation and Service Manual 287

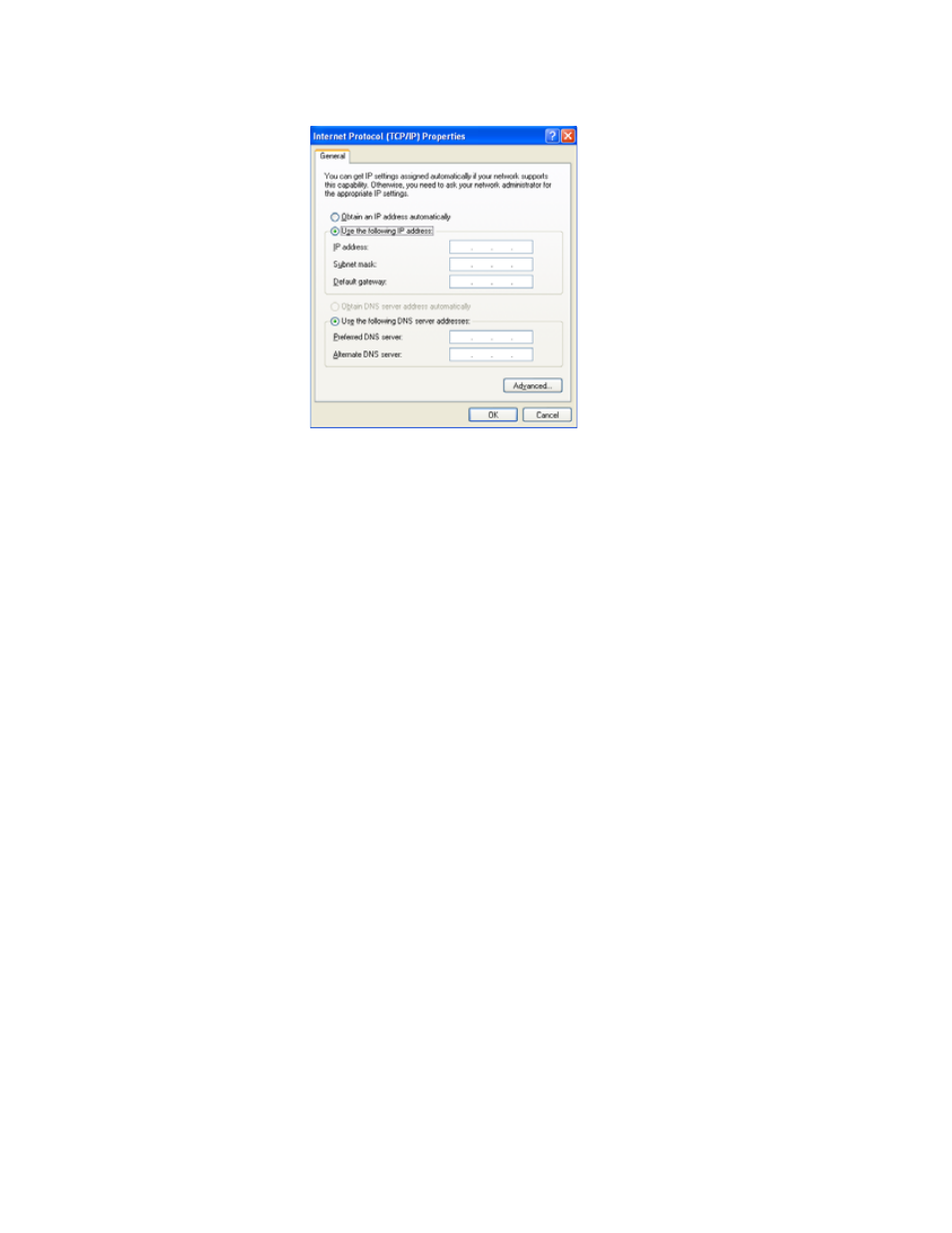

Figure 196. The Internet Protocol (TCP/IP) Properties Dialog
5. Click the Use the following IP address radio button. You must have
administrator privileges to change Internet settings.
a. Enter “192.168.253.XXX”in the IP address field (where “XXX” is a
three number combination that identifies the Monitor PC on the
network) and then “255.255.255.0” into the subnet mask field. All
other TCP/IP network settings are irrelevant at this point.
b. Reboot the PC to apply the changes.
You can use the MS-DOS ipconfig command to verify the set-
tings. These settings can be restored to their previous values once
the Broadlinx board has been configured.
6. The Broadlinx board should be booted (or rebooted) at this time. The
board can be rebooted by unseating and then re-seating the board:
a. The board can be unseated without turning off power.
b. To re-insert the board, keep the ejector levers spread apart and slide
the board in until the levers make contact. Then fold the levers
toward each other to seat the board.
c. Wait for the board to boot up fully (as indicated by the “spinning”
pattern of the LEDs on the front edge of the board).
Note The Broadlinx board should be powered up (or rebooted) only after all
network connections have been made. Otherwise the board may fail to boot
properly.
Starting BroadLinx
1. Start Microsoft Internet Explorer on the PC.
