SMS Control
In this arrangement, the router is under SMS control via a LAN connection.
The PC is used to configure the SMS and is available for Broadlinx or SNMP
monitoring. See
Figure 132 .

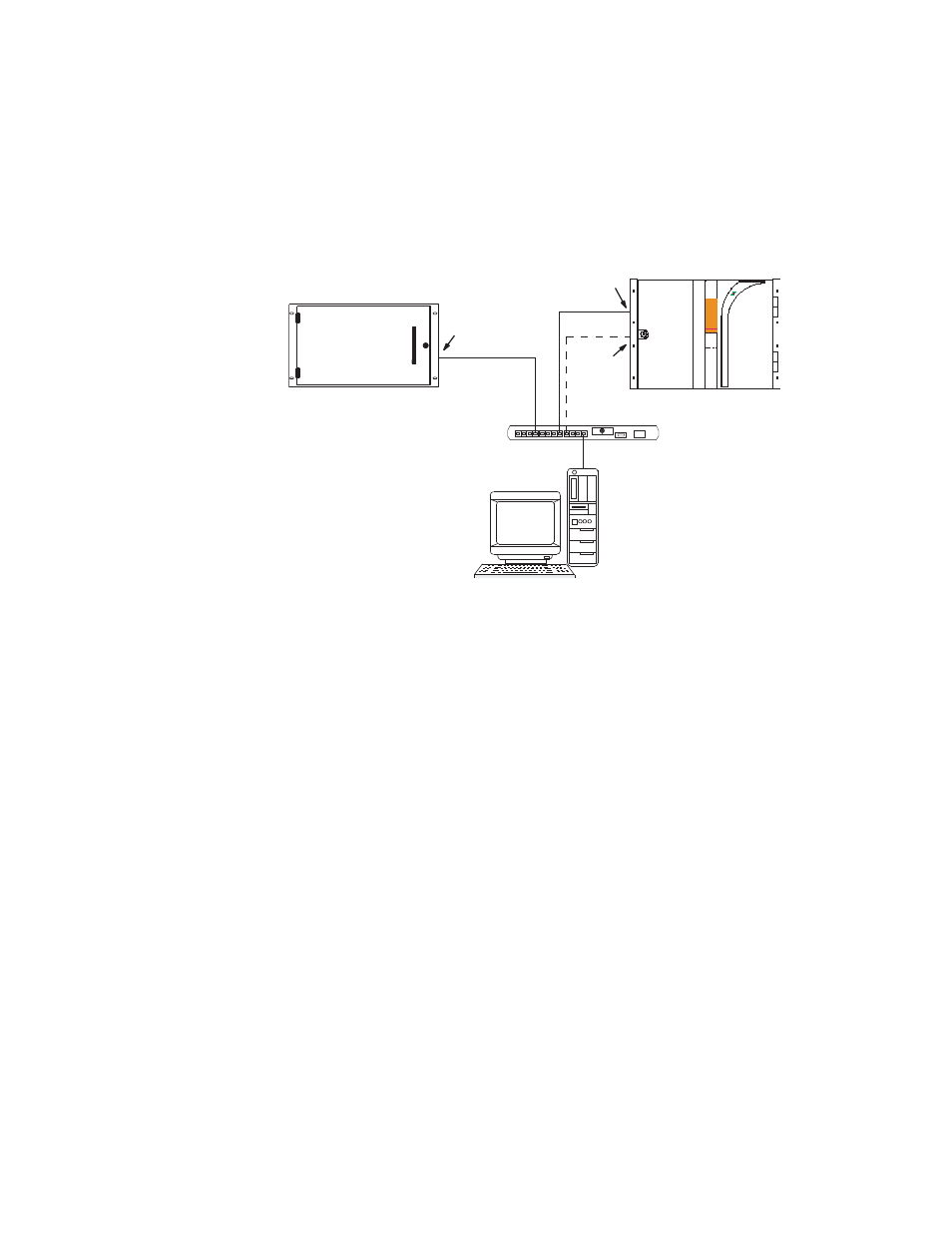

Figure 132. SMS connections to Trinix.
If you plan to use a secondary NR-33000 board connect another
Ethernet cable from the NIC B jack to the network switch.
If the Trinix LAN is connected to the Internet, the connection should be
made through a firewall.
NIC A
connector
Ethernet switch
NIC B
connector
Trinix
MCPU frame
7000 SMS
PC
Ethernet
connector
