364 Trinix NXT — Installation and Service Manual
Section 9 — Protected Paths
Toggle Column
The Toggle column can be used to change from primary to secondary or
secondary to primary. In this case the
Toggle box is checked and the Enter
button has been selected.
Lock/Unlock Column
The Lock/Unlock column can be used to prevent the paths from being
modified or from switching. Lock/Unlock a path by clicking the paths
associated check box in the Lock/Unlock column. Clicking the associated
paths check box in the Lock/Unlock column again and clicking the
Enter
button will unlock the path.
Command Buttons
These buttons are located on the bottom of the Protected paths menu.

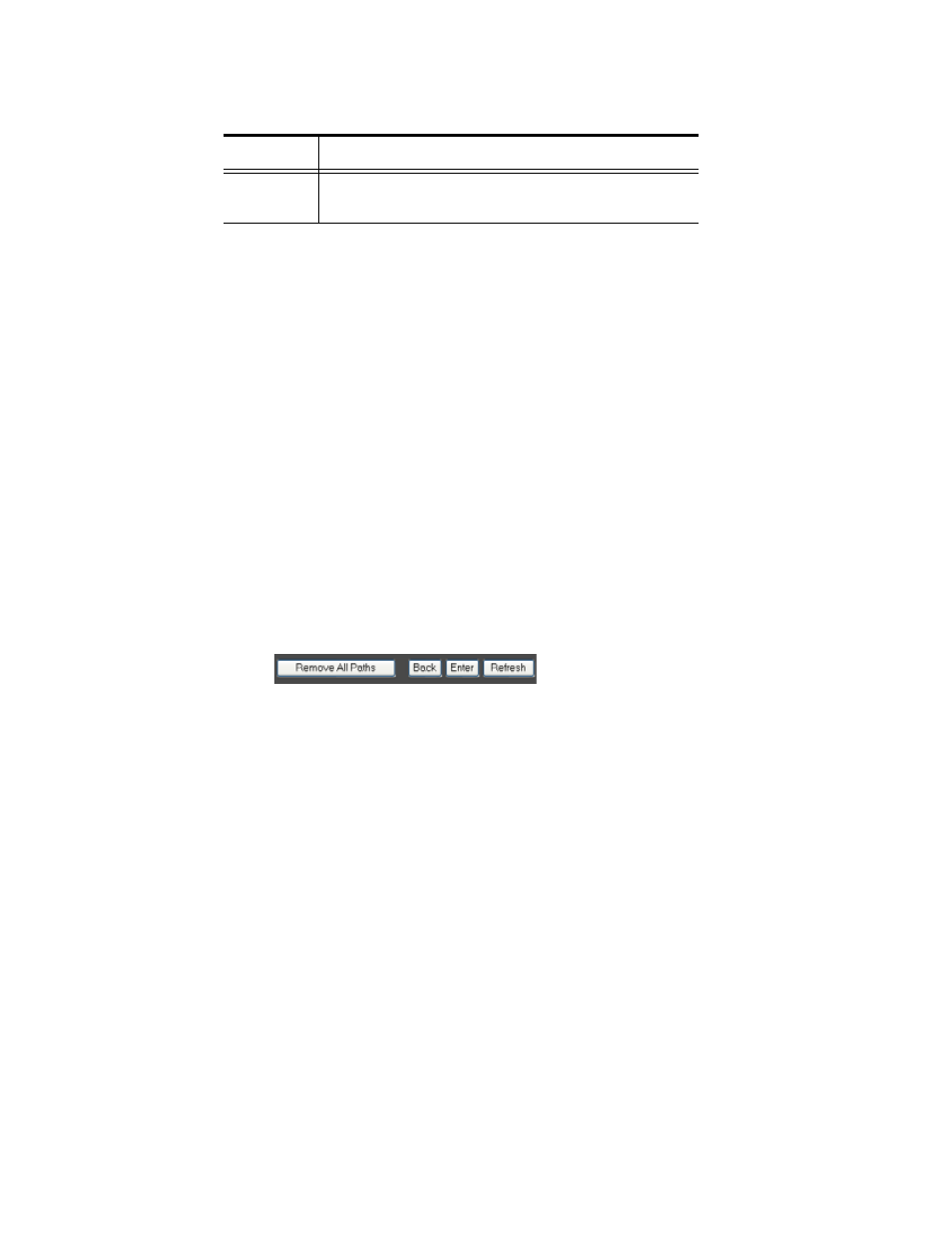

Figure 256. Command Buttons on Bottom of Protected Paths Menu
Remove All Paths
The Remove All Paths button will clear or un-assign, all primary and sec-
ondary path links.
CAUTION Pressing the Remove All Paths button clears the table immediately. There is
no “Undo” for this command.
Back
The Back button will return you to the Frame page.
Enter
The Enter button will apply the entered information. Whenever a config-
uration change is made, click this button to push the change to both
Broadlinx cards.
Black
A black status flag means that the output is not available because
a supported board is not present in that slot.
Table 112. Status Column Flag Colors
Flag Color Definition
