Trinix NXT — Installation and Service Manual 407

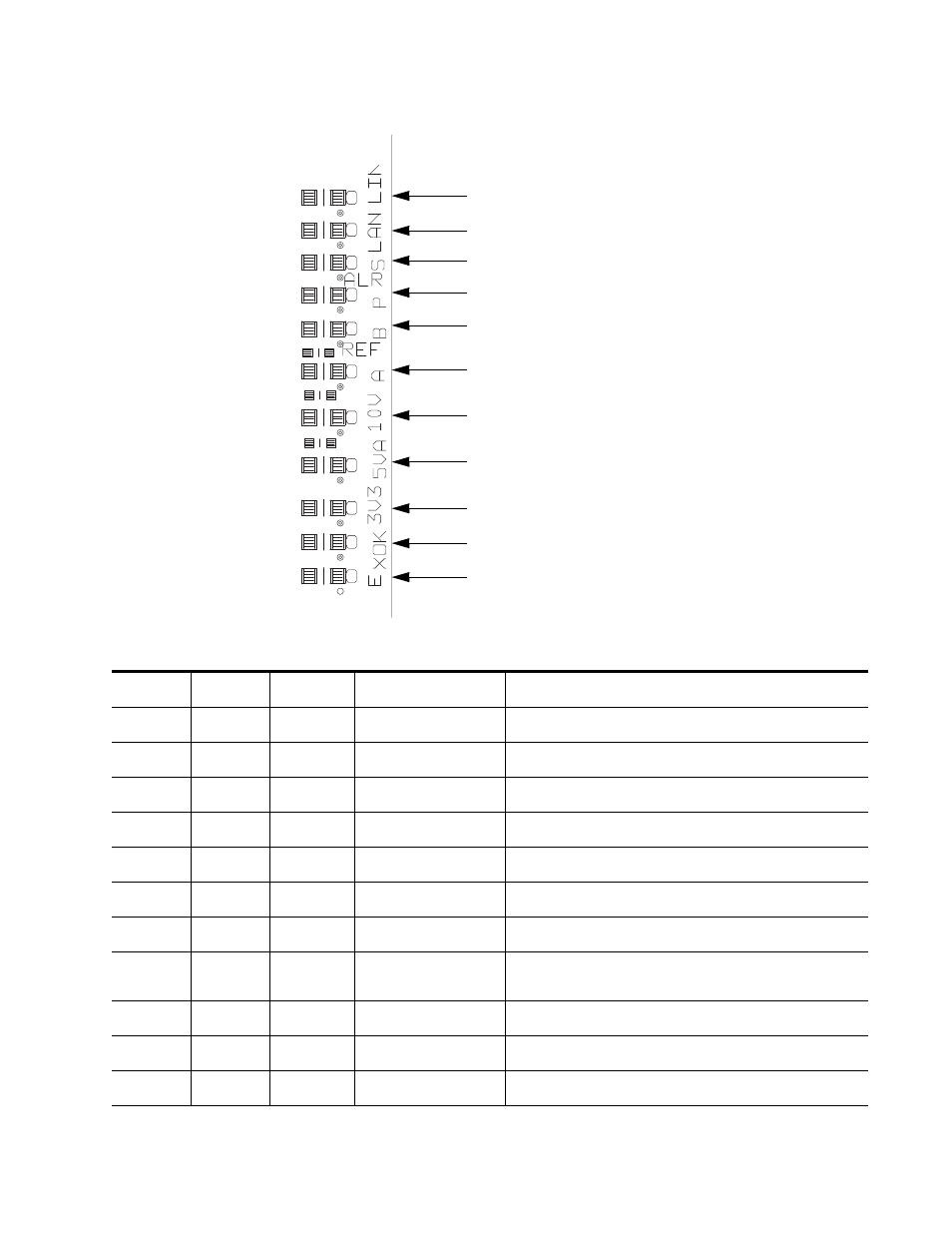

DIP side
11 - LAN link OK
10 - LAN activity
9 - Secondary alarm
8 - Primary alarm
7 - Reference B alarm
6 - Reference A alarm
5 - 10 V (A and B) Supplies OK
4 - 5 V A supply OK
3 - 3V3 supply OK
2 - Xilinx FPGA load complete
1 - Output monitor is active
Number Ref Display Meaning
1 USE DS Yellow Output monitor is active
2 XOK Green Xilinx load done
3 3V3 Green 3V3 supply OK
Off Check 3V3 supply
4 5VA Green 5 VA supply OK
Off Check 5 VA supply
5 10V Green 10 V (A and B) supplies OK
Off
10 V (A and/or B) supply alarm. Failure of both A and B will also trigger
PALARM.
6 A REF Yellow Reference A alarm
7 B REF Yellow Reference B alarm
8 PALR Red Primary alarm
