292 Trinix NXT — Installation and Service Manual
Section 6 — Broadlinx Software
Configuration
This Configuration section describes the steps that are needed to deploy
Broadlinx to meet your business needs. Each section title of the Configura-
tion page is described.
Opening the Configuration Page
1. Connect to the Routing switcher following the procedure described in
the
Simple Network Settings section on 286.
2. Click the Configure button at the bottom of the Main Broadlinx page. The
Configuration page will then open; this page should be similar to what
is shown in
Figure 200 .

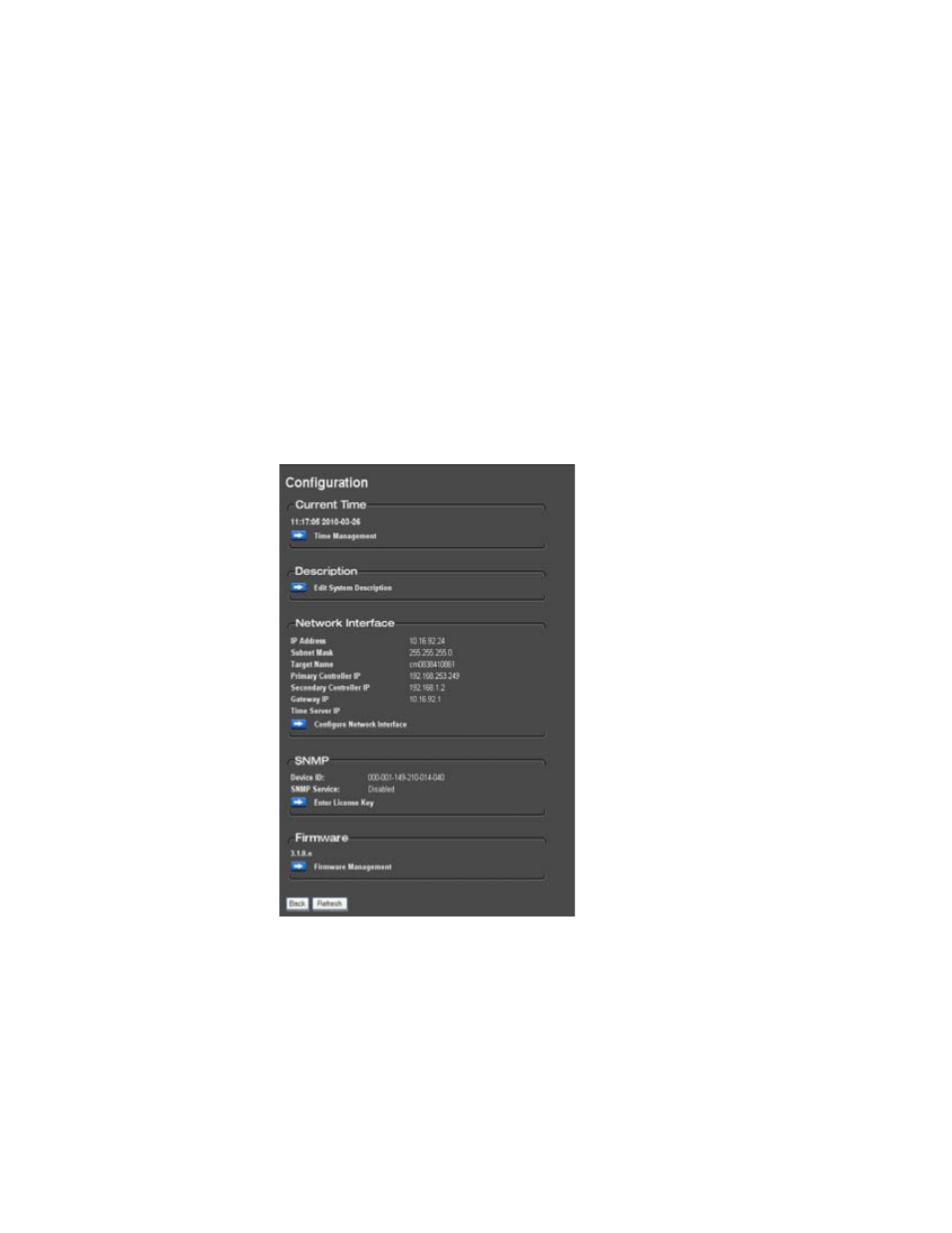

Figure 200. Configuration Page
Current Time
The Time settings are used only to timestamp the “Events” log entries.
Clicking the Time Management arrow button at the bottom of the Current
Time section ( Figure 201 on page 293 ) will open the Time management
screen, which is shown in Figure 202 .
