Trinix Matrix Identification from the NetConfig Software
Trinix matrices now support identification from the NetConfig tool. The ID
function is used to identify the physical location of the Trinix Matrix. This
feature is helpful in a facility with many matrices scattered across the
facility.
Follow these steps to identify a matrix:
1. Open the NetConfig application.
2. Right-click the preferred Trinix matrix listed on the tree view in the left
pane.
3. Select the Identify Device option in the pop-up context menu
(
Figure 235 ).

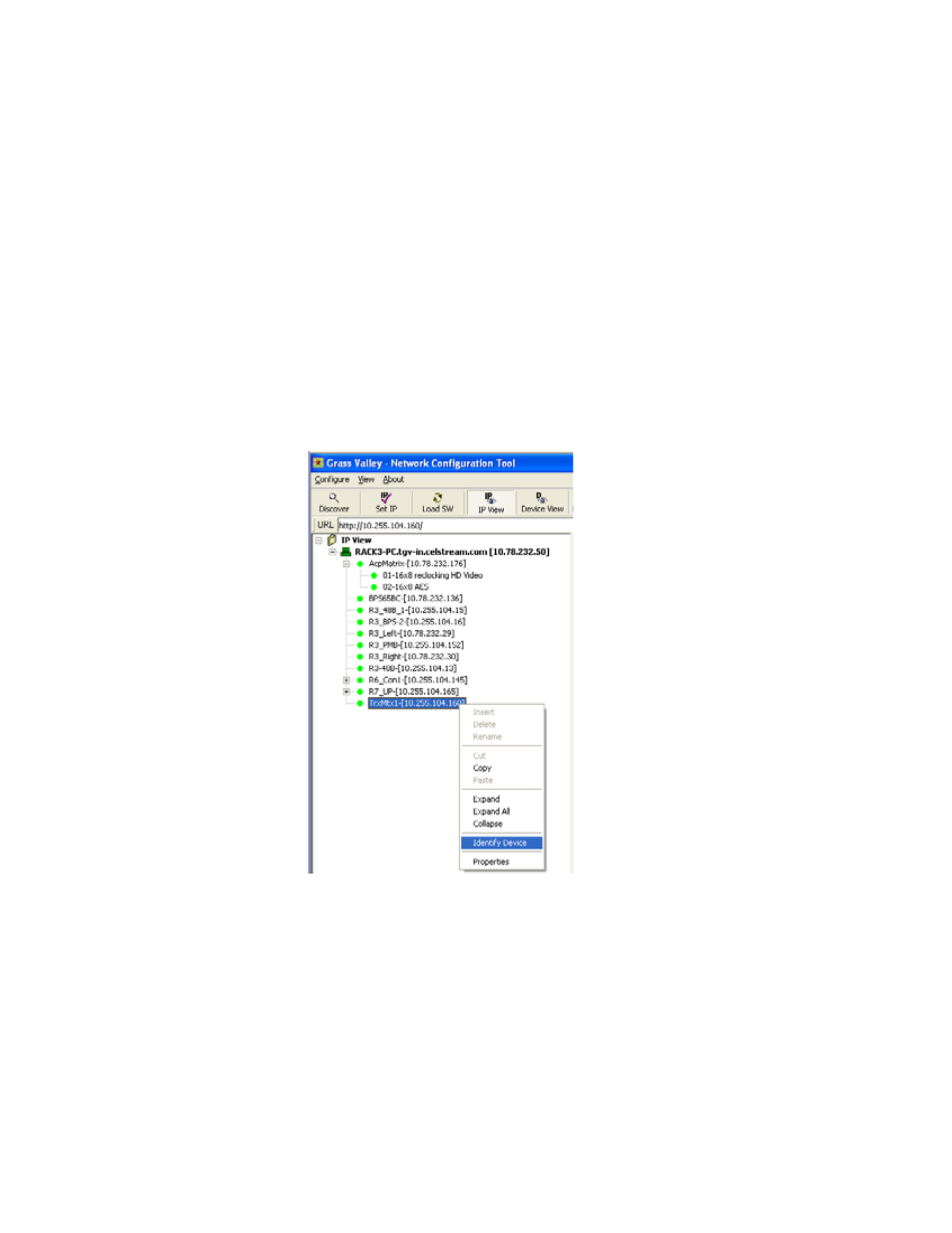

Figure 235. The Identify Device Option
4. The LED labeled on the Broadlinx card shall blink for the default setting
of 20 seconds and then returns to its previous state (
Figure 236 ).
