Trinix NXT — Installation and Service Manual 295
Configuration
4. The System description that you entered will now appear below the
Reload button.

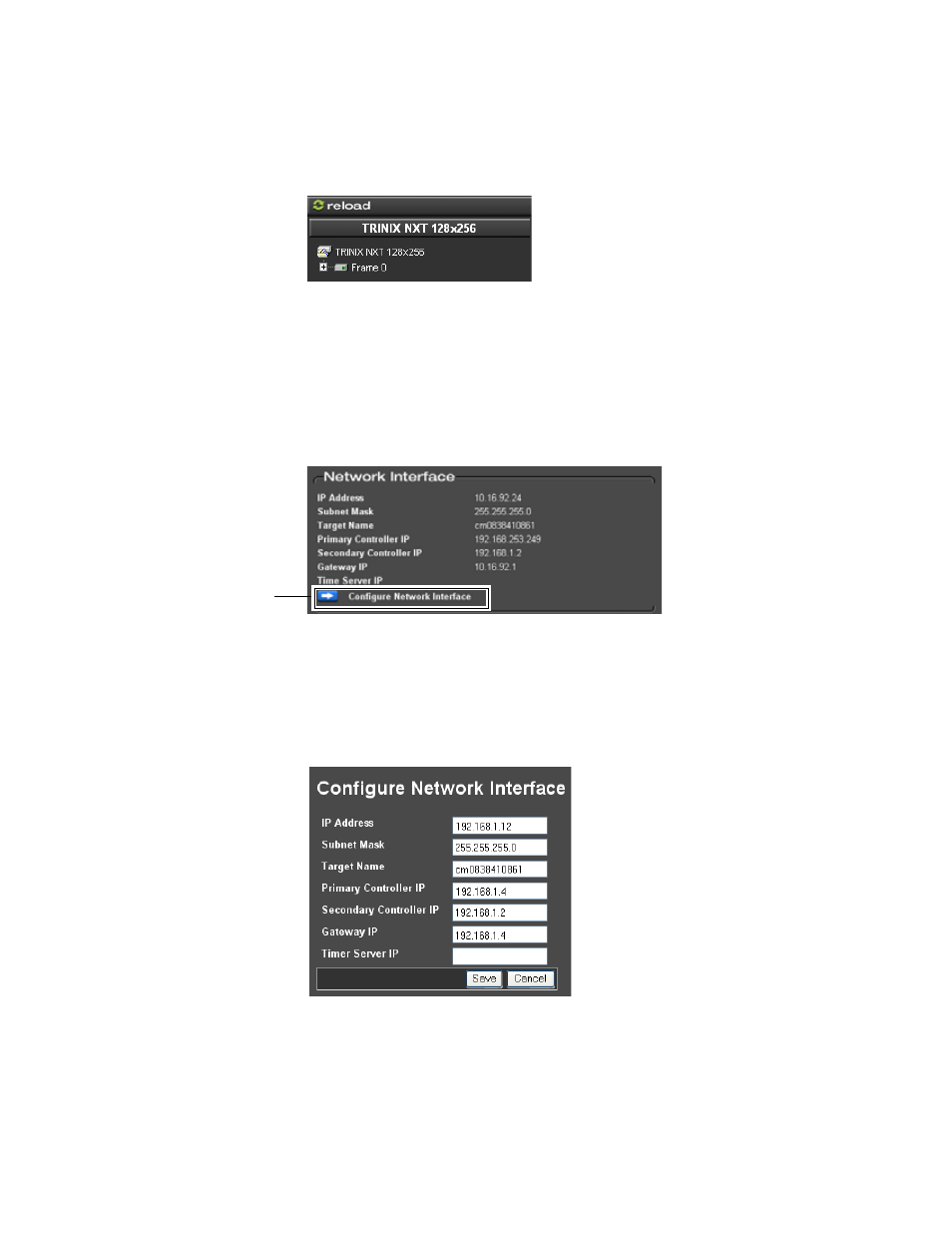

Figure 206. System Description
Network Interface
The Configure Network Interface page is where you enter the information
that is needed to access the Router network.
Follow these steps to configure the network settings:
Figure 207. The Configure Network Interface “Arrow”
1. Click the Configure Network Interface arrow button. The Configure
Network Interface page will then appear ( Figure 208 ).
2. Enter the information about your network in the respective fields.
Figure 208. Configure Network Interface
IP Address: This field assigns an IP address to the primary NR-33000.
This address must end with an even number. If an odd number is
entered, it will automatically be changed to the next higher number.
Click the Configure
Network Interface
arrow
