304 Trinix NXT — Installation and Service Manual
Section 6 — Broadlinx Software

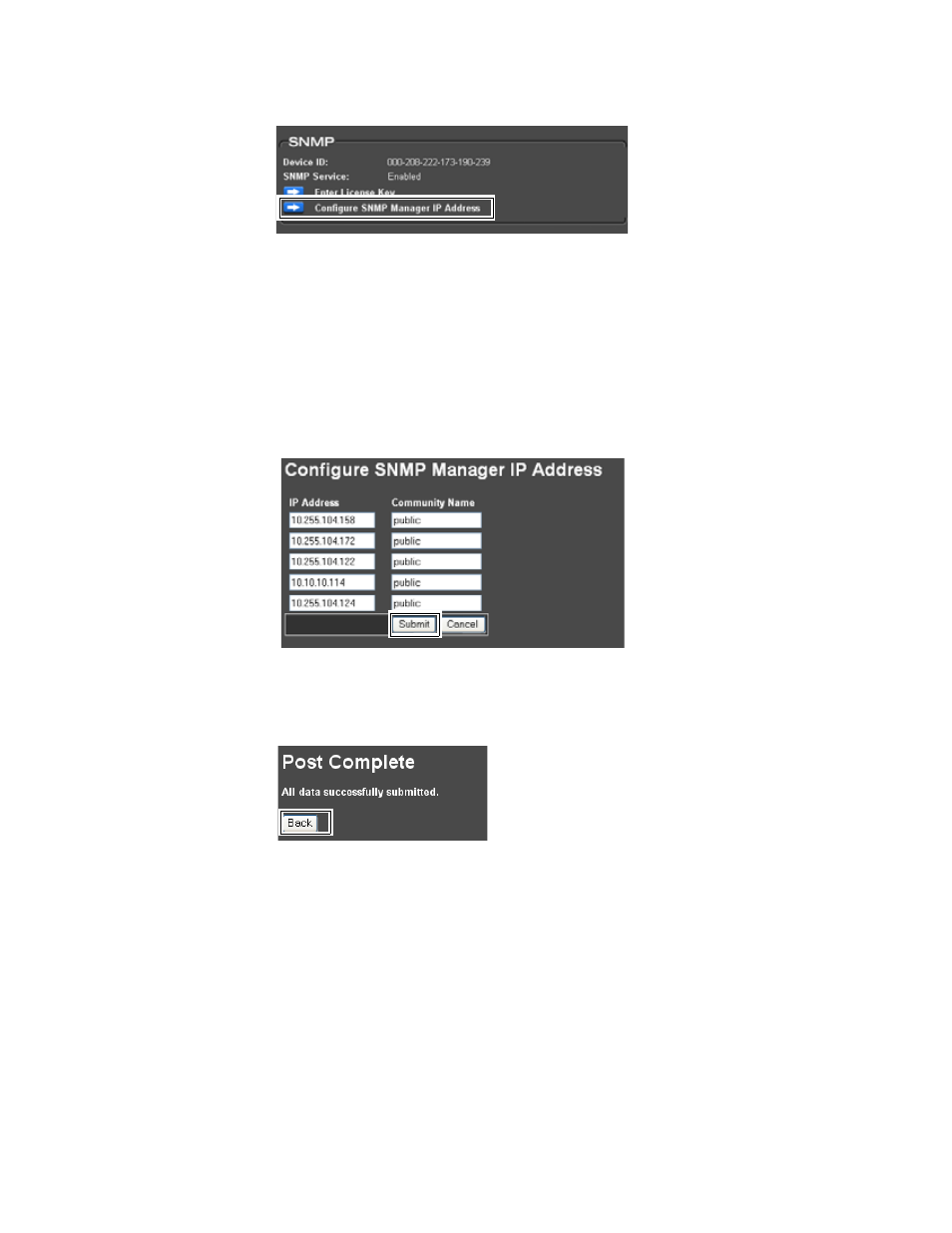

Figure 214. The SNMP Section of the Configuration Web Page
The Configure SNMP Manager IP Address page will then appear.
2. Enter the Appropriate IP Addresses and Community names in the
respective fields. The IP Addresses shown in
Figure 215 are for
demonstration purposes only.
3. Click the Submit button to save and apply the changes ( Figure 215 ). The
IP address shown is for example only.
Figure 215. The Configure SNMP Manager IP Address Page
The Post Complete page will then appear.
Figure 216. The Configure SNMP Manager IP Address Page
Clicking the Back button will return to the Configure SNMP Manager IP
Address page. The submitted changes will not be affected.
Configuring Input Signal Loss Notifications
Input Signal-Loss SNMP notifications are configured using the Broadlinx
Web pages. The Signal-Loss settings are ONLY available if you have a valid
