Trinix NXT — Installation and Service Manual 57
Trinix Frames

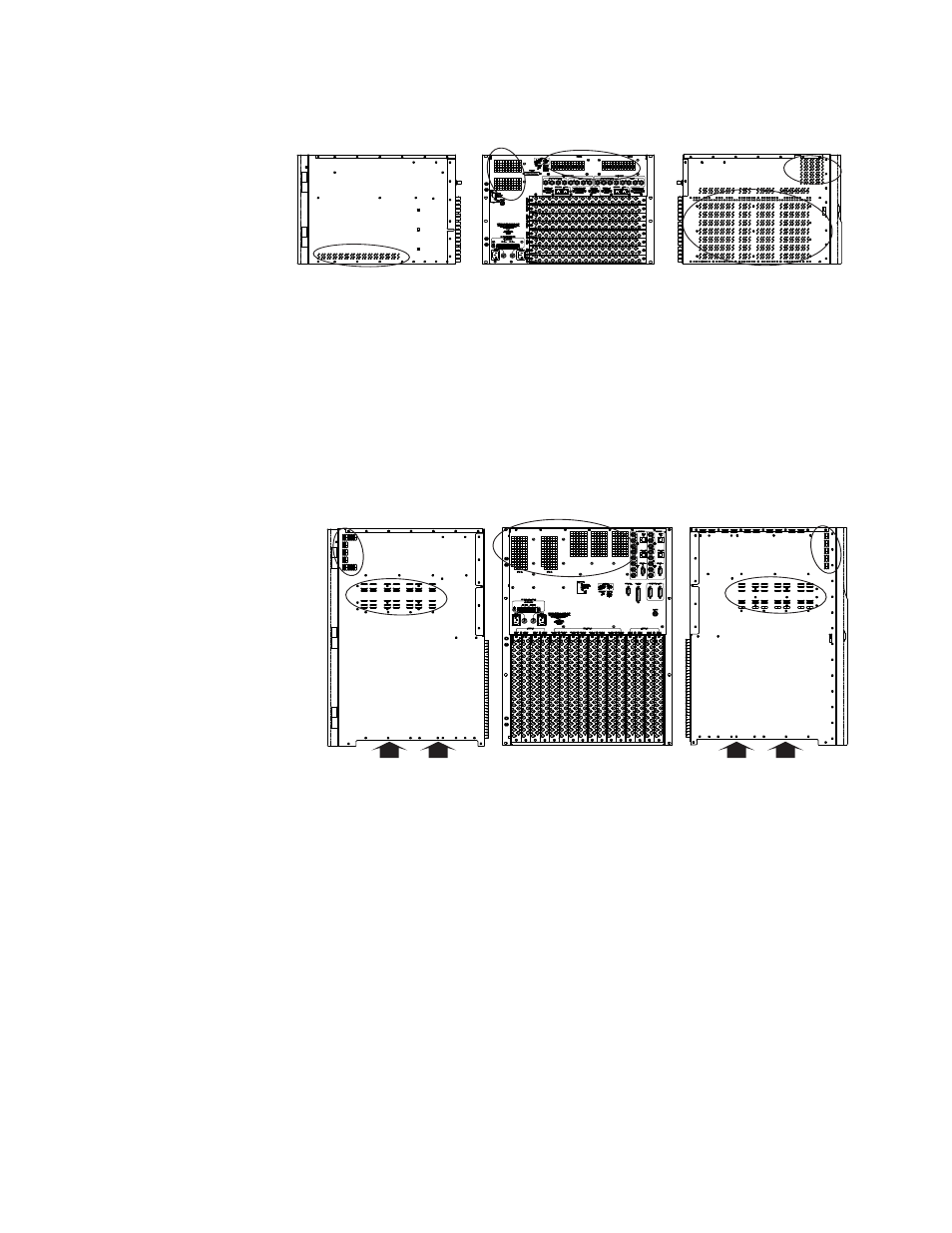

Figure 19. Airflow Openings for TRX-NXT-128x128 Frame.
Airflow openings for the 256 and 512 frames are shown in Figure 20 and
Figure 21 . Air is taken in from the bottom of the frame (cut-outs are located
on the very bottom of the sides), and from the central area of the left and
right sides. The air is drawn to the top rear of the frame, across all of the
Input and Output boards as well as the Matrix boards, and then expelled
out the back of the router.
Figure 20. Airflow Openings for TRX-NXT-256x256 Frame.
Right side Rear Left side
IN
IN
IN
OUT OUT
Right side Rear Left side
IN
IN
IN
OUT
IN IN
IN
