Chapter 2 Using the Profile Configuration Manager
82 Profile Family
Digital Audio Output
To change the digital audio signal name and transmit group:
1. Select Audio Output from the configuration tree, and then click or double-
click a digital audio name from the list.

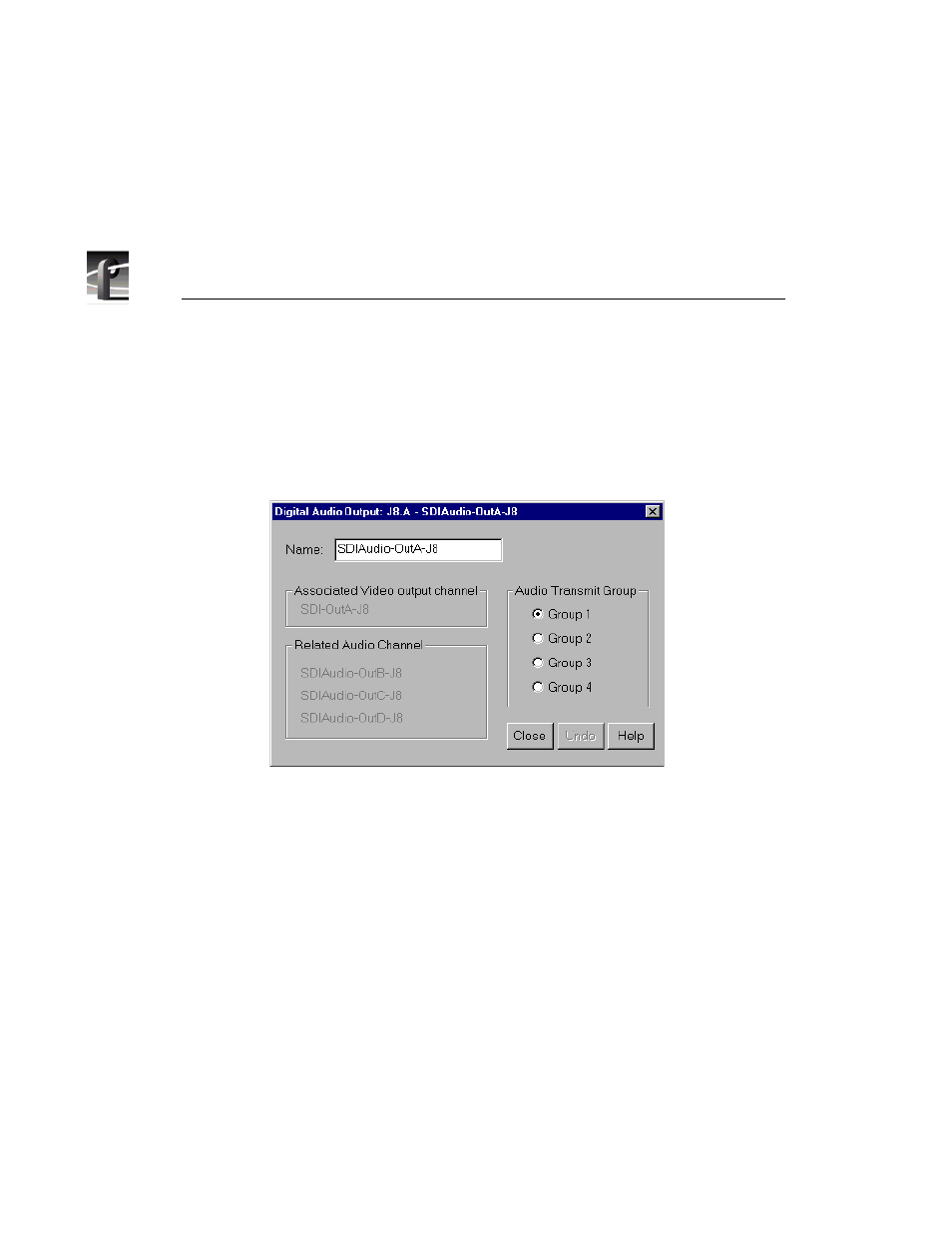

Figure 30. Digital Audio Output dialog box
2. Enter a new signal name in the Name box—Audio_Out_1, for example.
Names can be up to 30 characters, and can include spaces. The window title
bar name and the configuration tree name automatically change as you enter
the new name. To return a renamed signal to the default, delete all the
characters in the text field, and press Enter.
3. ²Click a group name (1–4) under Audio Transmit Group to change the audio
transmit.
4. Associate Video Output Channel lists the name of the associated video
output channel.
5. ²Related Audio Channels lists the audio channels that are related to the
signal name.
6. Click Undo to return the signal name to its original name.
7. Click Close .
