Grass Valley PROFILE FAMILY v.2.5 - Manual (Page 162)

Chapter 4 Using VdrPanel
162 Profile Family
Comm Port dialog box appears automatically the first time you select a Louth,
Odetics, or BVW controller (see “Selecting a Communications Port” on page
163).
NOTE: The Controller | Manage Archive menu command is
available under special circumstances in Louth Automation. Contact
your Grass Valley Group representative for more information.
To select a controller:
1. Click a panel to make it active.
2. Choose Controller | Select to open the Controller Setup dialog box (Figure
77).
3. Select the controller for the channel, such as Louth Automation.
4. Click OK .

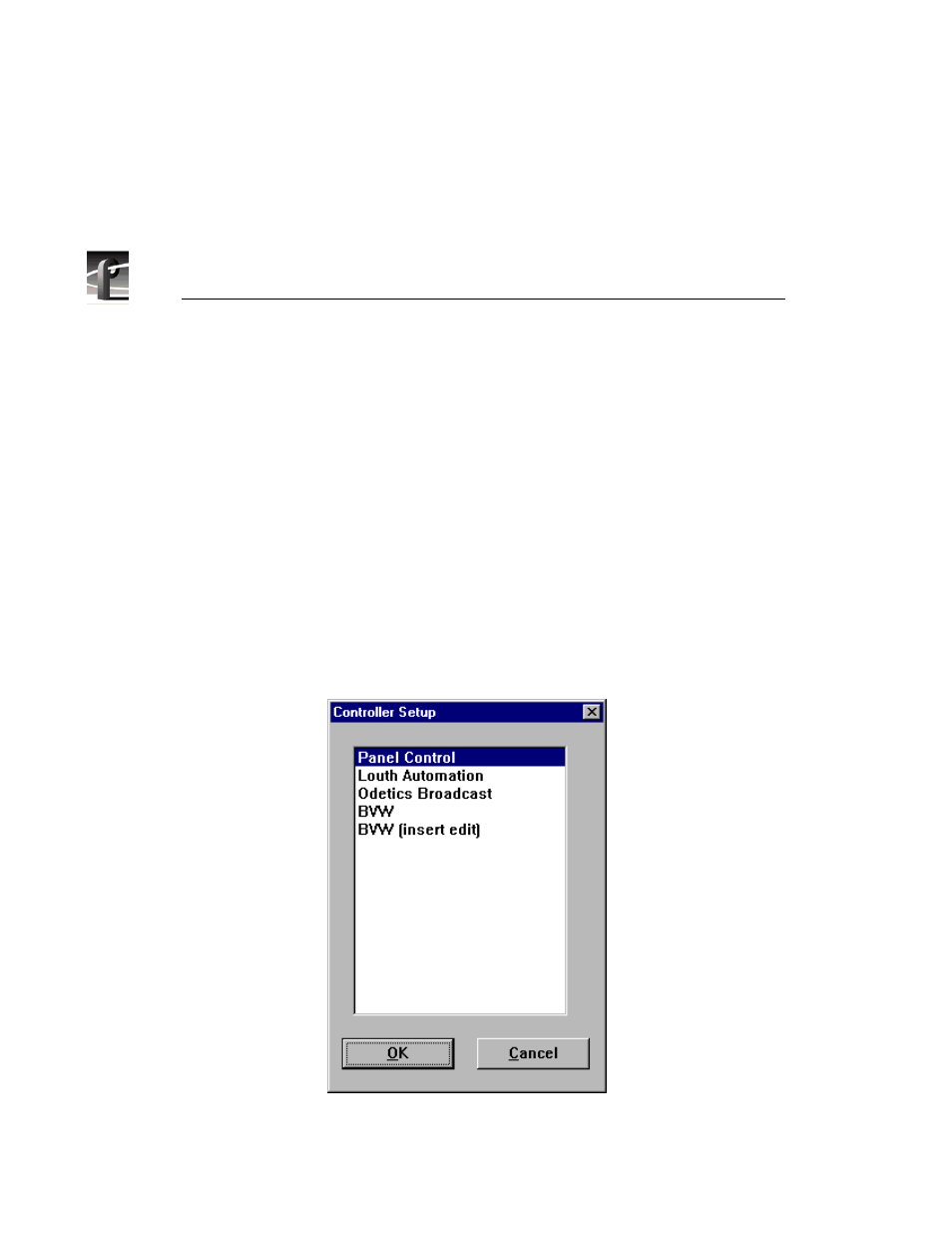

Figure 77. Controller Setup dialog box
