Analog Composite Monitor Output
Profile Family 71
Analog Composite Monitor Output
To open the Analog Composite Monitor Output dialog box:
1. Select Video Output from the configuration tree, and then click or double-
click a monitor output from the list, such as Monitor-Out-J12. The Analog
Composite Monitor Output dialog box appears (see Figure 23).

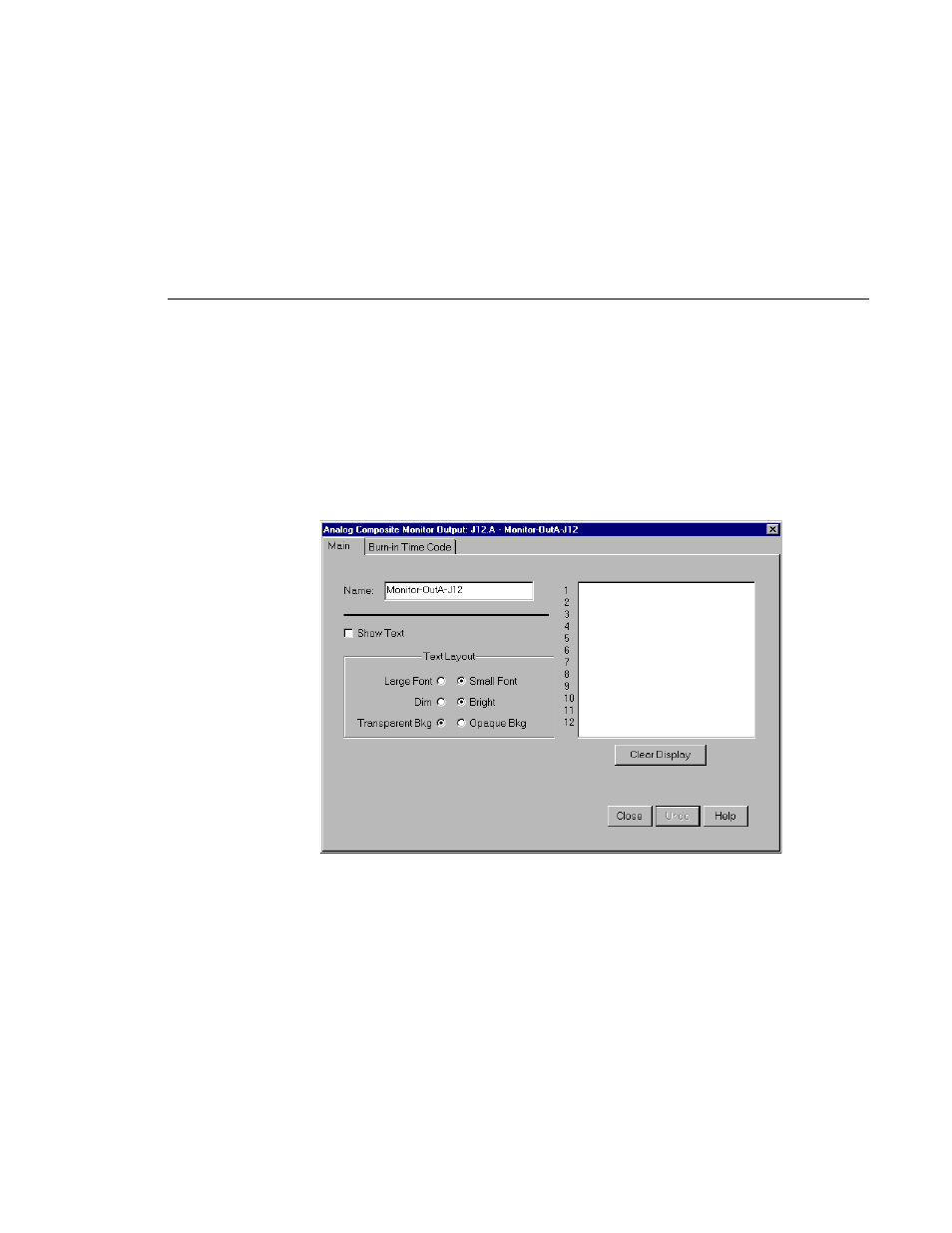

Figure 23. Analog Composite Monitor Output dialog box, Main tab
2. Enter a new name in the Name box to change the signal name. For example,
you could rename it to Monitor_1. Names can be up to 30 characters, and can
include spaces. To return a renamed signal to the default, delete all the
characters in the text field, and press Enter.
3. Click Show Text to display text on an attached monitor . Displaying text on
a monitor is good way to help identify where the output is coming from.
4. Under Text Layout , you can select either a small or large font, a dim or
bright white character display, and a transparent or opaque background for
the lettering. With the small font, you get twelve lines and twenty-four
columns; with the large, you get six lines and thirteen columns.
