Chapter 2 Using the Profile Configuration Manager
52 Profile Family
Video Input
You may have analog composite, component analog (CAV), or serial digital
component video inputs installed in your Profile system. The steps to configure
video inputs follow.
Analog Composite Video Input
The indicators at the top of the dialog box show the current status of the analog
composite video input. The indicators are
VITC Present , Input Locked , and
Auto Timed (also Burst Present for earlier analog composite cards). A green
light indicates that a status is on. These are indicators and cannot be edited.
To configure analog composite video input:
1. Select Video Input from the configuration tree, and then click or double-
click an analog composite input from the list, such as Composite-InA-J5. The
Analog Composite Video Input dialog box appears (Figure 12 for current
analog composite cards and Figure 13 for earlier cards).

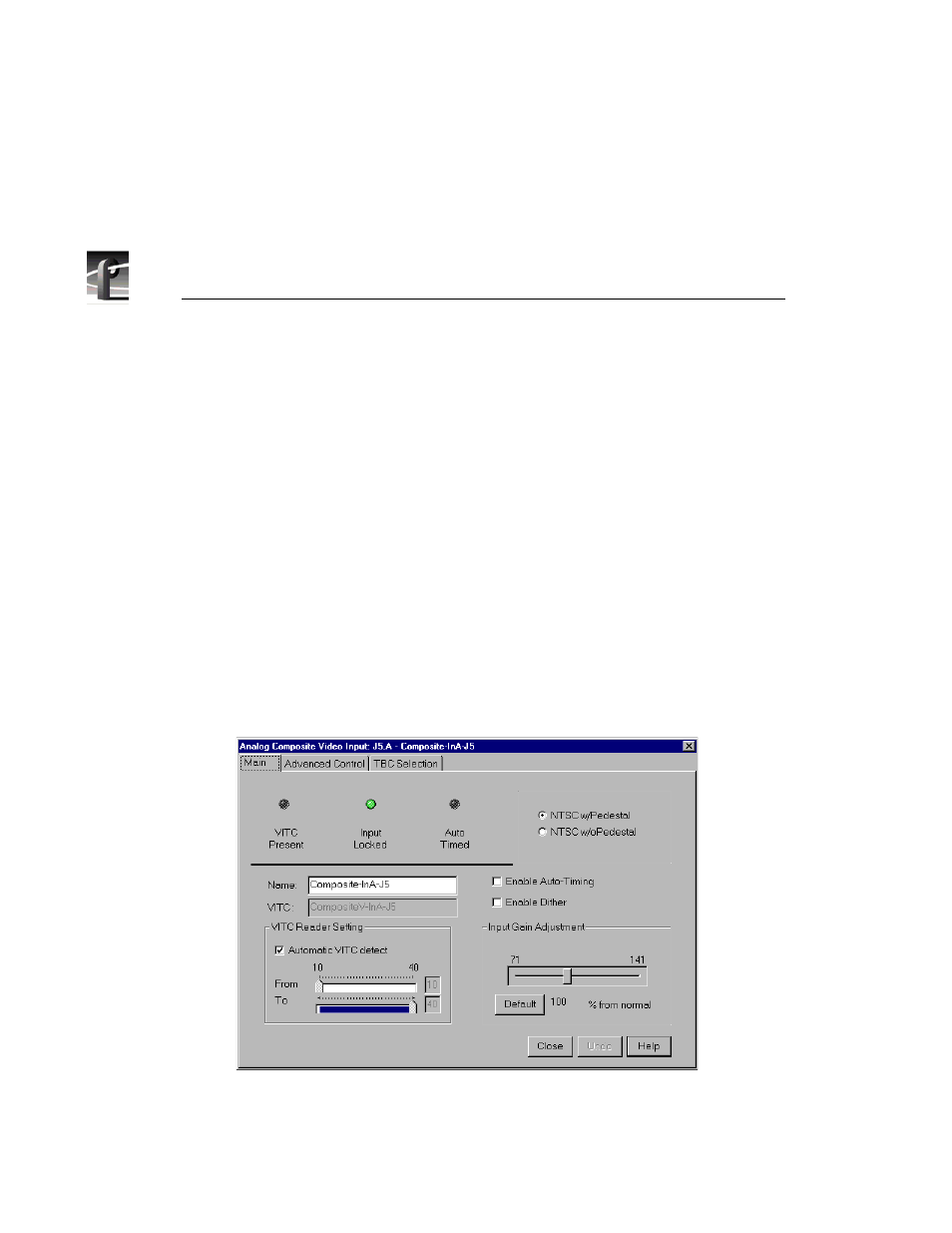

Figure 12. Analog Composite Video Input dialog box, Main tab (A)
