Using the Profile Configuration Manager
The P rofile Configuration Manager provides an easy-to-use interface that
streamlines the set up of reference genlock, video and audio inputs and outputs,
system timing, and timecode for your Profile video disk recorder. The
configuration tree allows you to open the specific configuration dialog boxes
that control the settings. A graphic representation of the Profile rear panel at the
bottom of the Configuration Manager window shows which boards are
installed. The Configuration Manager window appears in Figure 3.

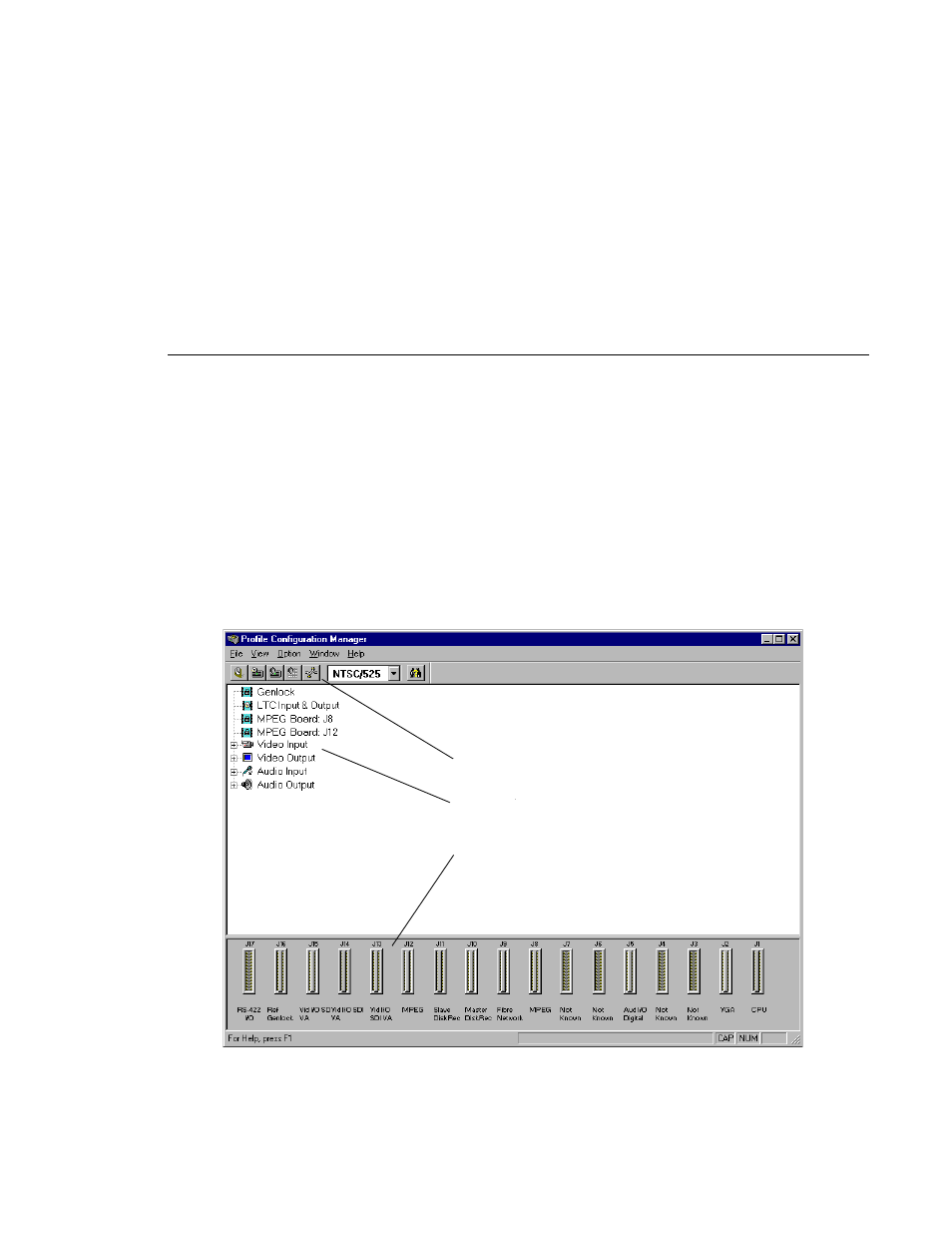

Figure 3. Profile Configuration Manager window
Configuration tree
Profile rear panel representation
Toolbar
