Chapter 2 Using the Profile Configuration Manager
66 Profile Family
Serial Digital Component Video Input Advanced
The Advanced tab allows you to determine whether the EDH (Error Detection
and Handling) packet is present, which audio groups (1–4) are present, and
which errors are present: Full Field (FF) CRC or Active Picture (AP) CRC, plus
parity and checksum errors.
To reset EDH for serial digital video input:
1. Click the Advanced tab to view the Serial Digital Component Video Input
Advanced settings.

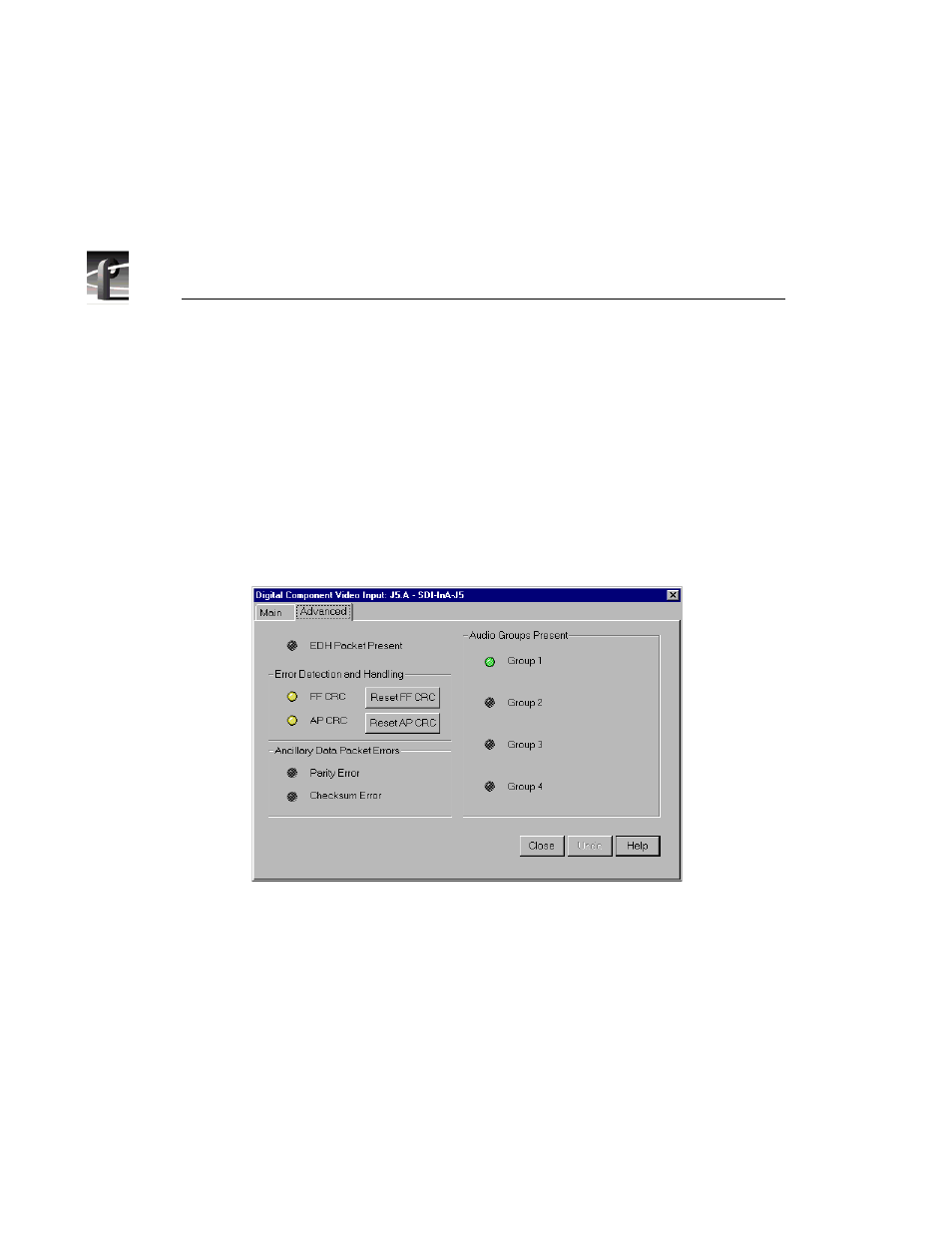

Figure 20. Serial Digital Component Video Input, Advanced
2. Click Reset FF CRC to reset Full Field errors or Reset AP CRC to reset
Active Picture errors.
3. Click Undo to undo the resets.
4. Click Close to exit.
