Chapter 2 Using the Profile Configuration Manager
76 Profile Family
Serial Digital Component Video Output Advanced
To change error detection settings for serial digital video output:
1. Click the Advanced tab to view the Serial Digital Component Video Output
Advanced settings (see Figure 26).

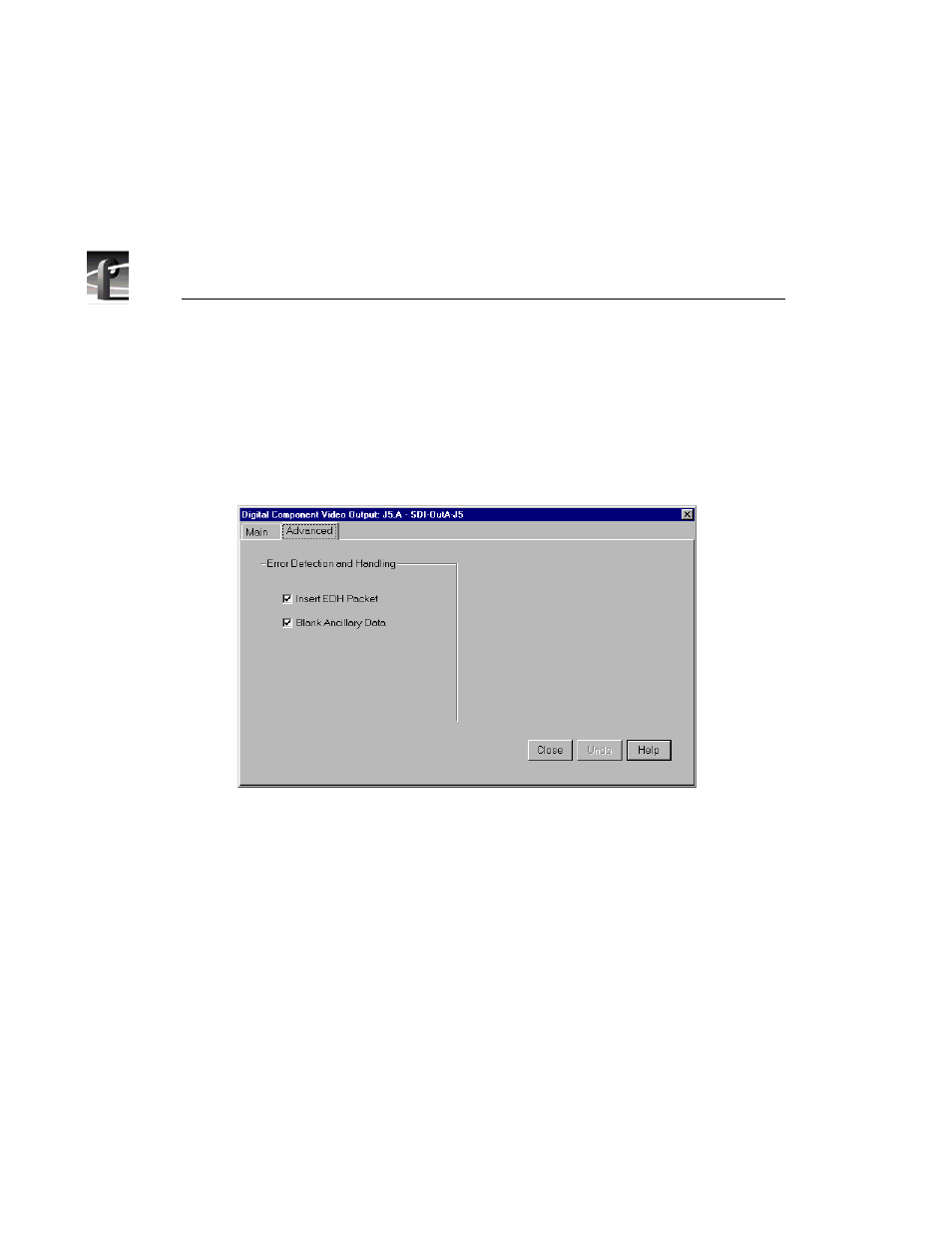

Figure 26. Serial Digital Video Output dialog box, Advanced tab
2. Click Insert EDH Packets to insert Full Frame CRC and Active Picture
CRC into the video stream.
3. Click Blank Ancillary Data to insert ancillary data information into the
video stream.
4. Click Undo to return the values in the dialog box to their original settings.
5. Click Close to accept the changes.
