Using a Live Feed
Profile Family 297
Using a Live Feed
To further automate station operation, you can integrate live feeds into your
lists. For example, you may want to broadcast a live event, inserting stored
commercials at appropriate times.
1. Open the list that you want to add a live event to.
2. Choose File| New Event | Switch and the New Switch Event dialog box
appears, as shown in Figure 140.

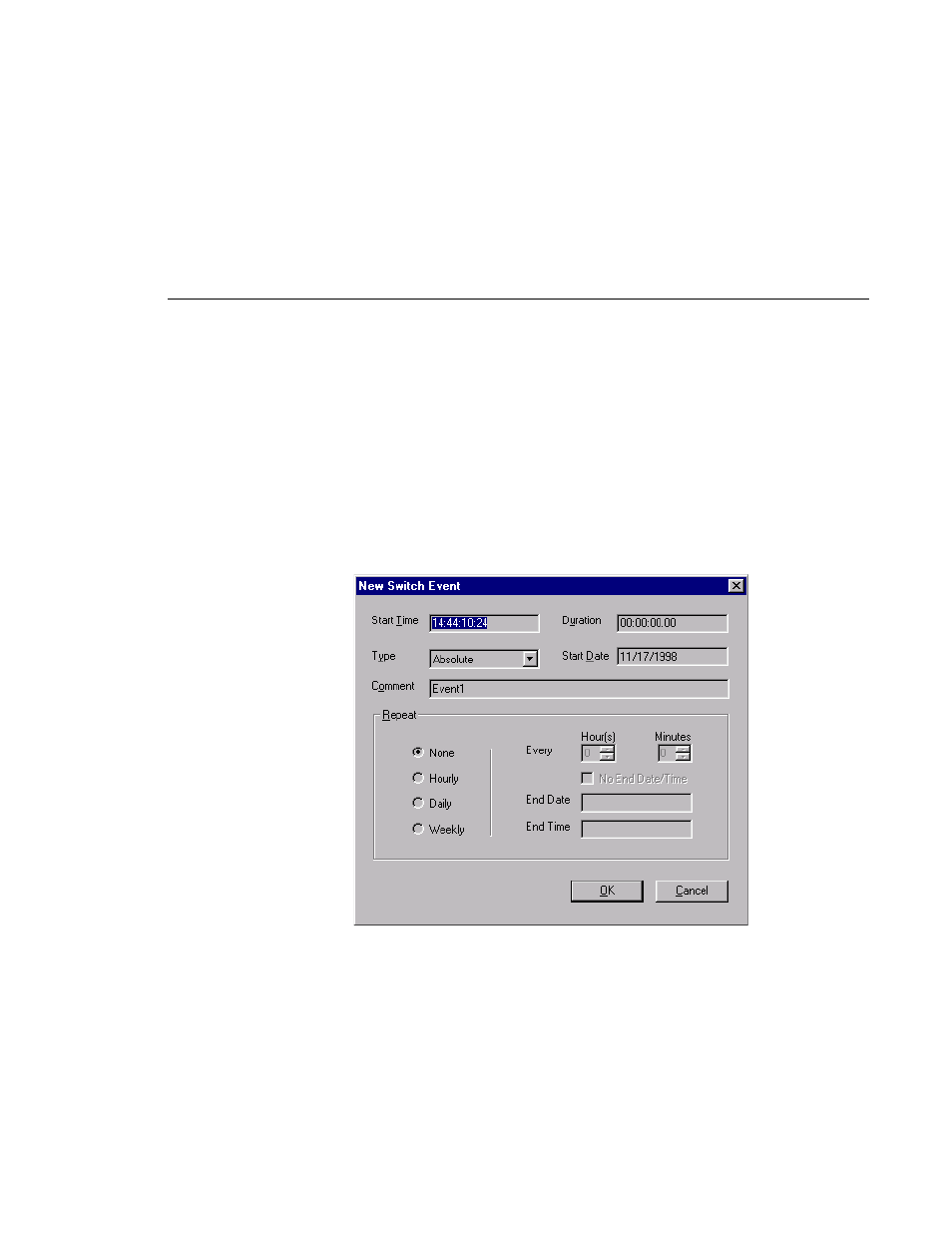

Figure 140. New Switch Event dialog box
3. In the New Switch Event dialog box, enter all the event information as
described in “Changing Event Settings” on page 289. This will set the cross-
point switch for the channel so that your video input is routed directly to the
output. In a PDR100, audio inputs are not routed to audio outputs for switch
events; however, they are routed to audio outputs in the PDR200 and
PDR 300.
4. Click OK .
