Viewing the Media Hierarchy
Profile Family 113

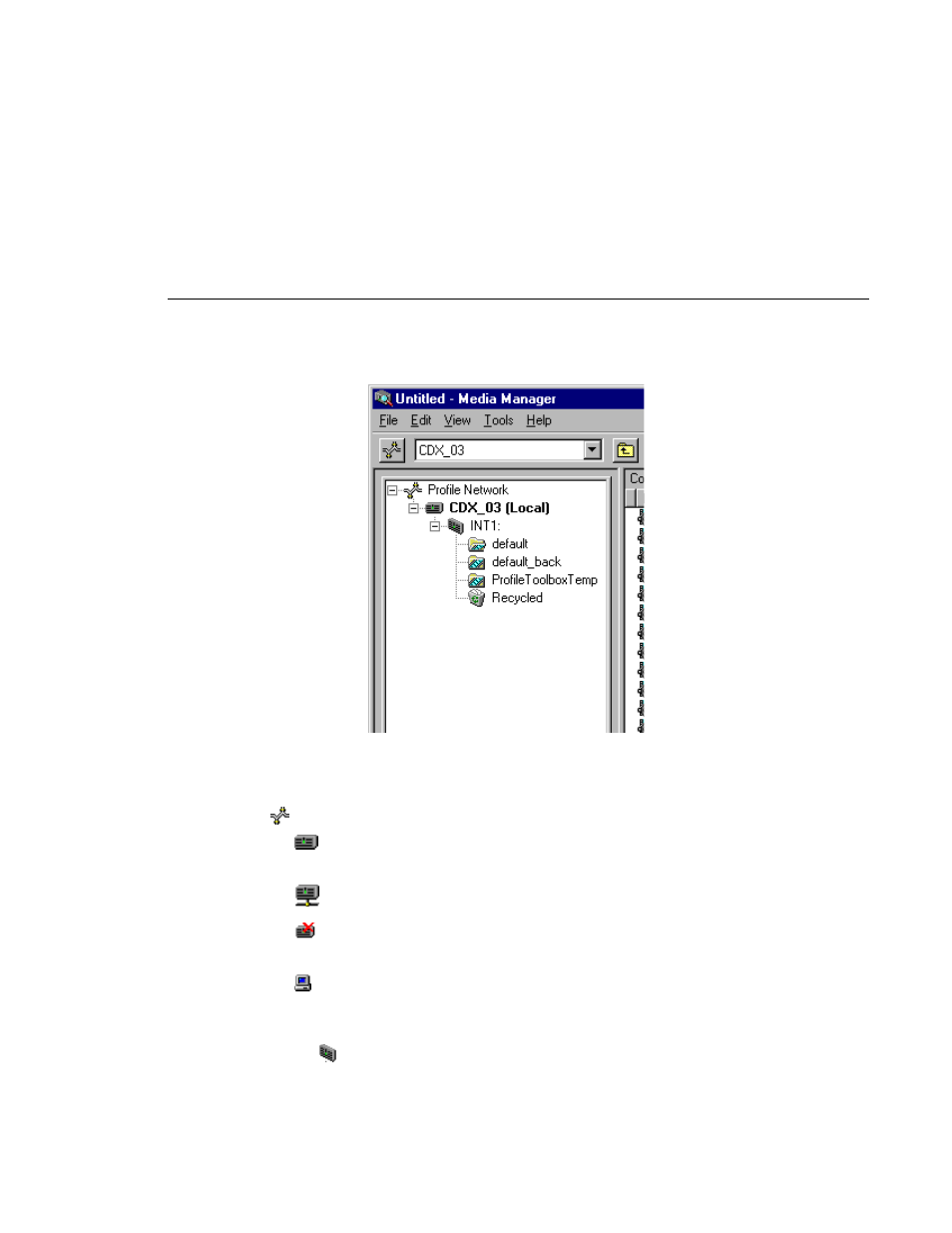

Figure 49. The Media Manager tree pane
The icons shown in tree pane are explained in more detail here.
The Profile network icon is the root for all other items in the tree pane.
Profile machines. Each icon is labeled with the Profile machine’s name.
A Profile can be a local machine or one connected via Ethernet alone.
A Profile machine connected via Ethernet and Fibre Channel.
An unconnected machine icon. Appears if no connection could be
made. This icon cannot be expanded.
A non-Profile server that recognizes Media Manager connection
requests. Media may be copied to this server from other machines on the
Fibre Channel network.
A volume. A machine’s storage is divided into one or more volumes.
The volume icon represents a physical set of disks—either an
internal disk set, and external expansion box (such as the PDX 208),
or a RAID disk array (PRS 200).
