Setting Timecode Crosspoints
Profile Family
179
• Timecode outputs (top-right corner) represent either LTC output connectors
on the back panel, or VITC output signals. Timecode outputs can be
connected to timecode recorders for playback of recorded material from
disk, to timecode inputs, or to timecode generators.
1. Select
Window | Timecode Crosspoint
to open the Timecode Crosspoint
dialog box. The green boxes indicate the current connections. For example,
a green box at the intersection of
TCRec#1
and
GenlockVITC-InA-J16
indicates the timecode signal from the back panel input is recorded by
timecode recorder #1.

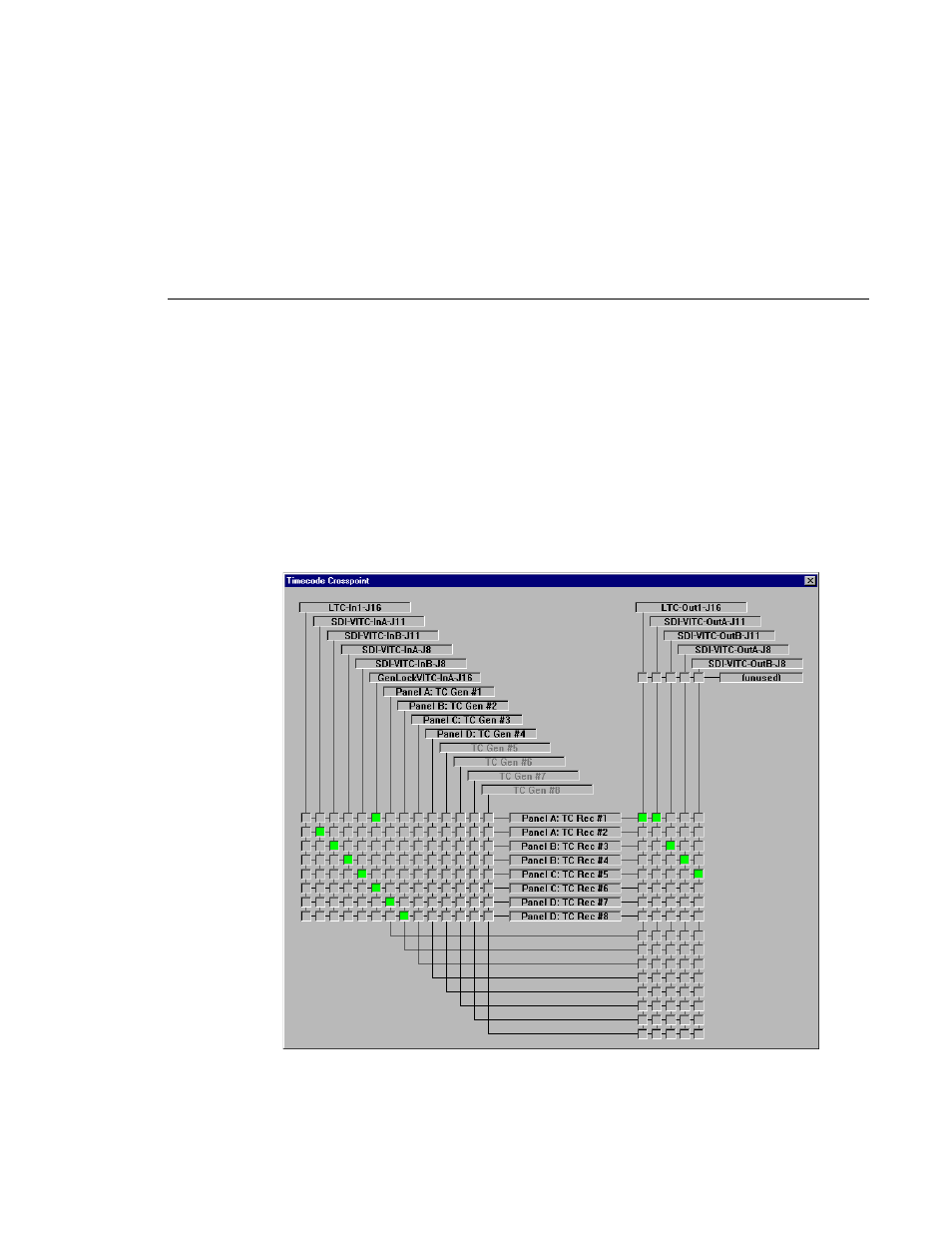

Figure 86. Timecode Crosspoint dialog box
2. To assign a crosspoint, click in the intersection between the signal and the
recorder channel. The selections turn green.
