Grass Valley PROFILE FAMILY v.2.5 - Manual (Page 102)

Chapter 2 Using the Profile Configuration Manager
102 Profile Family
Setting Up Fibre Channel Networking
If you have a Fibre Channel board in your Profile unit and you are part of a
Fibre Channel Profile network, you must configure the board with an IP
(Internet Protocol) address and other optional settings. Configuration Manager
allows you to do this with the Fibre Channel Networking command.
To configure your Fibre Channel board:
1. Choose Option | Fibre Channel Networking or click the Fibre Channel
Networking button on the toolbar. The Fibre Channel dialog box appears
(see Figure 45).

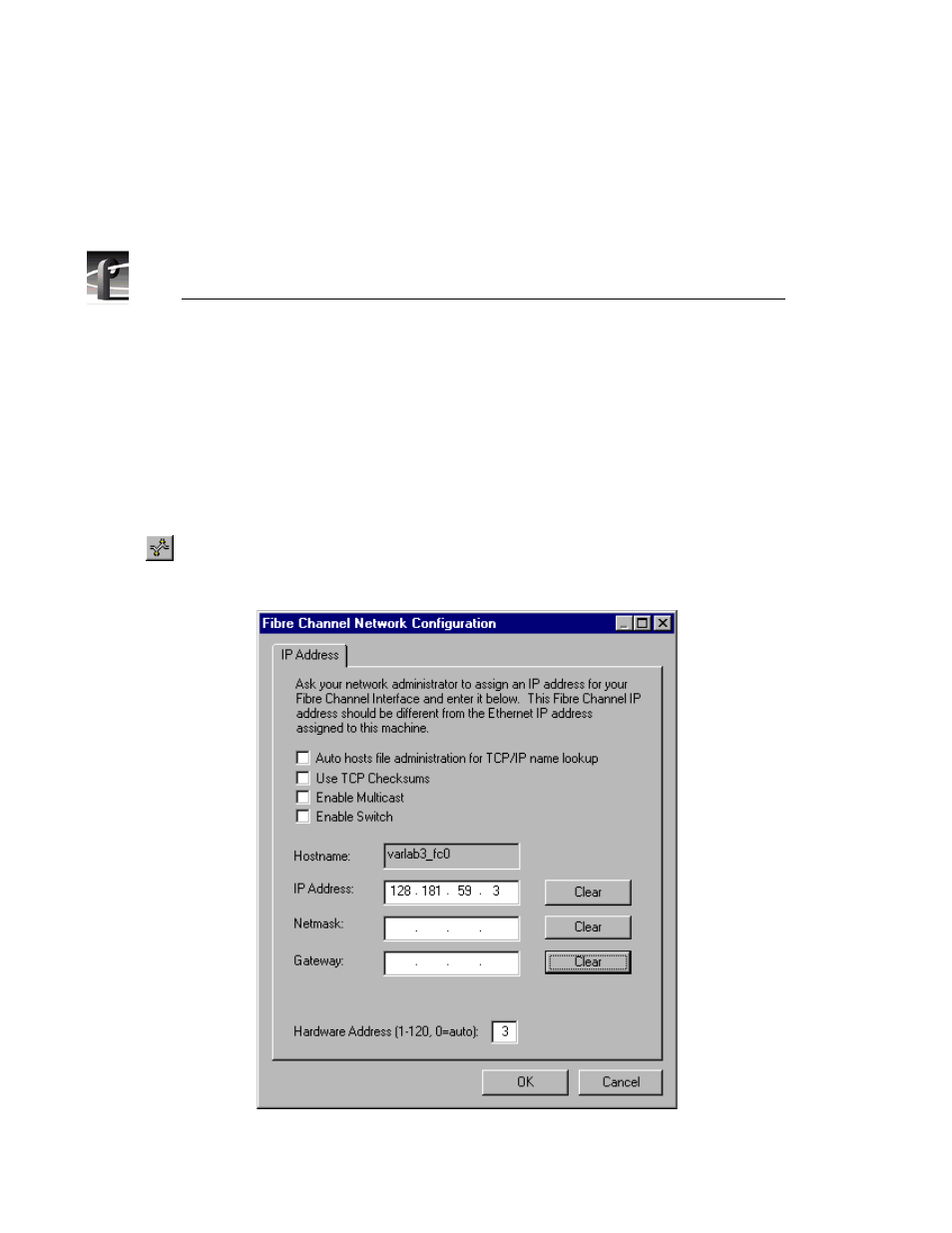

Figure 45. Fibre Channel Network Configuration dialog box
