Chapter 4 Using VdrPanel
176 Profile Family

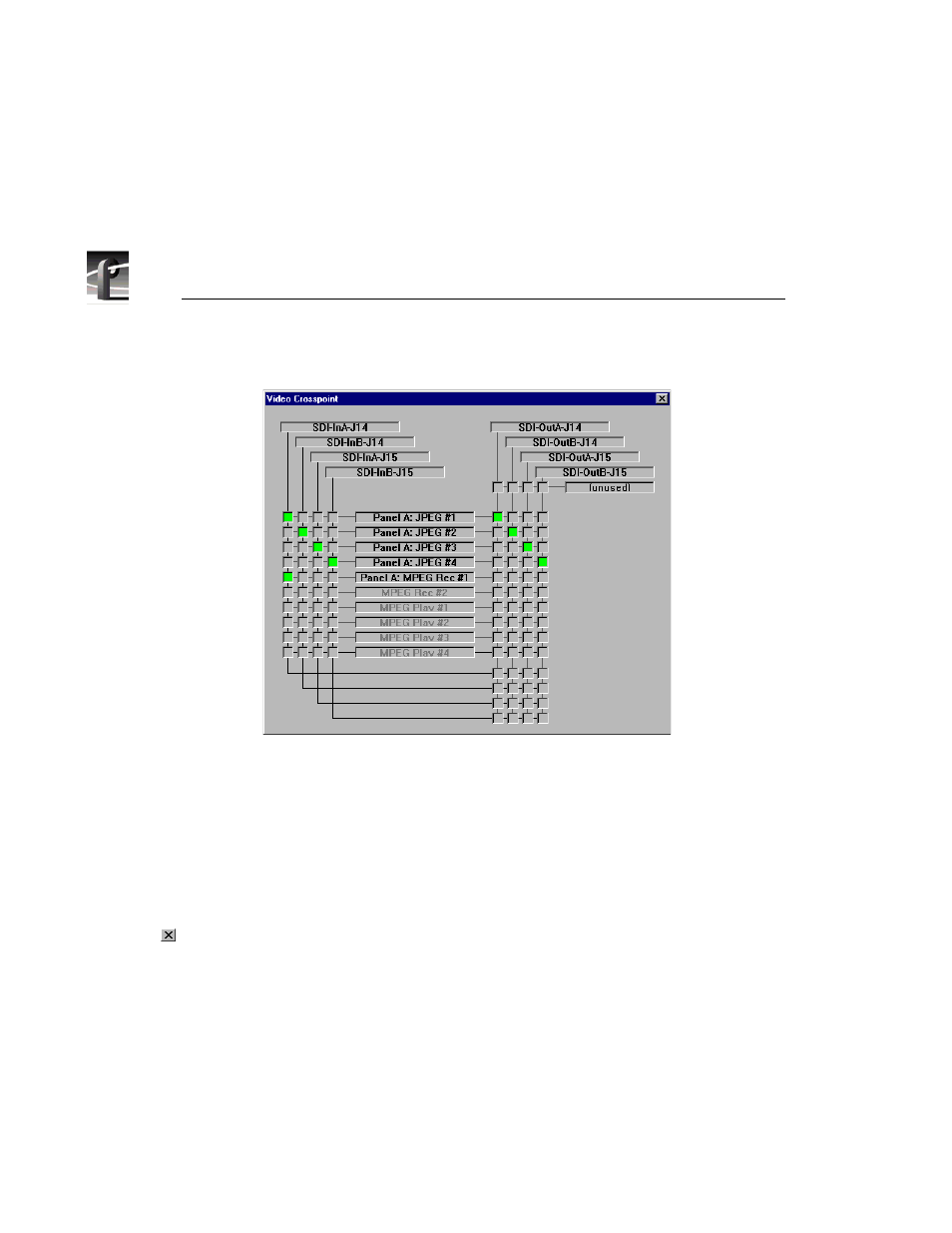

Figure 84. Video Crosspoint dialog box
2. To assign a crosspoint, click in the intersection boxes between a video signal
and a JPEG codec, MPEG encoder, or MPEG decoder. The selection boxes
turn green. You can also select a video signal, and while holding down the
left mouse button, stretch a line to the desired resource.
NOTE: Verify that you have the appropriate BNC connections on the
rear panel.
3. Click the Close button.
