Chapter 2 Using the Profile Configuration Manager
74 Profile Family
Serial Digital Component Video Output
To open the Serial Digital Component Video Output dialog box:
1. Select Video Output from the configuration tree, and then click or double-
click a digital component output from the list, such as SDI-OutA-J5. The
Serial Digital Component Video Output dialog box appears (see Figure 25).

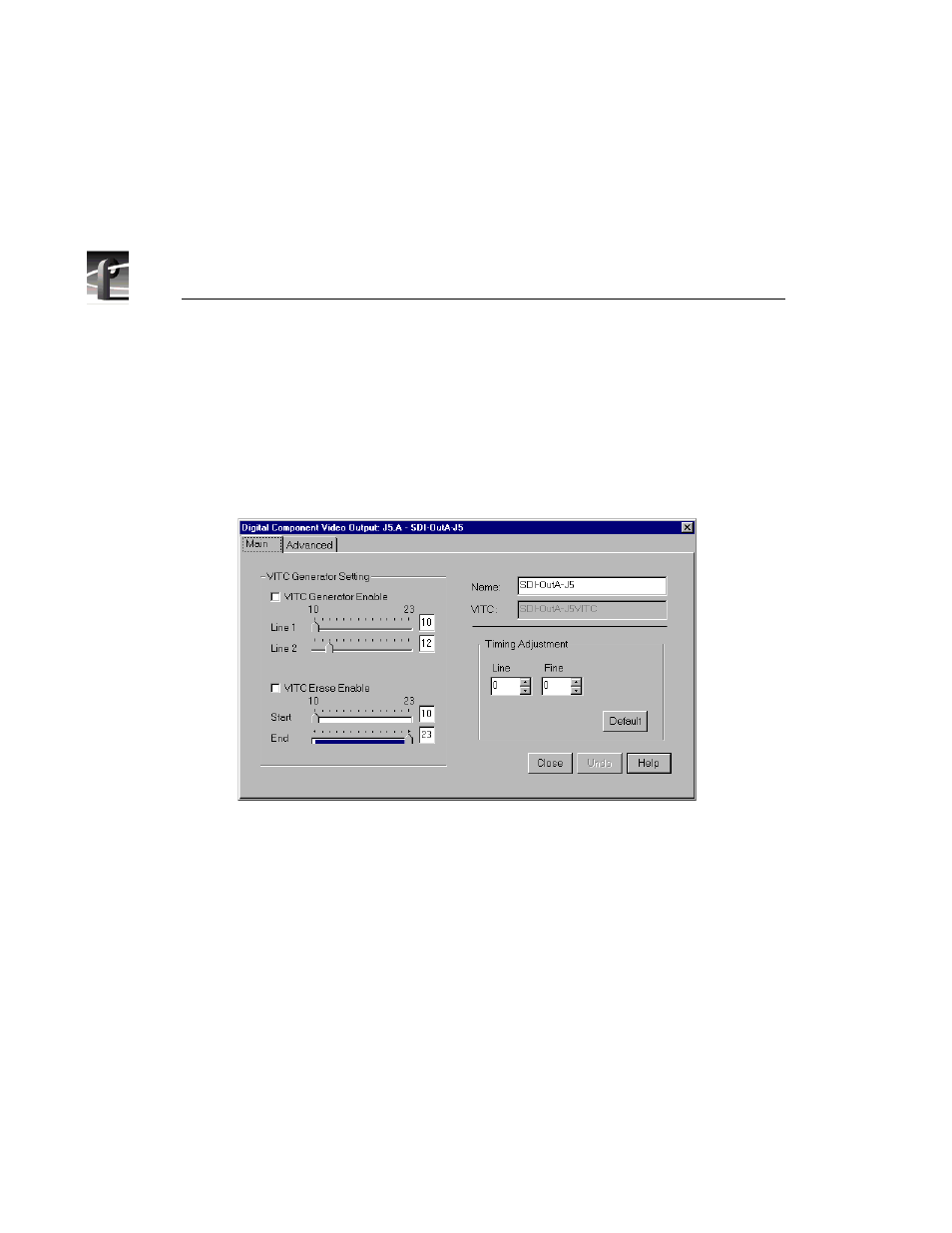

Figure 25. Serial Digital Component Video Output dialog box
2. Enter a new name in the ² Name box to change the signal name. For example,
if the signal named SDI-OutA-J13 is a dedicated signal to a main switcher,
you could rename it to Switcher_1. The VITC name automatically tracks the
signal name. Names can be up to 30 characters, and can include spaces. To
return a renamed signal to the default, delete all the characters in the text
field, and press Enter.
3. Under VITC Generator Setting , you can place VITC (vertical interval
timecode) on specified lines and/or erase lines in the vertical interval.
- If VITC Generator Enable is selected, VITC is placed on the lines given
in VITC Generator Line 1 and 2. If you only want one line, use the same
number for both.
