Grass Valley PROFILE FAMILY v.2.5 - Manual (Page 81)

Analog Audio Output
Profile Family 81
Analog Audio Output
To change the analog audio output signal name:
1. Select Audio Output from the configuration tree, and then click or double-
click an analog audio name from the list.

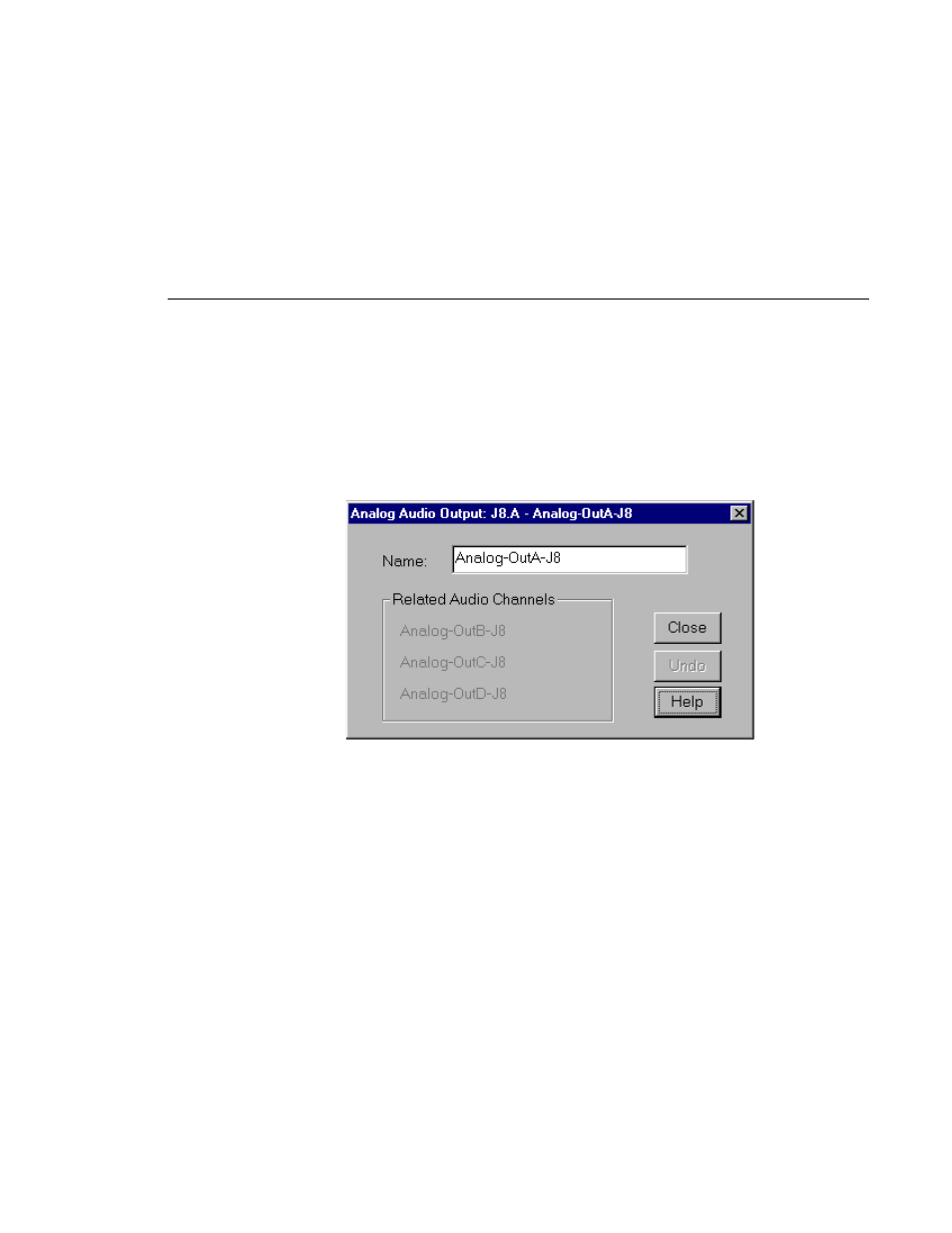

Figure 29. Analog Audio Output dialog box
2. Enter a new name in the Name box to change the signal name—
Audio_Out_1, for example. Names can be up to 30 characters, and can
include spaces. The window title bar name and the configuration tree name
automatically change as you enter the new name. To return a renamed signal
to the default, delete all the characters in the text field, and press Enter.
3. ² Related Audio Channels lists the audio channels that are related to the
signal name.
4. Click Undo to return the signal name to its original name.
5. Click Close .
